23214 (STX-38) - Toro EFI Stump Grinder with Intelli-Sweep (SN: 314000001 - 314999999) (2014) HYDRAULIC MOTOR ASSEMBLY NO. 121-4325 Parts Diagram

EFI Stump Grinder with Intelli-Sweep

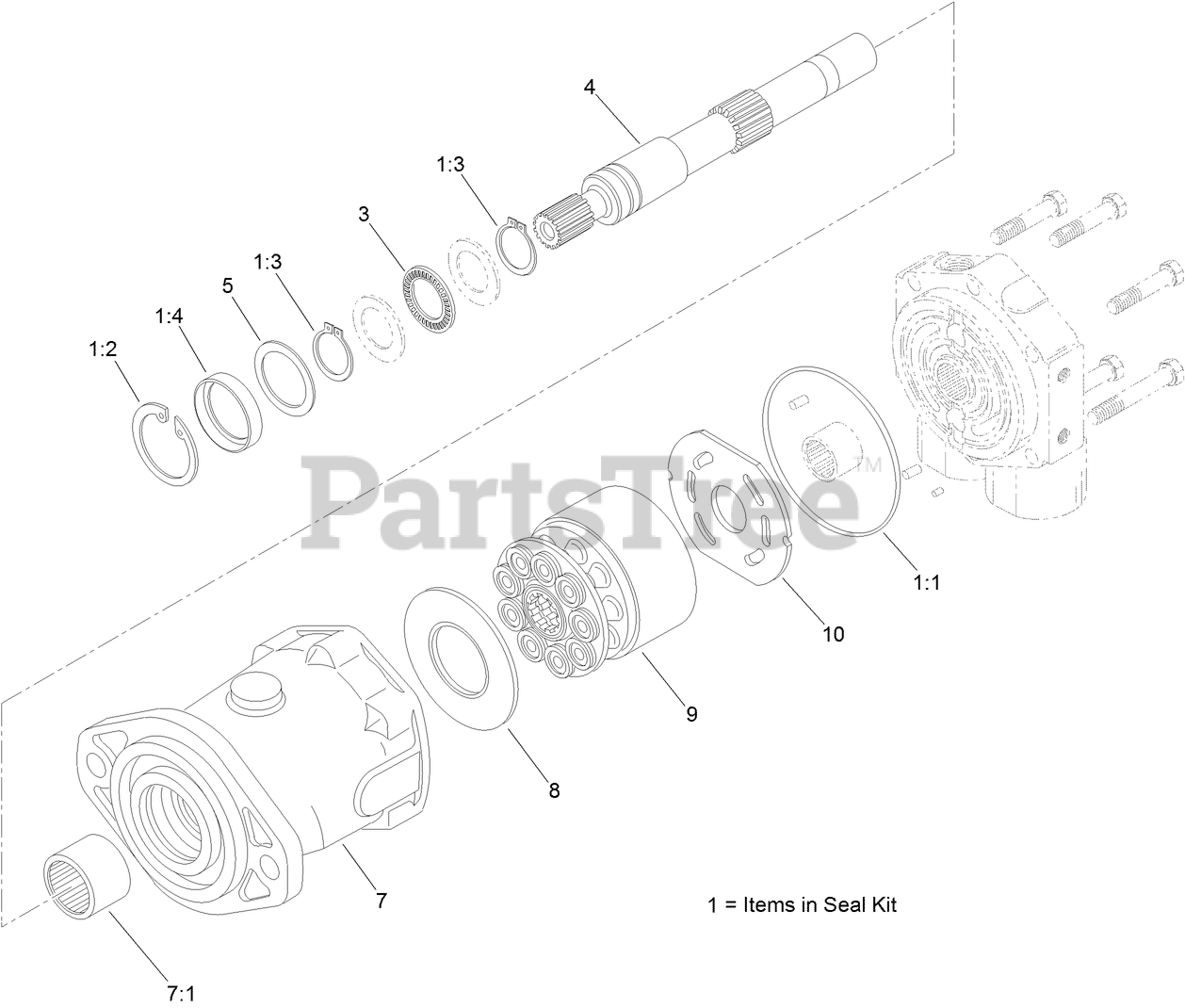

HYDRAULIC MOTOR ASSEMBLY NO. 121-4325 Parts Diagram

  • Title

1

Toro 106-6876

Seal Kit

$70.99

$

Usually ships in 3-6 days

0

1:1

O-RING

Note: Not serviced separately

$

$

Not available

1:2

Toro 76-7010

RING-RETAINING

$5.99

$

Usually ships in 3-6 days

0

1:3

Toro 76-7000

RING-RETAINING

$10.99

$

Usually ships in 3-6 days

0

1:4

SEAL-SHAFT

Note: Not serviced separately

$

$

Not available

3

Toro 76-6960

BEARING-THRUST

$37.99

$

Usually ships in 3-6 days

0

4

Toro 106-6874

SHAFT-DRIVE

$1069.99

$

Usually ships in 3-6 days

0

5

Toro 60-6240

WASHER

$24.99

$

Usually ships in 3-6 days

0

7

Toro 105-2852

HOUSING ASM

$1963.99

$

Usually ships in 3-6 days

0

7:1

BEARING-NEEDLE

Note: Not serviced separately

$

$

Not available

8

Toro 76-6970

INSERT-PLATE, CAM

$229.99

$

Usually ships in 3-6 days

0

9

Toro 106-6875

ROTATING KIT

$3219.99

$

Usually ships in 3-6 days

0

10

Toro 94-3003

PLATE-VALVE

$747.99

$

Usually ships in 3-6 days

0
