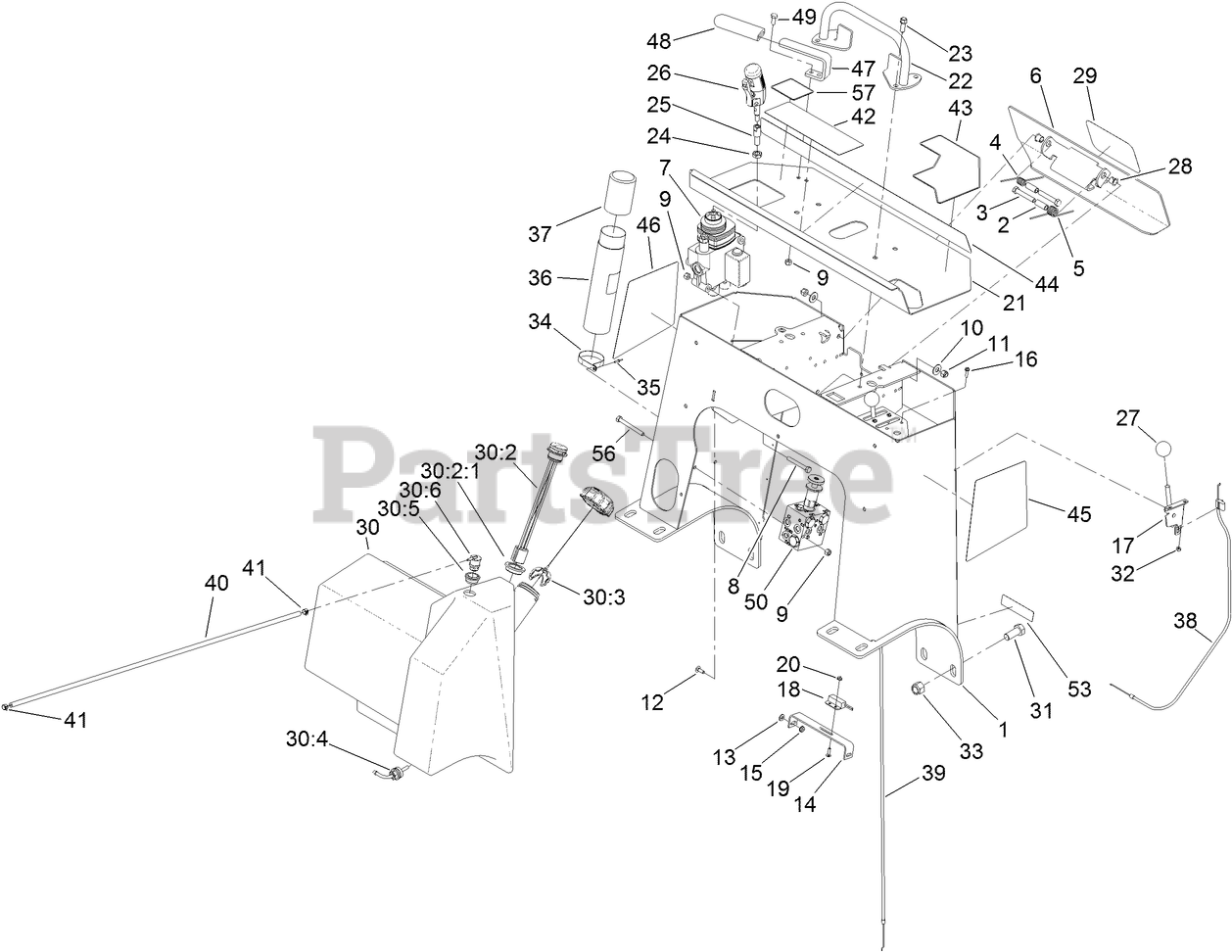

23212 (STX-38) - Toro Stump Grinder (SN: 313000001 - 313999999) (2013) TOWER ASSEMBLY Parts Diagram

Stump Grinder

TOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 121-1150-01

TOWER

$

$

Not available

2

Toro 114-1337

SPACER-SPRING

$7.49

$

Usually ships in 3-6 days

0

3

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 13

0

4

Toro 98-8425

SPRING-TORSION, LH

$32.99

$

Usually ships in 3-6 days

0

5

Toro 98-8424

SPRING-TORSION, RH

$32.99

$

Usually ships in 3-6 days

0

6

Toro 121-1110-03

PLATE-BACKUP

$131.99

$

Usually ships in 3-6 days

0

7

Toro 119-4585

HYD VALVE ASM

$2496.99

$

Usually ships in 3-6 days

0

8

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 9

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

13

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 100-1263

PLATE-SWITCH

$41.99

$

Usually ships in 3-6 days

0

15

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 5

0

16

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, only 2 left!

0

17

Toro 108-9730

LEVER-CONTROL

$44.99

$

In Stock, Qty 7

0

18

Toro 100-1270

SWITCH-PROXIMITY

$122.99

$

Usually ships in 3-6 days

0

19

Toro 3229-20

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

20

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, Qty 20+

0

21

Toro 121-4534

COVER-CONTROL

$

$

Not available

22

Toro 106-7715

BAR-REFERENCE

$220.99

$

Usually ships in 3-6 days

0

23

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

24

Toro 51-2070

NUT

$0.99

$

Usually ships in 3-6 days

0

25

Toro 119-5103

ADAPTER-HANDLE

$47.99

$

Usually ships in 3-6 days

0

26

Toro 119-4587

TWO BUTTON HANDLE GRIP ASM

$736.99

$

Usually ships in 3-6 days

0

27

Toro 233-42

KNOB

$14.99

$

In Stock, Qty 5

0

28

Toro 256-257

BUSHING-NYLINER

$3.99

$

In Stock, Qty 15

0

29

Toro 105-1217

DECAL

$43.99

$

In Stock, Qty 8

0

30

Toro 121-4350

FUEL TANK ASM

$620.99

$

Usually ships in 3-6 days

0

30:2

Toro 117-8362

GUAGE-FUEL

$

$

Currently unavailable

30:2:1

Toro 117-8403

SEAL

$33.99

$

Usually ships in 3-6 days

0

30:3

Toro 115-7788

CAP-FUEL
(Superseded to 137-4127)

$24.99

$

In Stock, Qty 18

0

30:4

Toro 103-2605

FITTING-FUEL, BULKHEAD

$38.99

$

In Stock, only 4 left!

0

30:5

Toro 114-0284

GROMMET

$2.99

$

In Stock, Qty 16

0

30:6

Toro 114-0285

VALVE-ROLLOVER

$19.99

$

In Stock, only 1 left!

0

31

Toro 327-4

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

32

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

33

Toro 3296-53

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 2412-120

CLAMP-R

$8.49

$

Usually ships in 3-6 days

0

35

Toro 3269-17

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

36

Toro 104-7050

TUBE-MANUAL

$9.99

$

Usually ships in 3-6 days

0

37

Toro 104-7048

CAP-HOUSING

$6.49

$

Usually ships in 3-6 days

0

38

Toro 115-1211

CABLE-CONTROL

$29.99

$

In Stock, only 2 left!

0

39

Toro 119-6654

CABLE-THROTTLE

$47.99

$

In Stock, only 2 left!

0

40

Toro 119-3517

HOSE-FUEL

$28.99

$

Usually ships in 3-6 days

0

41

Toro 2412-146

CLAMP-HOSE

$2.49

$

In Stock, Qty 9

0

42

Toro 119-4606

DECAL-WARNING

$29.99

$

Usually ships in 3-6 days

0

43

Toro 121-4381

DECAL-CONSOLE, LH

$43.99

$

Usually ships in 3-6 days

0

44

Toro 121-4382

DECAL-CONSOLE, RH

$39.99

$

In Stock, only 1 left!

0

45

Toro 121-4383

DECAL-LOGO, LH

$30.99

$

Usually ships in 3-6 days

0

46

Toro 121-4384

DECAL-LOGO, RH

$30.99

$

Usually ships in 3-6 days

0

47

Toro 125-3570-03

BAR-ARM REST

$35.99

$

Usually ships in 3-6 days

0

48

Toro 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 8

0

49

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

50

Toro 121-4466

SWEEP MANIFOLD ASM

$1001.99

$

Usually ships in 3-6 days

0

53

Toro 117-2718

DECAL-ARRESTER, SPARK

$8.49

$

In Stock, only 2 left!

0

56

Toro 322-14

SCREW-HH

$2.99

$

In Stock, Qty 8

0

57

Toro 121-4402

DECAL-JOYSTICK

$17.99

$

In Stock, only 1 left!

0
