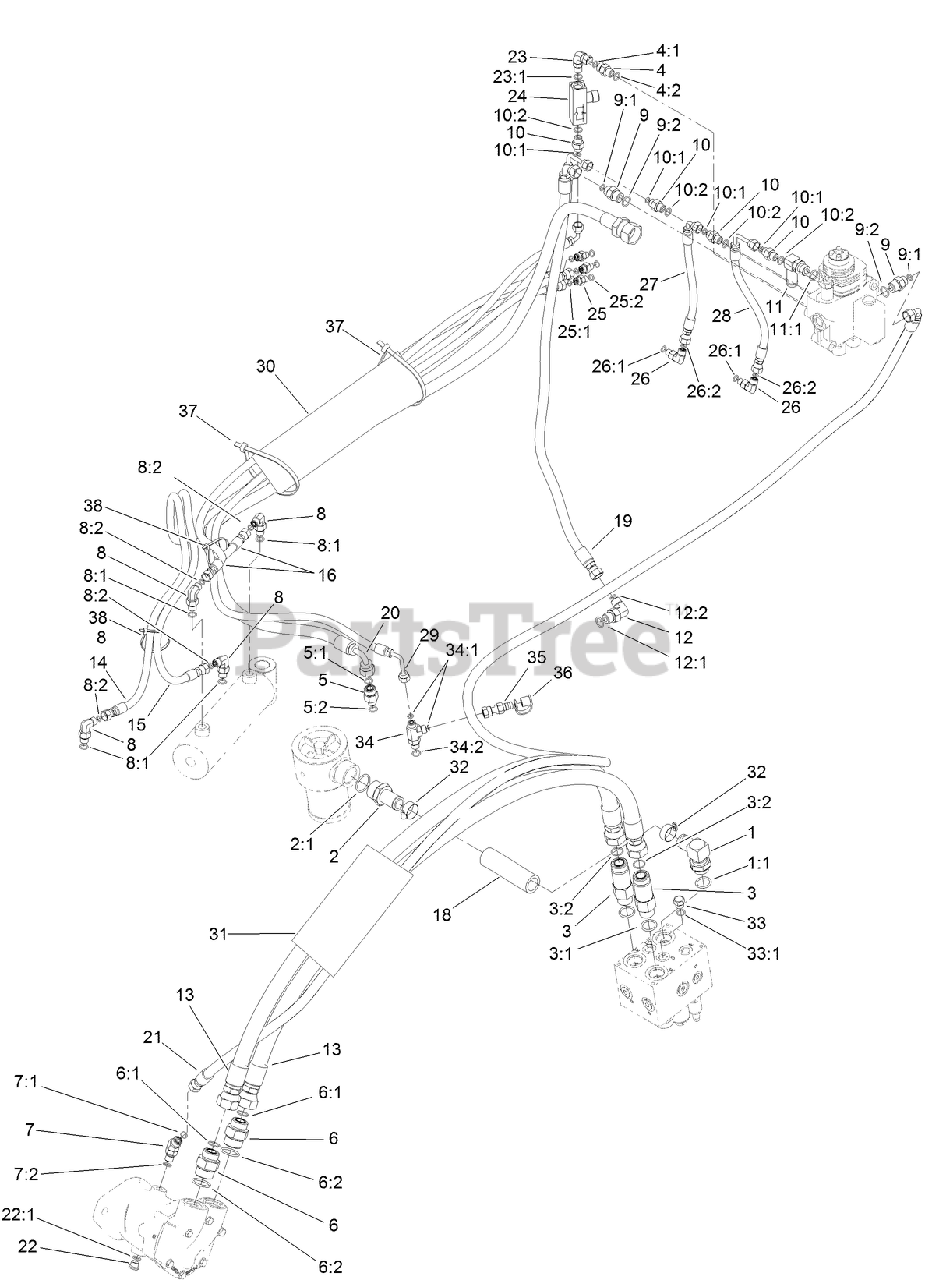

23212 (STX-38) - Toro Stump Grinder (SN: 313000001 - 313999999) (2013) HYDRAULIC ROUTING ASSEMBLY Parts Diagram

Stump Grinder

HYDRAULIC ROUTING ASSEMBLY Parts Diagram

  • Title

1

Toro 100-4202

FITTING-HYD, 90 DEG

$116.99

$

Usually ships in 3-6 days

0

1:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

2

Toro 354-78

FITTING-STR

$59.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

3

Toro 92-6058

FITTING-HYD

$171.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

3:2

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

4

Toro 340-2

FITTING-STRAIGHT

$12.99

$

In Stock, only 2 left!

0

4:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

4:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

5

Toro 340-5

FITTING-STR

$22.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

5:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

6

Toro 340-91

FITTING-STR

$59.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

6:2

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

7

Toro 340-87

FITTING-ELBOW-45

$19.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

7:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

8

Toro 340-82

FITTING-ELBOW 90

$24.99

$

In Stock, only 1 left!

0

8:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

8:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

9

Toro 340-3

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

9:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

9:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 8

0

10

Toro 340-1

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

10:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

11

Toro 353-954

FITTING-ELB 90

$75.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 8

0

12

Toro 340-18

FITTING-HYD, 90 DEG

$41.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 8

0

12:2

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

13

Toro 121-4342

HOSE-HYD

$171.99

$

Usually ships in 3-6 days

0

14

Toro 121-4345

HOSE-HYD

$199.99

$

Usually ships in 3-6 days

0

15

Toro 121-4346

HOSE-HYD

$199.99

$

Usually ships in 3-6 days

0

16

Toro 121-4347

HOSE-HYD

$171.99

$

Usually ships in 3-6 days

0

18

Toro 121-4341

HOSE-RETURN

$

$

Not available

19

Toro 121-1199

HOSE-HYD

$142.99

$

Usually ships in 3-6 days

0

20

Toro 121-4344

HOSE-HYD

$171.99

$

Usually ships in 3-6 days

0

21

Toro 121-4343

HOSE-HYD

$171.99

$

Usually ships in 3-6 days

0

22

Toro 353-989

PLUG-HEX, HOLLOW

$23.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

23

Toro 340-110

FITTING-SWIVEL, 90 DEG

$81.99

$

Usually ships in 3-6 days

0

23:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

24

Toro 98-9742

VALVE-CONTROL, FLOW

$230.99

$

Usually ships in 3-6 days

0

25

Toro 340-92

FITTING-STRAIGHT

$13.99

$

Usually ships in 3-6 days

0

25:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

25:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

26

Toro 340-132

FITTING-90 DEG

$26.99

$

Usually ships in 3-6 days

0

26:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

26:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

27

Toro 121-4455

HOSE-HYD

$114.99

$

Usually ships in 3-6 days

0

28

Toro 121-4456

HOSE-HYD

$114.99

$

Usually ships in 3-6 days

0

29

Toro 119-4601

HOSE-HYD

$207.99

$

Usually ships in 3-6 days

0

30

Toro 121-4454

SLEEVE-PROTECTIVE

$102.99

$

Usually ships in 3-6 days

0

31

Toro 99-5648

SLEEVE-PROTECTIVE

$93.99

$

Usually ships in 3-6 days

0

32

Toro 2412-34

CLAMP-HOSE

$2.49

$

In Stock, Qty 5

0

33

Toro 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

0

33:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

34

Toro 108-5688

FITTING-TEE

$155.99

$

Usually ships in 3-6 days

0

34:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

34:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

35

Toro 115-8886

NIPPLE-TEST

$81.99

$

Usually ships in 3-6 days

0

36

Toro 354-79

CAP-DUST

$9.99

$

Usually ships in 3-6 days

0

37

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

38

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0
