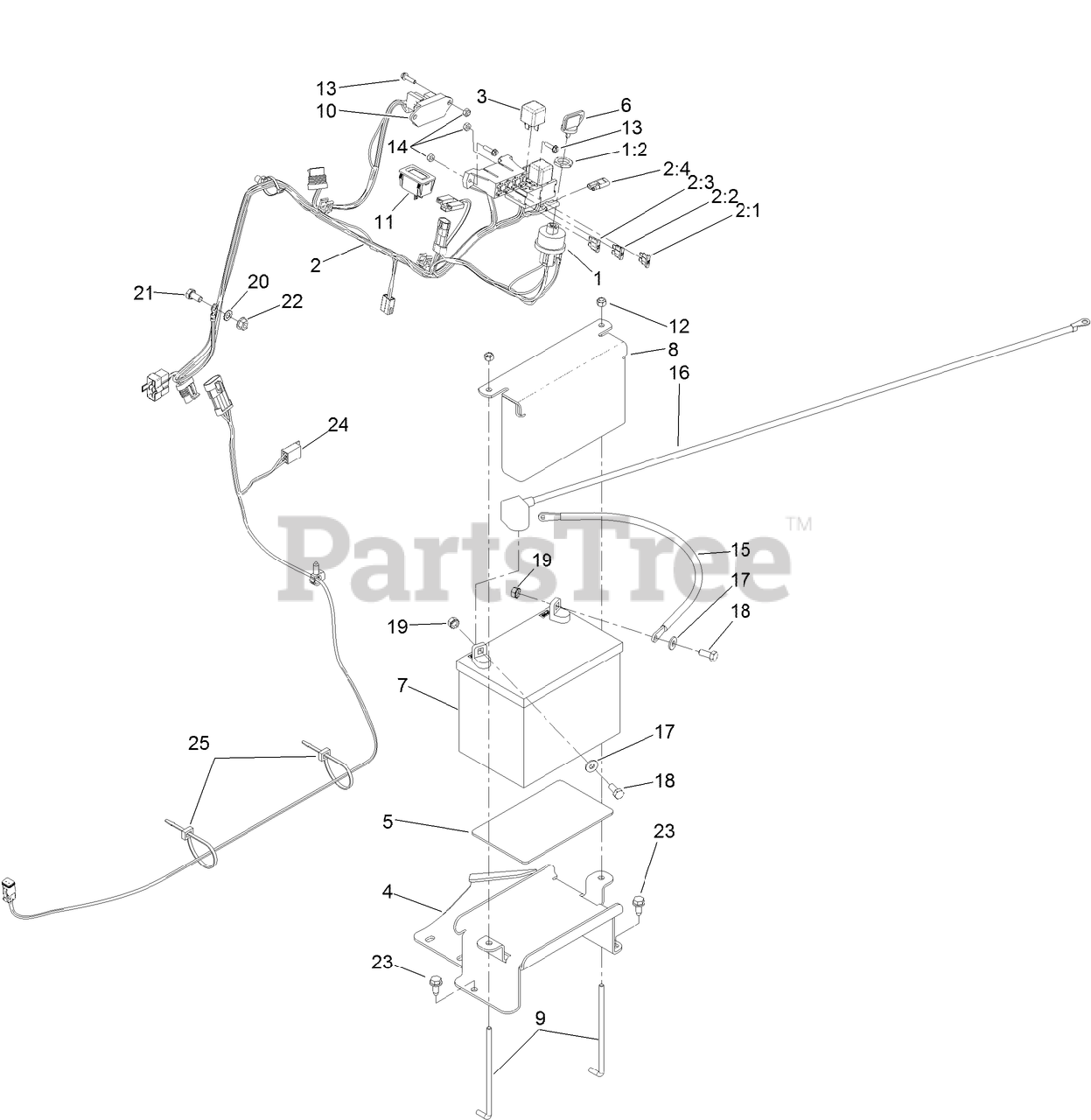

23212 (STX-38) - Toro Stump Grinder (SN: 313000001 - 313999999) (2013) ELECTRICAL ASSEMBLY Parts Diagram

Stump Grinder

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 88-9830

Key Switch ASM
(Superseded to 104-2541)

$39.99

$

In Stock, Qty 7

0

1:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

1:1

Toro 3254-5

WASHER-TOOTH, INTERNAL (Not used in this application)

Note: Not illustrated

$1.49

$

In Stock, only 3 left!

0

2

Toro 121-4315

HARNESS-WIRE

$

$

Not available

2:1

Toro 109103

FUSE-BLADE, 30 AMP

$6.99

$

In Stock, Qty 6

0

2:2

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 8

0

2:3

Toro 109101

FUSE-BLADE, 20 AMP

$2.49

$

In Stock, Qty 6

0

2:4

Toro 116-0053

CAP-PLUG

$39.99

$

Usually ships in 3-6 days

0

3

Toro 98-7249

RELAY

$22.99

$

In Stock, only 3 left!

0

4

Toro 125-0322-01

TRAY-BATTERY

$

$

Not available

5

Toro 62-4300

PAD-SKID, ANTI

$19.99

$

Usually ships in 3-6 days

0

6

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 13

0

7

Toro 104-4657

BATTERY (340 CCA, WET)

$

$

Currently unavailable

8

Toro 115-6621-03

PLATE-HOLD DOWN, BATTERY

$76.99

$

Usually ships in 3-6 days

0

9

Toro 104-8567

HOLDOWN-BATTERY

$28.99

$

Usually ships in 3-6 days

0

10

Toro 100-6170

MODULE-DELAY

$61.99

$

Usually ships in 3-6 days

0

11

Toro 120-2244

HOURMETER

$69.99

$

In Stock, only 1 left!

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

13

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

14

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 106-8945

CABLE-BATTERY, POSITIVE

$42.99

$

Usually ships in 3-6 days

0

16

Toro 121-4437

CABLE-BATTERY, NEGATIVE

$40.99

$

Usually ships in 3-6 days

0

17

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

19

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

20

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

21

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

22

Toro 33004-00

NUT-HF

$0.99

$

In Stock, Qty 11

0

23

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

24

Toro 121-4319

HARNESS-WIRE

$88.99

$

Usually ships in 3-6 days

0

25

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
