23212 (STX-38) - Toro Stump Grinder (SN: 313000001 - 313999999) (2013) CUTTER HEAD ASSEMBLY Parts Diagram

Stump Grinder

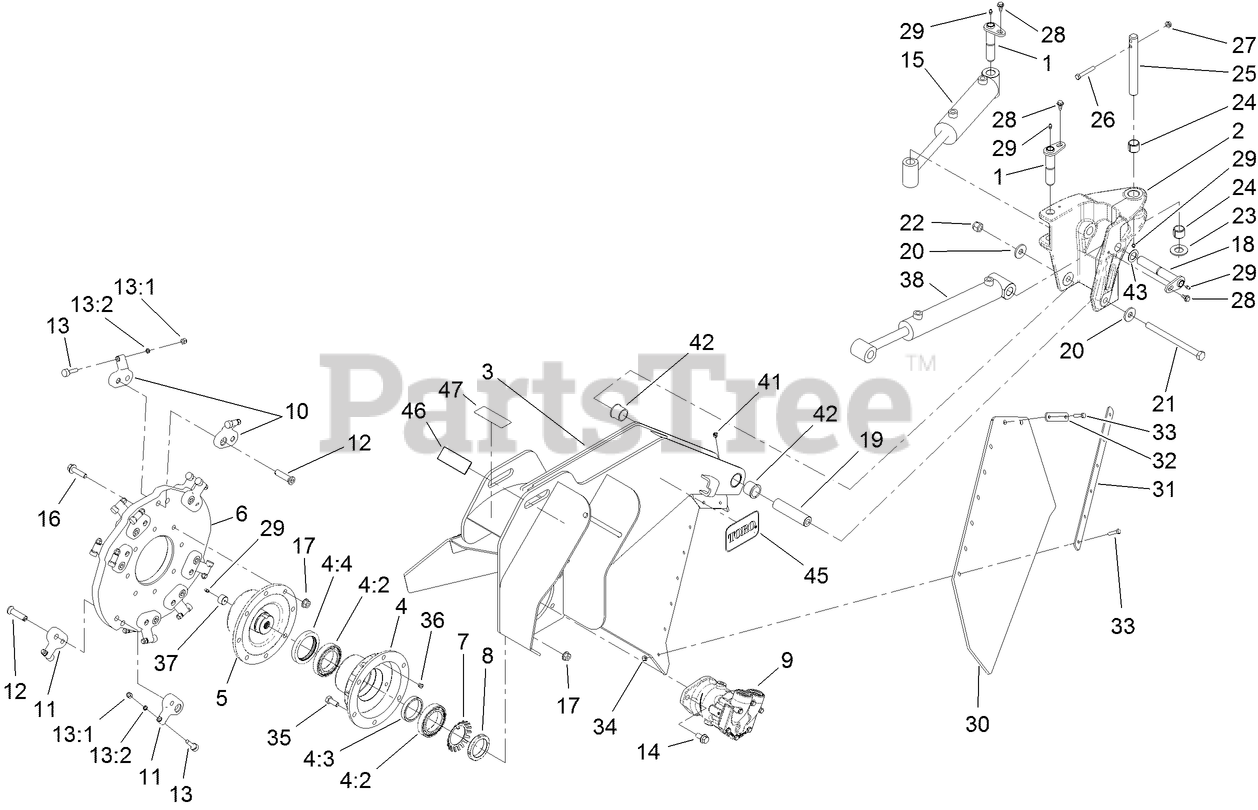

CUTTER HEAD ASSEMBLY Parts Diagram

  • Title

1

Toro 121-1113

PIN-PIVOT

$97.99

$

Usually ships in 3-6 days

0

2

Toro 121-0871-01

HEAD-PIVOT

$

$

Not available

3

Toro 121-4440-01

HEAD-GRINDER

$

$

Currently unavailable

3

Toro 121-4533

HEAD-GRINDER

$2555.99

$

Usually ships in 3-6 days

0

4

Toro 121-4458

WHEEL BEARING HOUSING ASM

$886.99

$

Usually ships in 3-6 days

0

4:2

Toro 121-4378

BEARING-BALL

$71.99

$

Usually ships in 3-6 days

0

4:3

Toro 121-0872

SPACER-BEARING

$71.99

$

Usually ships in 3-6 days

0

4:4

Toro 121-4379

SEAL-GREASE

$156.99

$

Usually ships in 3-6 days

0

5

Toro 121-4337

SHAFT-CUTTER

$

$

Currently unavailable

6

Toro 121-1012-03

PLATE-WHEEL, CUTTER

$797.99

$

Usually ships in 3-6 days

0

7

Toro 104-5915

WASHER-LOCK, BEARING

$64.99

$

Usually ships in 3-6 days

0

8

Toro 104-1973

NUT-LOCK, BEARING

$83.99

$

Usually ships in 3-6 days

0

9

Toro 121-4325

HYD MOTOR ASM

$2510.99

$

Usually ships in 3-6 days

0

10

Toro 115-9384

POCKET-ANGLED

$58.99

$

In Stock, only 3 left!

0

11

Toro 115-9388

POCKET-STRAIGHT

$58.99

$

In Stock, only 1 left!

0

12

Toro 121-4318

BOLT-HSH

$14.99

$

Usually ships in 3-6 days

0

13

Toro 115-9385

GRINDER TOOTH ASM

$23.99

$

In Stock, Qty 20+

0

13:1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13:2

Toro 121-4365

SPACER-TOOTH

$1.99

$

In Stock, Qty 14

0

14

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

15

Toro 121-1956

HYD CYLINDER ASM
(Superseded to 137-8829)

$860.99

$

Usually ships in 3-6 days

0

16

Toro 3234-27

SCREW-HHF

$7.49

$

Usually ships in 3-6 days

0

17

Toro 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

18

Toro 121-0860

PIN-PIVOT

$126.99

$

Usually ships in 3-6 days

0

19

Toro 121-1101

SPACER-PIVOT

$79.99

$

Usually ships in 3-6 days

0

20

Toro 104-9216

WASHER-HARDENED

$6.99

$

In Stock, only 2 left!

0

21

Toro 117-6327

BOLT-HH

$47.99

$

In Stock, only 1 left!

0

22

Toro 3296-53

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 256-121

WASHER-THRUST

$5.99

$

Usually ships in 3-6 days

0

24

Toro 98-4871

BUSHING-TENSION

$23.99

$

In Stock, only 1 left!

0

25

Toro 121-1112

PIN-PIVOT, GRINDER

$73.99

$

Usually ships in 3-6 days

0

26

Toro 323-47

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

27

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

28

Toro 99-5105

BOLT-SHOULDER

$6.49

$

In Stock, Qty 20+

0

29

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

30

Toro 121-4449

SHIELD-RUBBER

$175.99

$

Usually ships in 3-6 days

0

31

Toro 121-4332-03

STRAP-RETAINER

$25.99

$

Usually ships in 3-6 days

0

32

Toro 121-4333-03

STRAP-RETAINER

$8.49

$

Usually ships in 3-6 days

0

33

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

34

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

35

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

36

Toro 302-34

FITTING-LUBE

$11.99

$

Usually ships in 3-6 days

0

37

Toro 121-0875

PLUG-SHAFT, CUTTER

$52.99

$

Usually ships in 3-6 days

0

38

Toro 121-1955

HYD CYLINDER ASM

$974.99

$

Usually ships in 3-6 days

0

41

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0

42

Toro 104-0015

BUSHING-FLANGE

$6.99

$

Usually ships in 3-6 days

0

43

Toro 75-9180

WASHER-RUBBER

$6.49

$

In Stock, only 2 left!

0

45

Toro 104-3989

DECAL

$60.99

$

In Stock, only 4 left!

0

46

Toro 93-7321

DECAL-DANGER

$29.99

$

Usually ships in 3-6 days

0

47

Toro 107-9366

DECAL-WARNING

$35.99

$

Usually ships in 3-6 days

0
