23210 (STX-26) - Toro Stump Grinder (SN: 313000001 - 313000138) (2013) MAIN FRAME ASSEMBLY Parts Diagram

Stump Grinder

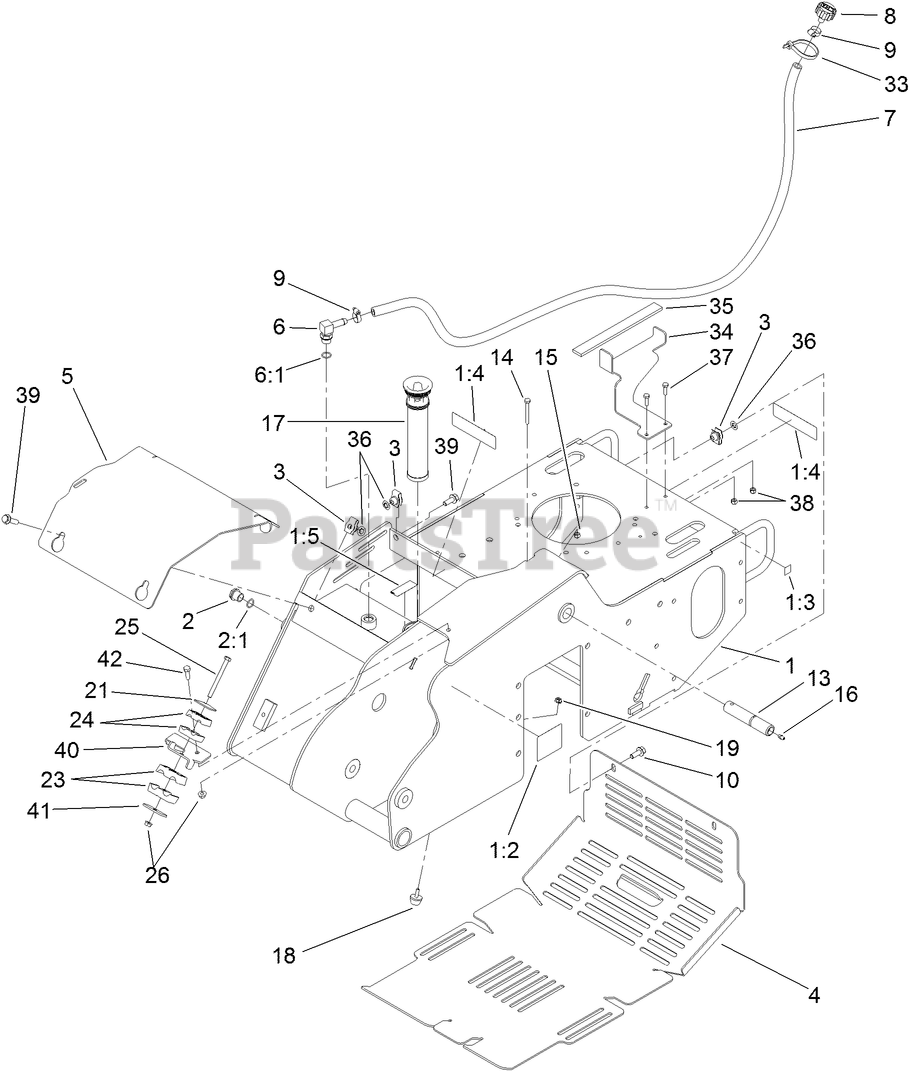

MAIN FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 114-8630

MAIN FRAME ASM

$4990.99

$

Usually ships in 3-6 days

0

1:2

Toro 100-4650

DECAL-WARNING

$26.99

$

Usually ships in 3-6 days

0

1:3

Toro 93-9084

DECAL-POINT, LIFT

$9.49

$

Usually ships in 3-6 days

0

1:4

Toro 93-7814

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

1:5

Toro 93-6686

DECAL-OIL, HYD

$8.99

$

Usually ships in 3-6 days

0

2

Toro 114-3075

SIGHT GLASS ASM

$28.99

$

In Stock, only 1 left!

0

2:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

3

Toro 112-4576

NUT-CLIP, U
(Superseded to 105-4886)

$3.49

$

Usually ships in 3-6 days

0

4

Toro 119-5106-01

COVER-REAR

$470.99

$

Usually ships in 3-6 days

0

5

Toro 119-4566-03

PLATE-COVER, FRONT

$129.99

$

Usually ships in 3-6 days

0

6

Toro 354-120

FITTING-ELB 90

$33.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

7

Toro 114-3042

HOSE-BREATHER

$53.99

$

Usually ships in 3-6 days

0

8

Toro 68-6150

BREATHER

$28.99

$

In Stock, only 1 left!

0

9

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

10

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

13

Toro 120-7352

PIN-PIVOT

$86.99

$

In Stock, only 1 left!

0

14

Toro 321-18

SCREW-HH

$2.49

$

In Stock, only 3 left!

0

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

16

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

17

Toro 114-3039

IN-TANK FILTER ASM

$252.99

$

In Stock, only 1 left!

0

18

Toro 1-523420

BUMPER

$14.99

$

Usually ships in 3-6 days

0

19

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

21

Toro 69-9760

COVERPLATE

$7.49

$

Usually ships in 3-6 days

0

23

Toro 94-8105

CLAMP-TUBE

$6.99

$

In Stock, only 1 left!

0

24

Toro 56-7976

CLAMP-TUBE

$2.99

$

Usually ships in 3-6 days

0

25

Toro 322-22

SCREW-HH
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

26

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

33

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

34

Toro 119-5091-01

BRACKET-TANK

$51.99

$

Usually ships in 3-6 days

0

35

Toro 117-6417

PAD-FOAM

$9.49

$

Usually ships in 3-6 days

0

36

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 6

0

37

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

39

Toro 3234-18

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

40

Toro 119-4634-01

BRACKET-CLAMP

$38.99

$

Usually ships in 3-6 days

0

41

Toro 119-4636

PLATE-CLAMP

$13.99

$

In Stock, only 1 left!

0

42

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
