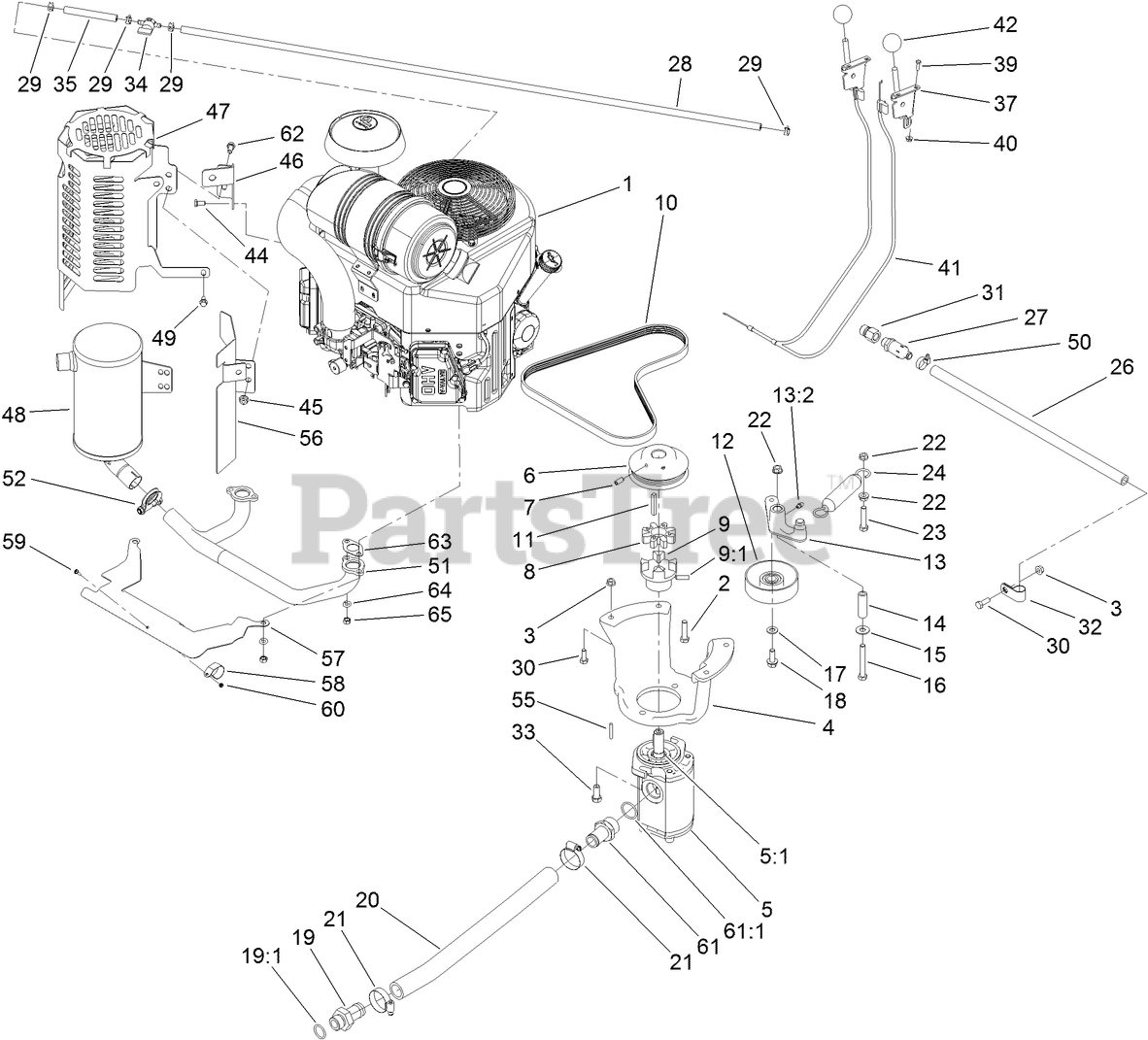

23210 (STX-26) - Toro Stump Grinder (SN: 311000001 - 311999999) (2011) ENGINE ASSEMBLY Parts Diagram

Stump Grinder

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 117-6305

ENGINE-KAWASAKI, FX730V
(Superseded to 133-8077)

$

$

Not available

2

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

4

Toro 115-1480-03

MOUNT-PUMP

$225.99

$

Usually ships in 3-6 days

0

5

Toro 117-6444

GEAR PUMP ASM

$1624.99

$

Usually ships in 3-6 days

0

5:1

Toro 115-4045

SEAL-WIPER

$29.99

$

Usually ships in 3-6 days

0

6

Toro 114-8559-03

PULLEY-ENGINE
(Superseded to 145-3291)

$59.99

$

Usually ships in 0 days

0

7

Toro 3246-6

SCREW-SET, HSH

$7.49

$

In Stock, only 2 left!

0

8

Toro 93-8827

COUPLER-SPIDER

$48.99

$

Usually ships in 3-6 days

0

9

Toro 114-2933

COUPLER-FLEX

$123.99

$

Usually ships in 3-6 days

0

9:1

Toro 100-7594

SCREW-SET

$2.99

$

Usually ships in 3-6 days

0

10

Toro 114-2991

BELT-V

$60.99

$

In Stock, only 1 left!

0

11

Toro 608006

KEY-SQUARE

$5.49

$

Usually ships in 3-6 days

0

12

Toro 95-8802

PULLEY-IDLER

$77.99

$

Usually ships in 3-6 days

0

13

Toro 117-6323

IDLER ARM ASM

$149.99

$

Usually ships in 3-6 days

0

13:2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

14

Toro 114-2916

BUSHING-IDLER

$29.99

$

In Stock, only 1 left!

0

15

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

16

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 15

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

18

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

19

Toro 99-3017

FITTING

$91.99

$

In Stock, only 1 left!

0

19:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

20

Toro 114-2917

HOSE-SUCTION

$96.99

$

In Stock, only 1 left!

0

21

$4.99

$

Usually ships in 3-6 days

0

22

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 66-4270

Spring-Extension

$43.99

$

Usually ships in 3-6 days

0

26

Toro 99-1356

HOSE-VENT
(Superseded to 98-2708)

$54.99

$

Usually ships in 3-6 days

0

27

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 1 left!

0

28

Toro 110-3372

HOSE-FUEL

$37.99

$

Usually ships in 3-6 days

0

29

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

30

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

31

Toro 103-1966

Adapter

$18.99

$

In Stock, only 1 left!

0

32

Toro 2412-81

CLAMP-R

$4.49

$

Usually ships in 3-6 days

0

33

Toro 324-4

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

34

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

35

Toro 109-0295

HOSE-FUEL

$3.49

$

Usually ships in 3-6 days

0

37

Toro 108-9730

LEVER-CONTROL

$42.99

$

In Stock, only 1 left!

0

39

$0.99

$

In Stock, Qty 10

0

40

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

41

Toro 115-1211

CABLE-CONTROL

$27.99

$

In Stock, only 1 left!

0

42

$13.99

$

In Stock, only 4 left!

0

44

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

45

Toro 112-2844

NUT-HF

$1.49

$

In Stock, Qty 9

0

46

Toro 115-9233-03

BRACKET-MOUNT, MUFFLER

$23.99

$

Usually ships in 3-6 days

0

47

Toro 115-9234-03

SHIELD-MUFFLER

$277.99

$

Usually ships in 3-6 days

0

48

Toro 117-6319

MUFFLER

$451.99

$

Usually ships in 3-6 days

0

49

Toro 33103-016

SCREW-HHF

$5.99

$

In Stock, Qty 13

0

50

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

51

Toro 117-6318

MANIFOLD

$277.99

$

Usually ships in 3-6 days

0

52

Toro 2112-11

CLAMP-MUFFLER

$7.99

$

Usually ships in 3-6 days

0

55

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

56

Toro 117-6337

BRACKET-SHIELD, HEAT

$100.99

$

Usually ships in 3-6 days

0

57

Toro 115-9227

PLATE-SHIELD, HEAT

$101.99

$

Usually ships in 3-6 days

0

58

$5.49

$

Usually ships in 3-6 days

0

59

Toro 115-6494

SCREW-PAN

$1.49

$

Usually ships in 3-6 days

0

60

Toro 115-6495

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

61

Toro 354-78

FITTING-STR

$59.99

$

Usually ships in 3-6 days

0

61:1

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

62

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

63

Toro 117-8858

GASKET-MUFFLER

$4.49

$

Usually ships in 3-6 days

0

64

Toro 115-6496

WASHER-SPRING
(Superseded to 114-3550)

$1.49

$

In Stock, Qty 6

0

65

Toro 115-6611

NUT-HEX

$4.49

$

Usually ships in 3-6 days

0
