23210 G (STX-26) - Toro Stump Grinder (SN: 313000113 - 313999999) (2013) TRACTION CONTROL ASSEMBLY Parts Diagram

Stump Grinder

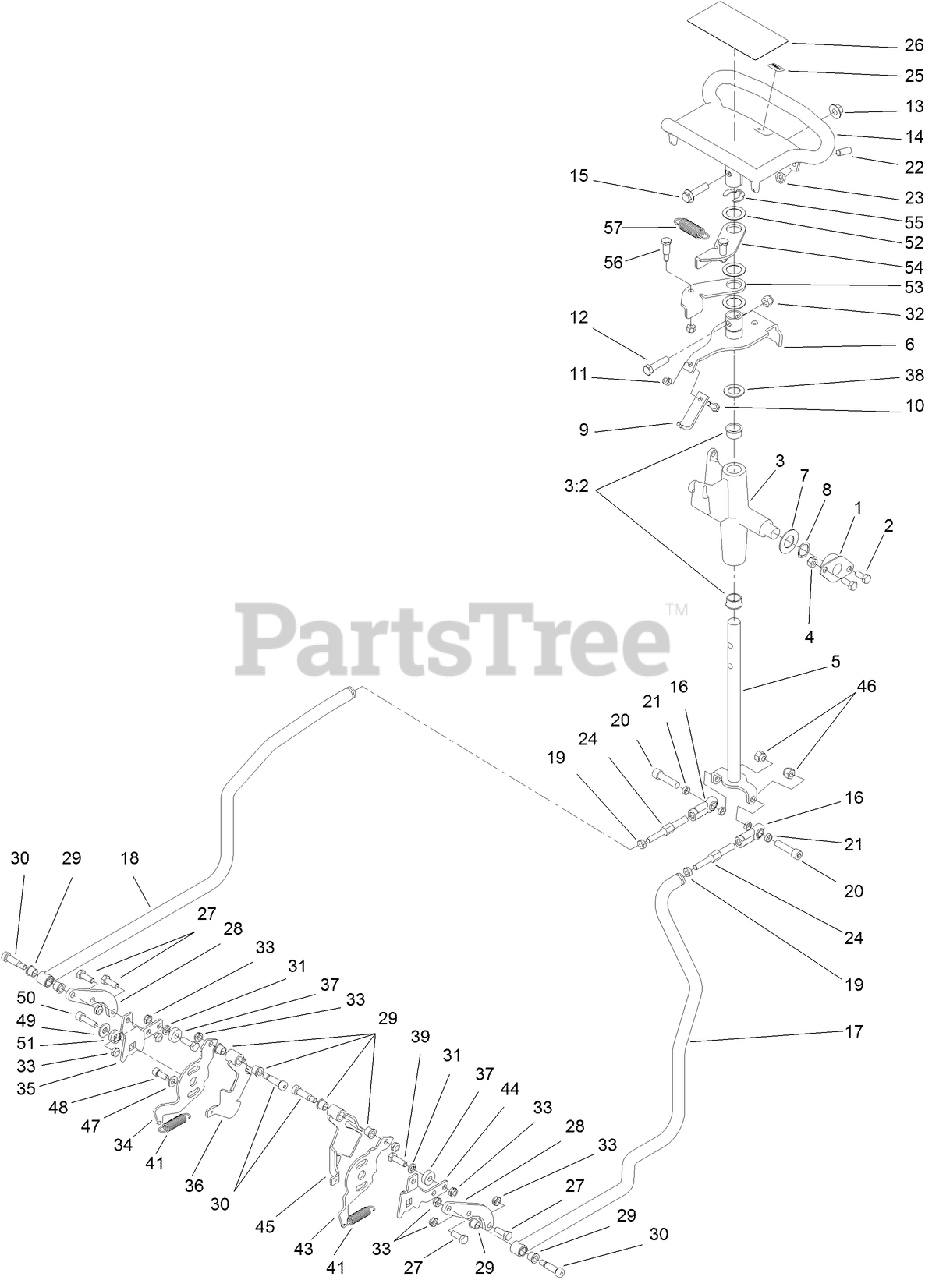

TRACTION CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 68-2970

BUSHING

$28.99

$

Usually ships in 3-6 days

0

2

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 106-5737

CONTROL SUPPORT ASM

$227.99

$

Usually ships in 3-6 days

0

3:2

Toro 256-252

BEARING-FLANGE

$6.49

$

Usually ships in 3-6 days

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

5

Toro 117-6335

ROD-DRIVE

$78.99

$

Usually ships in 3-6 days

0

6

Toro 112-2783

LEVER-PIVOT

$165.99

$

Usually ships in 3-6 days

0

7

Toro 3256-39

WASHER-FLAT

$1.49

$

In Stock, only 3 left!

0

8

Toro 95-3703

WASHER-SPRING, WAVE

$4.49

$

Usually ships in 3-6 days

0

9

Toro 115-1204

PLATE-NEUTRAL

$24.99

$

Usually ships in 3-6 days

0

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

14

Toro 120-5380-03

HANDLE-CONTROL

$261.99

$

In Stock, only 1 left!

0

15

Toro 3234-18

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

16

Toro 103-1167

JOINT-BALL END, LH

$31.99

$

In Stock, Qty 10

0

17

Toro 119-5096

ROD-CONTROL,

$173.99

$

Usually ships in 3-6 days

0

18

Toro 119-5097

ROD-CONTROL, RH

$173.99

$

Usually ships in 3-6 days

0

19

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

20

Toro 3274-2

SCREW-HSH

$3.49

$

Usually ships in 3-6 days

0

21

Toro 108-0634

SPACER-PLATE, RETAINING

$8.99

$

Usually ships in 3-6 days

0

22

Toro 3247-6

SCREW-SET

$1.49

$

Usually ships in 3-6 days

0

23

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

24

Toro 117-6334

LINK-CONTROL, ADJUSTMENT

$67.99

$

In Stock, only 1 left!

0

25

Toro 98-1459

DECAL

$4.99

$

Usually ships in 3-6 days

0

26

Toro 115-4020

DECAL-TRACTION

$28.99

$

Usually ships in 3-6 days

0

27

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 115-1290

PLATE-ADAPTER, CONTROL, RH

$24.99

$

Usually ships in 3-6 days

0

29

Toro 256-116

BUSHING-FLANGE

$4.49

$

In Stock, Qty 9

0

30

Toro 114-8629

BOLT-SHOULDER

$19.99

$

In Stock, only 1 left!

0

31

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

32

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

33

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

34

Toro 115-6535

PLATE-BASE, RH

$30.99

$

Usually ships in 3-6 days

0

35

Toro 115-6536

PLATE-ARM, RETURN

$29.99

$

Usually ships in 3-6 days

0

36

Toro 115-6636

PIVOT-RH

$84.99

$

Usually ships in 3-6 days

0

37

Toro 251-259

BEARING-BALL

$16.99

$

In Stock, only 4 left!

0

38

Toro 257-8

WASHER-THRUST

$5.49

$

Usually ships in 3-6 days

0

39

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

41

Toro 121-4409

SPRING-EXTENSION

$8.99

$

In Stock, Qty 5

0

43

Toro 115-6549

PLATE-BASE, LH

$30.99

$

Usually ships in 3-6 days

0

44

Toro 115-6628

PLATE-ARM, RETURN, LH

$29.99

$

Usually ships in 3-6 days

0

45

Toro 115-6637

PIVOT-LH

$84.99

$

Usually ships in 3-6 days

0

46

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

47

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

48

Toro 3273-14

SCREW-HSH

$1.49

$

Usually ships in 3-6 days

0

49

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

50

Toro 94-3559

SCREW-HSH

$8.49

$

Usually ships in 3-6 days

0

51

Toro 117-6429

LOCK-TRUNION

$4.99

$

Usually ships in 3-6 days

0

52

Toro 108-9743

WASHER-PLAIN

$4.49

$

Usually ships in 3-6 days

0

53

Toro 98-8407

LEVER-RETURN, RH

$73.99

$

Usually ships in 3-6 days

0

54

Toro 98-8408

LEVER-RETURN, LH

$84.99

$

Usually ships in 3-6 days

0

55

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

56

Toro 63-2650

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

57

Toro 108-4724

SPRING-EXTENSION

$13.99

$

In Stock, only 2 left!

0
