23208 (STX-26) - Toro Stump Grinder (SN: 314000001 - 314999999) (2014) FRAME AND CUTTER WHEEL ASSEMBLY Parts Diagram

Stump Grinder

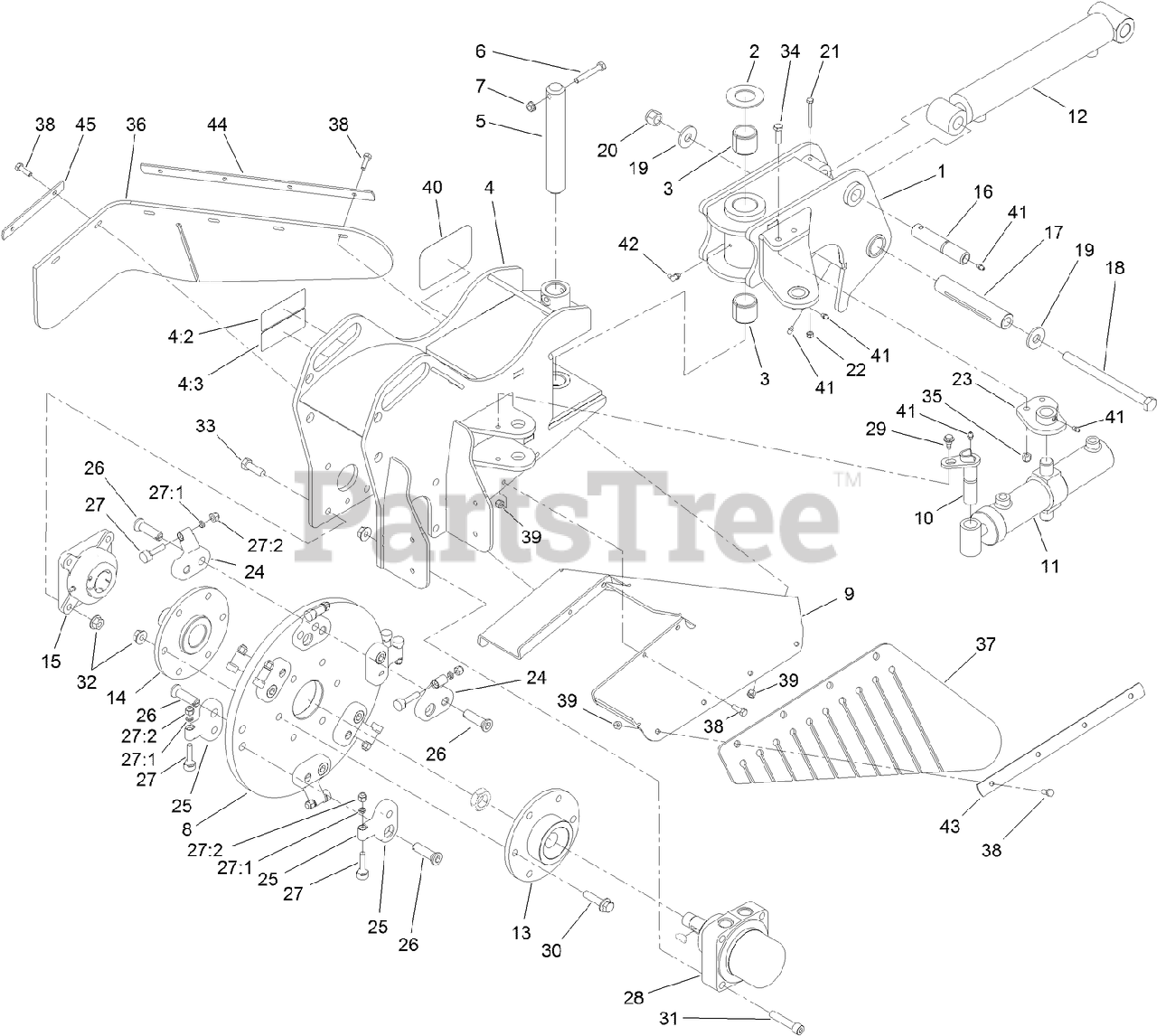

FRAME AND CUTTER WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 117-6390-01

PIVOT

$1382.99

$

Usually ships in 3-6 days

0

2

Toro 99-2707

WASHER

$24.99

$

Usually ships in 3-6 days

0

3

Toro 99-2713

BUSHING-TENSION

$85.99

$

Usually ships in 3-6 days

0

4

Toro 119-4612

FRAME ASM

$1286.99

$

Usually ships in 3-6 days

0

4:2

Toro 107-9366

DECAL-WARNING

$35.99

$

Usually ships in 3-6 days

0

4:3

Toro 93-7321

DECAL-DANGER

$29.99

$

Usually ships in 3-6 days

0

5

Toro 117-6445

PIN-PIVOT

$129.99

$

Usually ships in 3-6 days

0

6

Toro 323-47

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

7

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

8

Toro 119-5050-03

WHEEL-CUTTER

$649.99

$

Usually ships in 3-6 days

0

9

Toro 119-5064-03

GUARD-CHIP

$224.99

$

Usually ships in 3-6 days

0

10

Toro 94-9797

PIN-PIVOT

$173.99

$

Usually ships in 3-6 days

0

11

Toro 117-6441

HYD CYLINDER ASM

$1491.99

$

Usually ships in 3-6 days

0

12

Toro 121-1955

HYD CYLINDER ASM

$974.99

$

Usually ships in 3-6 days

0

13

Toro 119-4570-03

HUB-DRIVE

$292.99

$

Usually ships in 3-6 days

0

14

Toro 115-9395-03

SHAFT-STUB

$292.99

$

Usually ships in 3-6 days

0

15

Toro 104-2026

BEARING

$554.99

$

Usually ships in 3-6 days

0

16

Toro 120-7352

PIN-PIVOT

$86.99

$

In Stock, only 1 left!

0

17

Toro 121-4571

SPACER-PIVOT

$257.99

$

Usually ships in 3-6 days

0

18

Toro 117-6327

BOLT-HH

$47.99

$

In Stock, only 1 left!

0

19

Toro 104-9216

WASHER-HARDENED

$6.99

$

In Stock, only 2 left!

0

20

Toro 3296-53

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 321-18

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

22

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

23

Toro 115-9392-01

MOUNT-CYLINDER

$93.99

$

Usually ships in 3-6 days

0

24

Toro 115-9384

POCKET-ANGLED

$58.99

$

In Stock, only 3 left!

0

25

Toro 115-9388

POCKET-STRAIGHT

$58.99

$

In Stock, only 3 left!

0

26

Toro 115-9386

BOLT-HSH, RH

$18.99

$

In Stock, Qty 10

0

27

Toro 115-9385

GRINDER TOOTH ASM

$23.99

$

In Stock, Qty 20+

0

27:1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

27:2

Toro 121-4365

SPACER-TOOTH

$1.99

$

In Stock, Qty 14

0

28

Toro 127-9603

HYD MOTOR ASM

$1461.99

$

Usually ships in 3-6 days

0

29

Toro 99-5105

BOLT-SHOULDER

$6.49

$

In Stock, Qty 20+

0

30

Toro 3234-27

SCREW-HHF

$7.49

$

Usually ships in 3-6 days

0

31

Toro 3274-71

SCREW-HSH

$13.99

$

Usually ships in 3-6 days

0

32

Toro 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

33

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

34

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

35

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

36

Toro 119-5060

SHIELD-RUBBER, RH

$146.99

$

Usually ships in 3-6 days

0

37

Toro 119-5061

SHIELD-RUBBER, LH

$120.99

$

Usually ships in 3-6 days

0

38

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

40

Toro 104-3989

DECAL

$60.99

$

In Stock, only 4 left!

0

41

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

42

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

43

Toro 119-5118-03

STRAP-RETAINER, LH

$16.99

$

Usually ships in 3-6 days

0

44

Toro 119-5119-03

STRAP-RETAINER, REAR

$17.99

$

Usually ships in 3-6 days

0

45

Toro 119-5120-03

STRAP-RETAINER, RH

$16.99

$

Usually ships in 3-6 days

0
