23208 G (STX-26) - Toro Stump Grinder (SN: 405300000 - 410479999) Frame Assembly Parts Diagram

Stump Grinder

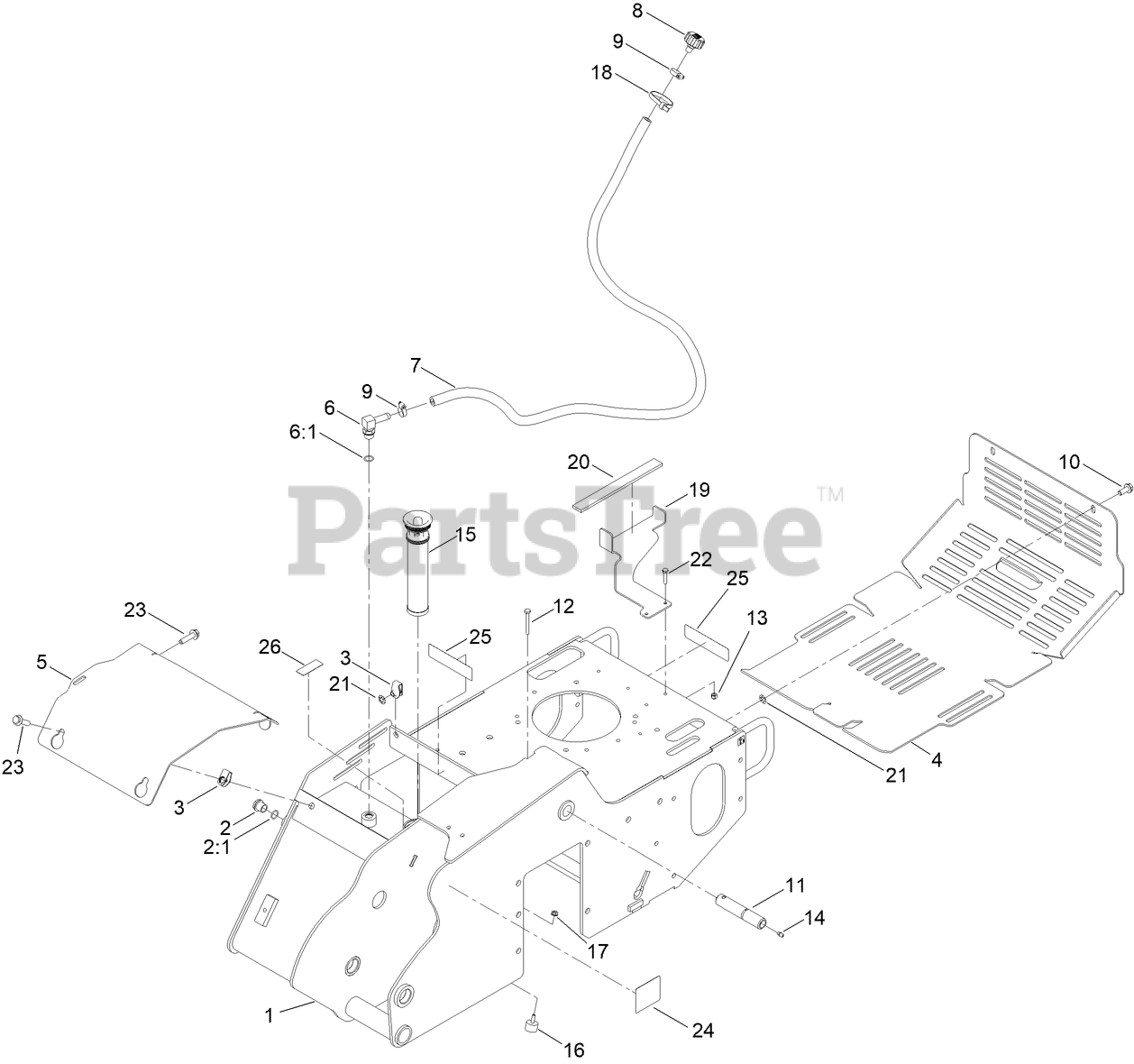

Frame Assembly Parts Diagram

  • Title
1

Toro 127-9600-07

MAIN FRAME ASM, [505-164]

$

$

Currently unavailable

2

Toro 114-3075

SIGHT GLASS ASM

$28.99

$

In Stock, only 1 left!

0

2:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

3

Toro 140-1146

NUT-CLIP, U

$10.99

$

Usually ships in 3-6 days

0

4

Toro 119-5106-07

COVER-REAR

$

$

Currently unavailable

5

Toro 119-4566-03

PLATE-COVER, FRONT

$126.99

$

Usually ships in 3-6 days

0

6

Toro 354-120

FITTING-ELBOW, 90

$33.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

7

Toro 114-3042

HOSE-BREATHER

$53.99

$

Usually ships in 3-6 days

0

8

Toro 68-6150

BREATHER

$27.99

$

In Stock, only 1 left!

0

9

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

10

Toro 108-1531

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

11

Toro 120-7352

PIN-PIVOT

$83.99

$

In Stock, only 1 left!

0

12

Toro 321-18

SCREW-HH

$2.49

$

In Stock, only 3 left!

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

15

Toro 114-3039

IN-TANK FILTER ASM

$245.99

$

In Stock, only 1 left!

0

16

Toro 1-523420

BUMPER

$14.99

$

Usually ships in 3-6 days

0

17

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

18

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

19

Toro 119-5091-07

BRACKET-TANK

$

$

Currently unavailable

20

Toro 117-6417

PAD-FOAM

$9.49

$

Usually ships in 3-6 days

0

21

Toro 140-1144

NUT-PUSH

$0.99

$

Usually ships in 3-6 days

0

22

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 10

0

23

Toro 33105-040

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

24

Toro 100-4650

DECAL-WARNING

$25.99

$

Usually ships in 3-6 days

0

25

Toro 93-7814

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

26

Toro 93-6686

DECAL-OIL, HYD

$8.99

$

Usually ships in 3-6 days

0
