23205 - Toro 25" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 007000001 - 007999999) (1977) FRAME AND CUTTER HOUSING ASSEMBLY Parts Diagram

25" Whirlwind Hevi-Duty Walk-Behind Mower

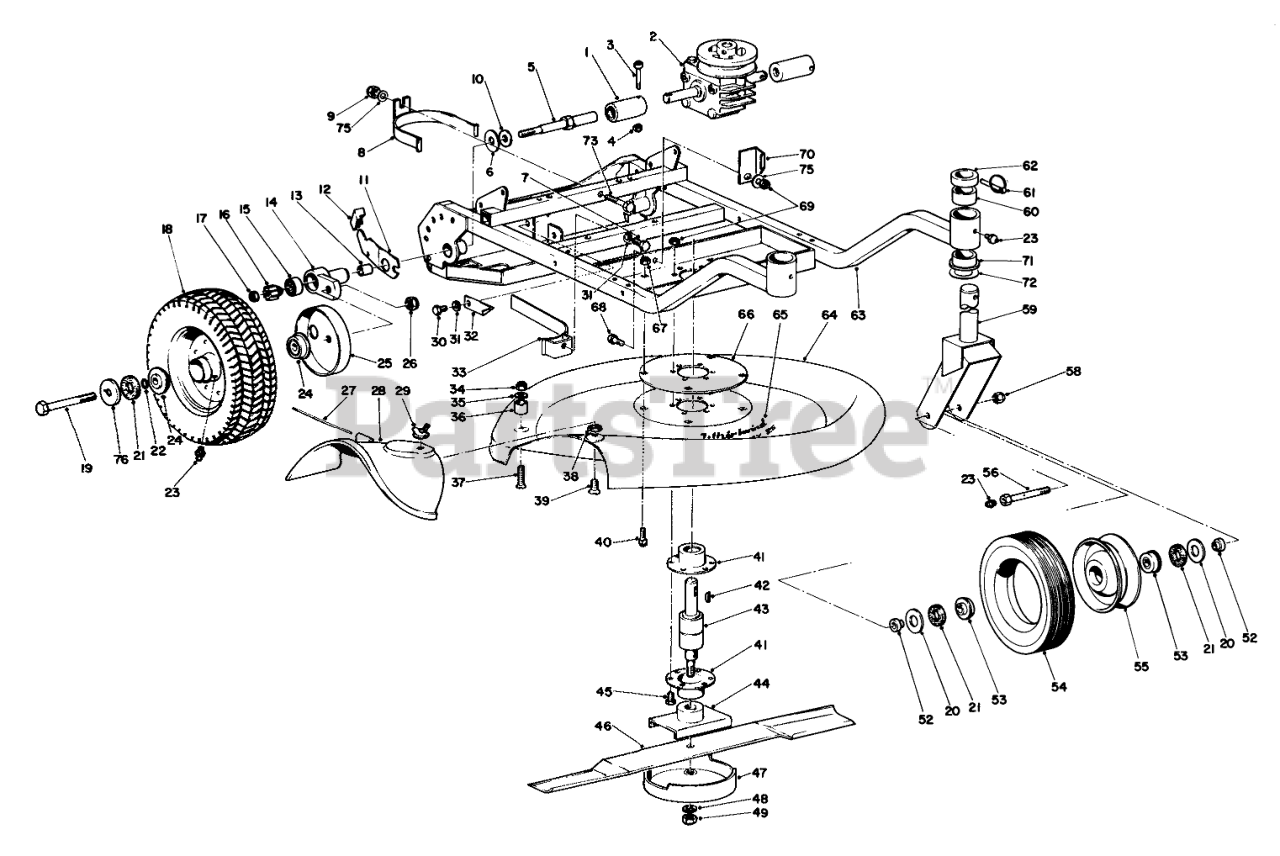

FRAME AND CUTTER HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 6-7179

CLUTCH ASM

$

$

Not available

Toro 6-7189

CLUTCH ASM

Note: Not illustrated

$

$

Not available

2

Toro 3-8699

Transmission Assembly

$

$

Not available

3

Toro 5-1491

DRIVE SCREW

$

$

Not available

4

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 5-2131

DRIVE SPINDLE

$

$

Not available

Toro 5-2132

DRIVE SPINDLE

Note: Not illustrated

$

$

Not available

6

Toro 3-8115

Washer

$

$

Not available

7

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 5-2145

Belt Retainer W.A.

$

$

Not available

9

Toro 329647

Locknut

$

$

Currently unavailable

10

Toro 252-73

Washer
(Superseded to 60-8030)

$

$

Not available

11

Toro 5-2118

RH SPRING ARM ASM

$

$

Not available

Toro 5-2117

LH SPRING ARM ASM

Note: Not illustrated

$

$

Not available

12

Toro 5-0656

Knob

$

$

Not available

Toro 5-0657

ARM KNOB

Note: Not illustrated

$

$

Not available

13

Toro 256-1

BUSHING

$29.99

$

In Stock, only 2 left!

0

14

Toro 3-8117

Pivot Arm Assy., Right (Incl. Ref. # 13 & 15)

$

$

Not available

Toro 3-8116

Pivot Arm Assy., Left (Incl. Ref. # 13 & 15)

Note: Not illustrated

$

$

Not available

15

Toro 251-183

.375 RPP BALL BEARING

$65.99

$

Usually ships in 3-6 days

0

16

Toro 3-7829

Pinion Kit

$

$

Not available

17

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

Toro 3220-16

NUT-JAM, LH

Note: Not illustrated

$1.99

$

In Stock, Qty 5

0

18

Toro 3-9219

REAR WHEEL & TIRE ASM

$

$

Not available

19

Toro 3213-12

SCREW-HH

$

$

Not available

20

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

21

Toro 3-4417

Washer

$

$

Not available

22

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

23

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

24

Toro 251-191

BEARING

$

$

Not available

25

Toro 3-8127

Wheel Cover

$

$

Not available

26

Toro 3296-28

NUT-LOCK, NI

$1.99

$

In Stock, only 4 left!

0

27

Toro 31176

Hinge Pin

$

$

Currently unavailable

28

Toro 30674

Deflector

$

$

Currently unavailable

29

Toro 34808

Wing Nut

$

$

Currently unavailable

30

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

31

Toro 32534

Lockwasher

$

$

Currently unavailable

32

Toro 51592

Belt Retainer

$

$

Currently unavailable

33

Toro 23-7580

Belt Retainer W.A.

$

$

Not available

34

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

35

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Toro 35528

Spacer

$

$

Currently unavailable

37

Toro 32108-7

Screw

$

$

Not available

38

Toro 3290-147

PAL NUT

$

$

Not available

39

Toro 32108-21

5/16-18X7/8 FLT HD MS

$

$

Currently unavailable

40

Toro 3231-12

BOLT-CARR

$6.49

$

In Stock, only 3 left!

0

41

Toro 3-1931

BEARING HOUSING

$

$

Not available

42

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 7

0

43

Toro 3-4533

Bearing Spindle

$

$

Not available

44

Toro 3-5220

Retainer

$

$

Not available

45

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

46

Toro 28-0710

25 HD BLADE

$

$

Not available

47

Toro 3-3803

Cup

$

$

Not available

48

Toro 3253-27

WASHER-LOCK

$2.99

$

In Stock, Qty 6

0

49

Toro 3296-19

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

52

Toro 10-9270

CASTOR SPACER

$

$

Not available

53

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

54

Toro 234-18

1.75-8 SEMIPNEU TIRE

$

$

Not available

55

Toro 3-2179

Wheel (Incl. Ref. #53 & 54)

$142.99

$

In Stock, only 1 left!

0

56

Toro 10-9300

AXLE BOLT

$50.99

$

Usually ships in 3-6 days

0

58

Toro 32146-13

NUT-HEX

$4.49

$

In Stock, only 4 left!

0

59

Toro 10-9380

CASTOR FORK WA RO

$

$

Not available

60

Toro 256-101

7/8 ID X 1.128 X 7/8 LG BSHG

$10.99

$

Usually ships in 3-6 days

0

61

Toro 3290-243

PIN-LYNCH
(Superseded to 107-3039)

$10.99

$

In Stock, only 1 left!

0

62

Toro 10-9310

HT OF CUT SPACER

$21.99

$

Usually ships in 3-6 days

0

63

Toro 10-9450

Frame (Incl. Ref. #60 & 71)
(Superseded to 94-4935)

$125.99

$

Usually ships in 3-6 days

0

64

Toro 3-4562

Housing

$

$

Not available

65

Toro 3-8156

Decal

$

$

Not available

66

Toro 3-2118

Plate

$

$

Currently unavailable

67

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

68

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

69

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

70

Toro 3-8308

Belt Retainer

$

$

Not available

71

Toro 256-148

FLANGE BUSHING

$

$

Currently unavailable

72

Toro 3-0737

WASHER

$9.49

$

In Stock, only 3 left!

0

73

Toro 322-8

SCREW-HH

$3.49

$

In Stock, Qty 6

0

75

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

76

Toro 3-4416

SLINGER

$

$

Not available
