23205 - Toro 25" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 007000001 - 007999999) (1977) CARBURETOR MODEL NO. 631165 Parts Diagram

25" Whirlwind Hevi-Duty Walk-Behind Mower

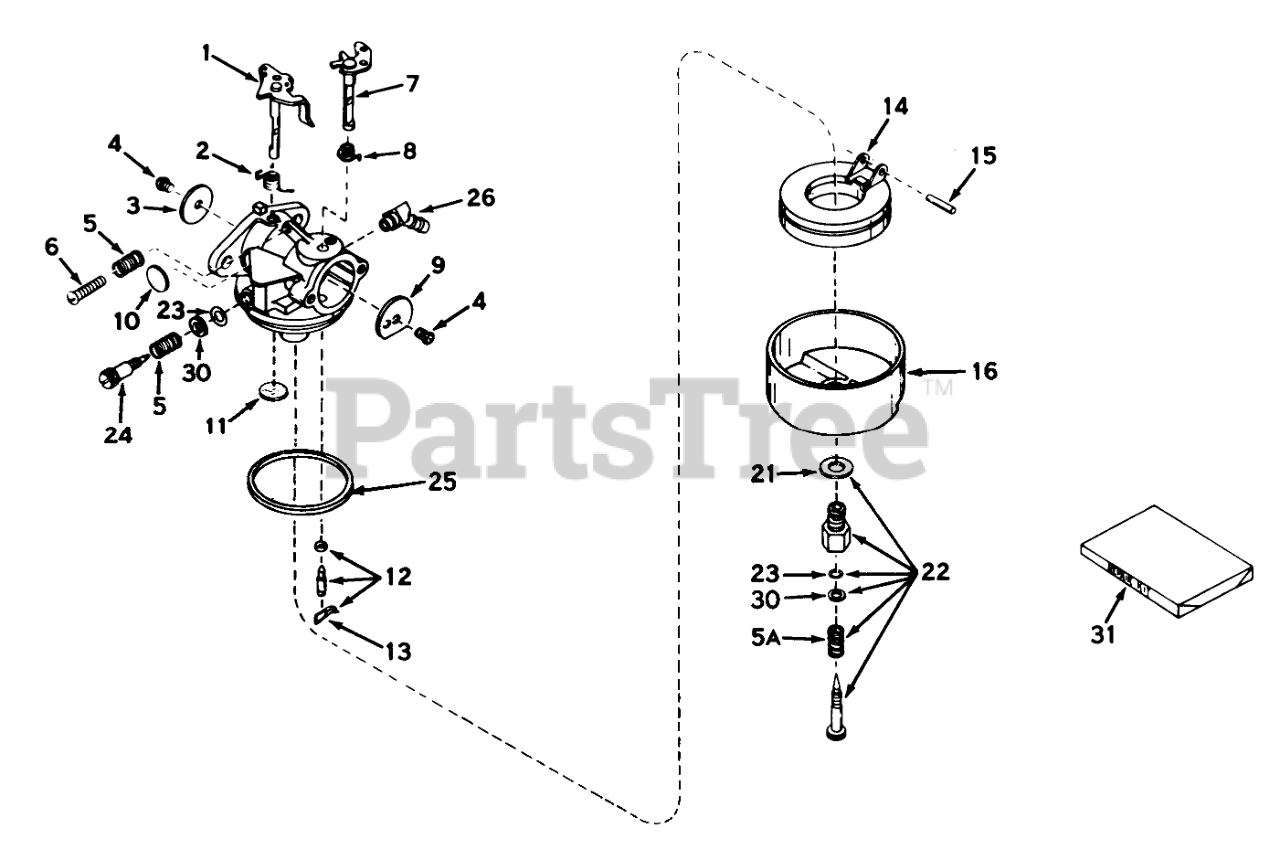

CARBURETOR MODEL NO. 631165 Parts Diagram

  • Title
1

Tecumseh 31834

Shaft/Lever-Throttle

$9.49

$

Usually ships in 3-12 days

0

2

Tecumseh 631279

Spring, Throtte Return
(Superseded to 631767)

$1.99

$

In Stock, only 4 left!

0

3

Tecumseh 631036

Shutter-Throttle

$1.99

$

Usually ships in 3-12 days

0

4

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 14

0

5

Tecumseh 630766

Spring-Tension

$1.99

$

In Stock, Qty 5

0

5A

$1.99

$

In Stock, Qty 8

0

6

Tecumseh 650417

Screw-Throttle Crack Screw / Idle Speed
(Superseded to 651025)

$1.99

$

In Stock, only 4 left!

0

7

Tecumseh 630973

Shaft& Lever Assy., Choke

$7.49

$

Usually ships in 3-12 days

0

8

Tecumseh 630821

Spring, Choke return
(Superseded to 632045)

$1.99

$

In Stock, only 2 left!

0

9

Tecumseh 631037

Shutter-Choke

$4.49

$

In Stock, only 1 left!

0

10

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Included in repair kit Num 631029.

$1.99

$

In Stock, only 1 left!

0

11

Tecumseh 631027

Plug-Welch, Atmospheric Vent

Note: Included in repair kit Num 631029.

$1.99

$

In Stock, only 4 left!

0

12

Tecumseh 631021

Inlet Needle, Seat & Clip Assembly (Incl. # 13)
(Superseded to 631021B)

Note: Included in repair kit Num 631029.

$6.99

$

In Stock, Qty 20+

0

13

Tecumseh 631022

Clip-Spring

$1.99

$

In Stock, only 4 left!

0

14

Tecumseh 631023

Float,Carburetor
(Superseded to 632019A)

$7.49

$

In Stock, Qty 7

0

15

Tecumseh 631024

Shaft-Float

Note: Included in repair kit Num 631029.

$1.99

$

In Stock, Qty 10

0

16

Tecumseh 631867

Bowl-Float (no drain)

$3.49

$

In Stock, Qty 11

0

21

Tecumseh 27110

Washer-Bowl Nut
(Superseded to 27110A)

$2.49

$

In Stock, only 3 left!

0

22

Tecumseh 631026

Adjustment Screw Assy., Main (Incl. #5A, 21, 23 & 30)

Note: Included in repair kit Num 631029.

$13.99

$

Usually ships in 3-12 days

0

23

Tecumseh 630740

"O"Ring

Note: Included in repair kit Num 631029.

$2.49

$

Usually ships in 3-12 days

0

24

Tecumseh 631078

Screw, Idle Adj.
(Superseded to 631838)

Note: Included in repair kit Num 631029.

$3.99

$

In Stock, only 2 left!

0

25

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

Note: Included in repair kit Num 631029.

$2.49

$

In Stock, Qty 18

0

26

Tecumseh 631808

Fitting-Inlet, Fuel

$13.99

$

Usually ships in 3-12 days

0

30

$1.99

$

In Stock, Qty 6

0

31

Tecumseh 631029

Repair Kit

$24.99

$

In Stock, only 4 left!

0
