23205 - Toro 25" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 006000001 - 006999999) (1976) ENGINE AND FRAME ASSEMBLY Parts Diagram

25" Whirlwind Hevi-Duty Walk-Behind Mower

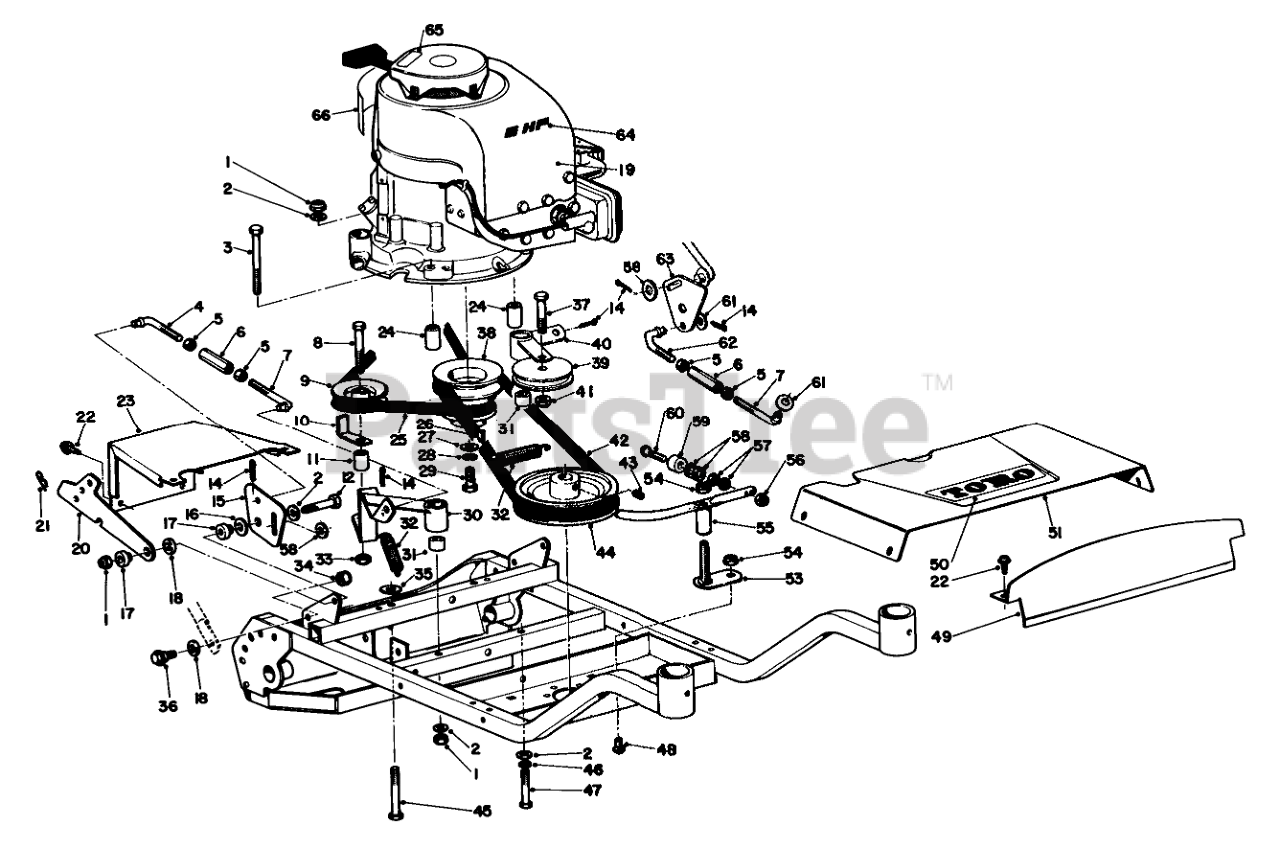

ENGINE AND FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 322-22

SCREW-HH
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

4

Toro 5-1493

TRACTION LINK

$133.99

$

Usually ships in 3-6 days

0

5

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

6

Toro 3-6481

CONTROL ROD SLEEVE

$

$

Not available

7

Toro 3-8197

Link

$

$

Not available

8

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 12

0

9

Toro 3-4243

IDLER PULLEY R

$

$

Not available

10

Toro 3-6471

Hook

$

$

Not available

11

Toro 23-7610

SPACER

$

$

Not available

12

Toro 32104-34

5/16-18 X 1-3/4 SCREW

$

$

Not available

14

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

15

Toro 5-1492

Bell Crank

$

$

Not available

16

Toro 5-0744

WASHER

$

$

Not available

17

Toro 3-7811

PIVOT

$

$

Not available

18

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

19

Toro 221-560

Engine

$

$

Currently unavailable

20

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

21

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

22

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

23

Toro 5-3482

Rear Shroud

$

$

Not available

24

Toro 3-8164

ENGINE PIVOT SPACER

$

$

Not available

25

Toro 3-2733

V-BELT

$

$

Not available

26

Toro 3257-17

KEY-WOODRUFF

$

$

Not available

27

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

28

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

29

Toro 3211-4

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

30

Toro 5-2147

Arm & Bushing (Incl. Ref. # 31)

$

$

Not available

31

Toro 256-77

BUSHING

$3.49

$

Usually ships in 3-6 days

0

32

Toro 3-8135

EXTENSION SPRING

$

$

Currently unavailable

33

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

34

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

35

Toro 4-2320

WASHER

$

$

Not available

36

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

37

Toro 3-7283

Screw

$

$

Not available

38

Toro 23-7620

ENGINE PULLEY RO

$

$

Not available

39

Toro 244-63

PULLEY B

$

$

Not available

40

Toro 5-2127

Arm & Bushing (Incl. Ref. # 31)

$

$

Not available

41

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

42

Toro 3-8095

CUTTER BELT

$84.99

$

Usually ships in 3-6 days

0

43

Toro 3246-3

SCREW-HSH

$13.99

$

Usually ships in 3-6 days

0

44

Toro 3-8423

CUTTER PULLEY

$

$

Not available

45

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

46

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

47

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

48

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

49

Toro 3-8151

Shroud Panel

$

$

Not available

50

Toro 3-8154

Decal

$

$

Currently unavailable

51

Toro 5-2148

FRONT SHROUD R

$

$

Not available

53

Toro 3-8306

Base Pivot

$

$

Not available

54

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

55

Toro 5-2126

Brake Arm

$

$

Not available

56

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

57

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 2 left!

0

58

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

59

Toro 237-45

BUMPER

$

$

Not available

60

Toro 3251-7

10-24X1-1/2 RND HD MS

$

$

Not available

61

Toro 3-3846

WASHER

$

$

Not available

62

Toro 5-2142

CUTTER LINK

$

$

Not available

63

Toro 22-6020

CUTTR BELLCRANK WA R

$

$

Not available

64

Toro 23-7650

Decal

$

$

Not available

65

Toro 22-5180

Decal Caution

$

$

Not available

66

Toro 25-8410

Decal-Saftey Instruction

$

$

Not available

Toro 23-8960

Muffler

Note: Not illustrated

$

$

Not available

Toro 3290-154

3/4-14 CONDUIT NUT

Note: Not illustrated

$

$

Not available

Toro 2811-6

45deg. Steel Elbow

Note: Not illustrated

$

$

Not available
