23201 - Toro 25" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 001000001 - 001999999) (1971) CARBURETOR MODEL NO. 631115 PARTS LIST Parts Diagram

25" Whirlwind Hevi-Duty Walk-Behind Mower

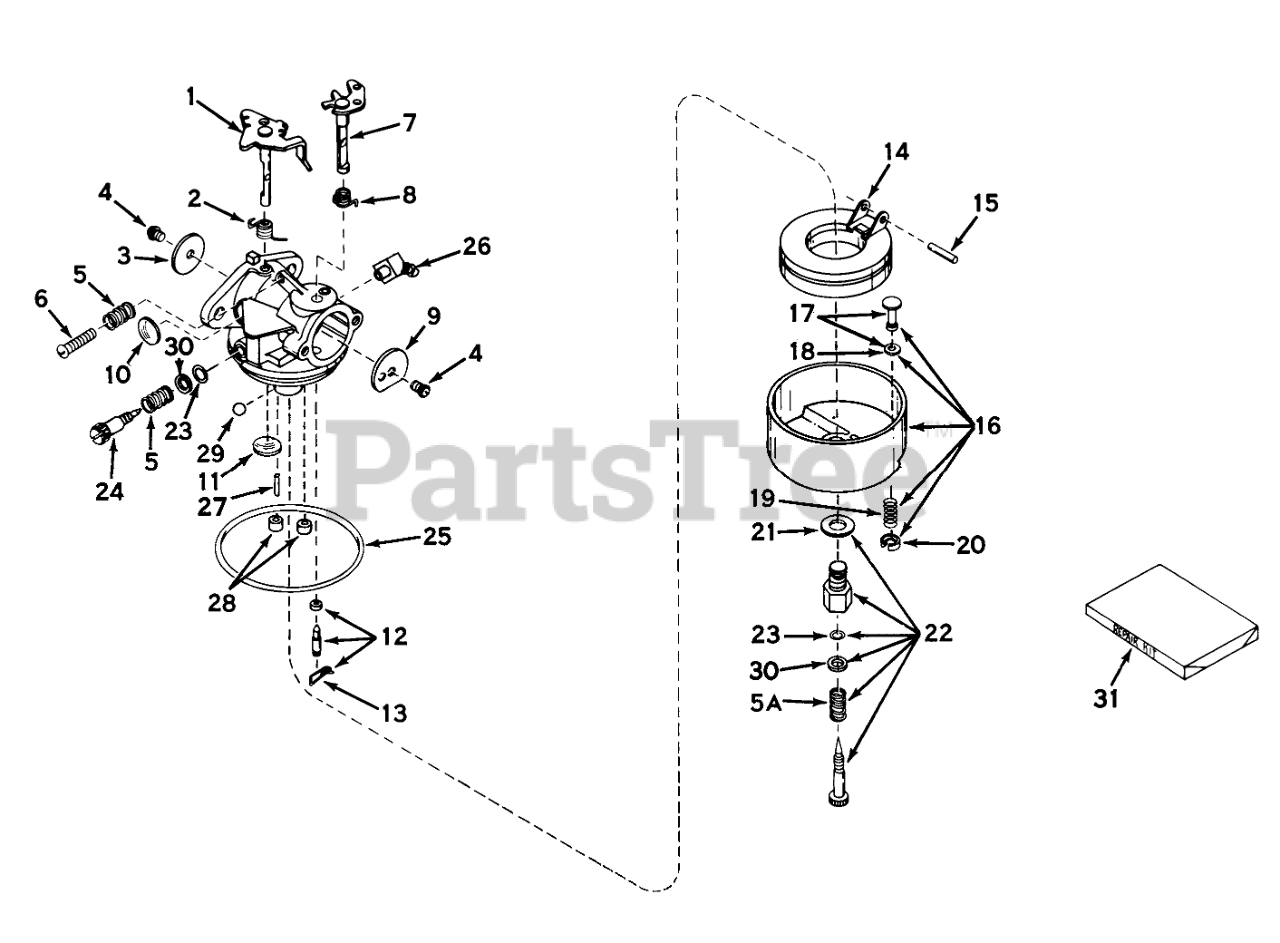

CARBURETOR MODEL NO. 631115 PARTS LIST Parts Diagram

  • Title

1

Tecumseh 31834

Shaft/Lever-Throttle

$9.49

$

Usually ships in 3-12 days

0

2

Tecumseh 630731

Spring, Return
(Superseded to 632016)

$1.99

$

In Stock, only 4 left!

0

3

Tecumseh 631036

Shutter-Throttle

$1.99

$

Usually ships in 3-12 days

0

4

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 16

0

5

Tecumseh 630766

Spring-Tension

$1.99

$

In Stock, only 2 left!

0

5A

Tecumseh 630738

Spring

$1.99

$

In Stock, Qty 9

0

6

Tecumseh 650417

Screw-Throttle Crack Screw / Idle Speed
(Superseded to 651025)

$1.99

$

In Stock, Qty 5

0

7

Tecumseh 630973

Shaft& Lever Assy., Choke

$7.49

$

Usually ships in 3-12 days

0

8

Tecumseh 630821

Spring, Choke return
(Superseded to 632045)

$1.99

$

In Stock, only 2 left!

0

9

Toro 6301037

Shutter, Choke

$

$

Currently unavailable

10

Tecumseh 630748

Plug-Welch, Idle Mixture Well

$1.99

$

In Stock, only 3 left!

0

11

Tecumseh 631027

Plug-Welch, Atmospheric Vent

$1.99

$

In Stock, only 1 left!

0

12

Tecumseh 631021

Inlet Needle, Seat & Clip Assy. (Incl. No. 13)
(Superseded to 631021B)

Note: Included in repair kit Num 631029.

$6.99

$

In Stock, Qty 5

0

13

Tecumseh 631022

Clip-Spring

$1.99

$

In Stock, only 4 left!

0

14

Tecumseh 631023

Float,Carburetor
(Superseded to 632019A)

$7.49

$

In Stock, Qty 10

0

15

Tecumseh 631024

Shaft-Float

Note: Included in repair kit Num 631029.

$1.99

$

In Stock, Qty 11

0

16

Tecumseh 631025

Bowl & Drain Assy., Float (Incl. Nos. 17 thru 20)
(Superseded to 631951)

$17.99

$

Usually ships in 3-12 days

0

17

Tecumseh 27136

Plunger Assy., Drain (Incl. No. 18)
(Superseded to 27136A)

$7.49

$

In Stock, only 1 left!

0

18

Tecumseh 27554

Gasket-Plunger, Drain

$1.49

$

In Stock, Qty 16

0

19

Tecumseh 27137

Spring, Drain Plunger
(Superseded to 27136A)

$7.49

$

In Stock, only 1 left!

0

20

Tecumseh 27138

Retainer, Plunger Spring
(Superseded to 27136A)

$7.49

$

In Stock, only 1 left!

0

21

Tecumseh 27110

Washer-Bowl Nut
(Superseded to 27110A)

Note: Included in repair kit Num 631029.

$2.49

$

Usually ships in 3-12 days

0

22

Tecumseh 631026

Adjustment Screw Assy., Main (Incl. Nos. 5A, 21, 23 & 30)

Note: Included in repair kit Num 631029.

$13.99

$

Usually ships in 3-12 days

0

23

Tecumseh 630740

"O"Ring

$2.49

$

Usually ships in 3-12 days

0

24

Tecumseh 631078

Screw, Idle Adj.
(Superseded to 631838)

Note: Included in repair kit Num 631029.

$3.99

$

In Stock, only 2 left!

0

25

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

Note: Included in repair kit Num 631029.

$2.49

$

In Stock, Qty 14

0

26

Tecumseh 631133

Fitting, Fuel Inlet
(Superseded to 631808)

$13.99

$

Usually ships in 3-12 days

0

27

Tecumseh 631039

Pin

$

$

Currently unavailable

28

Tecumseh 630747

Plug, Cup

$

$

Currently unavailable

29

Tecumseh 631081

BalI, Steel

$

$

Currently unavailable

30

Tecumseh 630739

Washer

$1.99

$

In Stock, Qty 7

0

31

Tecumseh 631029

Repair Kit

$24.99

$

In Stock, only 4 left!

0
