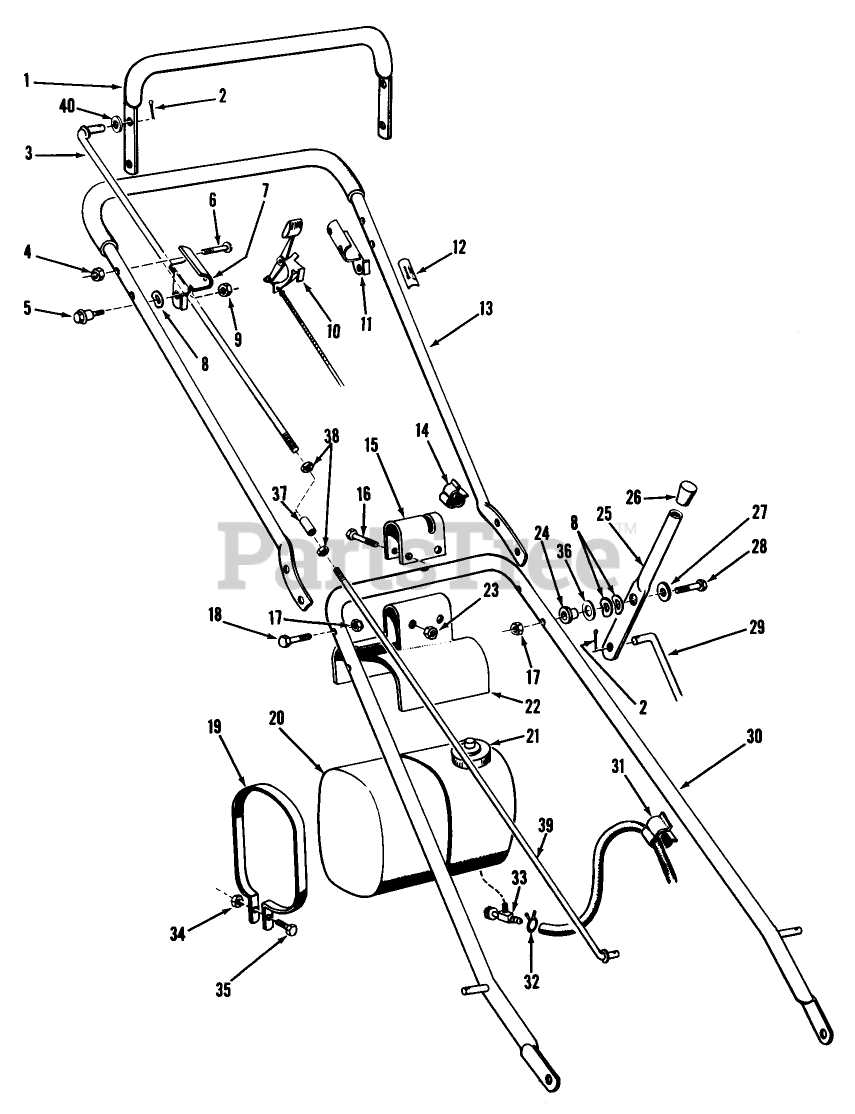

23200 - Toro Heavy-Duty Whirlwind Walk-Behind Mower (SN: 005000001 - 005999999) (1965) 25" AND 34" HANDLE Parts Diagram

Heavy-Duty Whirlwind Walk-Behind Mower

25" AND 34" HANDLE Parts Diagram

  • Title
1

Toro 2-9849

Control Bail
(Superseded to 19-7180)

$

$

Not available

2

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

3

Toro 3-6478

Control Rod

$

$

Not available

4

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 3-1846

Screw
(Superseded to 5-2490)

$

$

Not available

6

Toro 3251-11

10-24X1-1/4 PAN HD MS

$

$

Not available

7

Toro 3-7371

CONTROL BAIL BRACKET

$

$

Not available

8

Toro 3290-211

WASHER-SPRING

$6.99

$

Usually ships in 3-6 days

0

9

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

10

Toro 3-7807

Throttle Control
(Superseded to 23-4600)

$

$

Not available

11

Toro 3-7372

Bracket-Control Bail

$

$

Not available

12

Toro 3-2067

Decal

$

$

Currently unavailable

13

Toro 2-4549

Upper Handle Assy.
(Superseded to 26-7840)

$205.99

$

Usually ships in 3-6 days

0

14

Toro WA-85

Clamp

$

$

Currently unavailable

15

Toro 3-6477

Clamp, Fuel Tank
(Superseded to 22-5060)

$

$

Not available

16

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

18

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 9

0

19

Toro 3-6346

TANK STRAP

$

$

Not available

20

Toro 222-14

Tank
(Superseded to 52-2331)

$408.99

$

Usually ships in 3-6 days

0

21

$

$

Not available

22

Toro 3-6345

FUEL TANK BRACKET

$

$

Not available

23

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

24

Toro 3-7811

PIVOT

$

$

Not available

25

Toro 3-7808

Cutter Handle

$

$

Currently unavailable

26

Toro PD-25B

Plug Button

$

$

Currently unavailable

27

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 3-7812

Cutter Rod 25"

$

$

Currently unavailable

Toro 3-8195

Cutter Rod 34"

Note: Not illustrated

$

$

Currently unavailable

30

Toro 3-6850

Lower Handle

$

$

Not available

Toro 3-8193

Lower Handle Assy.

Note: Not illustrated

$

$

Currently unavailable

31

Toro 3-5181

CLAMP

$

$

Not available

32

Toro 2210-87

Clamp
(Superseded to 2412-36)

$2.49

$

Usually ships in 3-6 days

0

33

Toro 304-71

.125 ID SHUTOFF VALVE

$

$

Not available

34

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

35

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

37

Toro 3-6481

CONTROL ROD SLEEVE

$

$

Not available

38

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

39

Toro 5-0551

Control Rod, Lower

$

$

Not available

40

Toro 3-6712

Spacer

$

$

Not available
