23200 - Toro Heavy-Duty Whirlwind Walk-Behind Mower (SN: 005000001 - 005999999) (1965) 25" AND 34" GEAR BOX Parts Diagram

Heavy-Duty Whirlwind Walk-Behind Mower

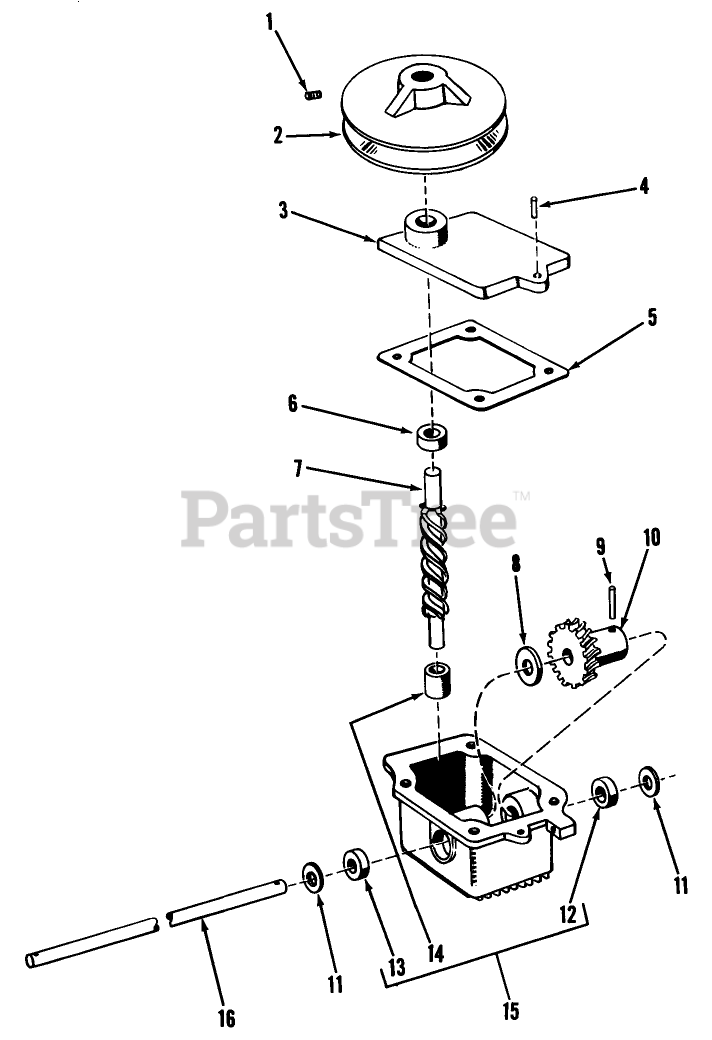

25" AND 34" GEAR BOX Parts Diagram

  • Title

1

Toro 3246-3

SCREW-HSH

$13.99

$

Usually ships in 3-6 days

0

2

Toro 3-6442

Pulley Gear Box
(Superseded to 5-3681)

$

$

Not available

3

Toro 3-6438

Cover Gear Box

$

$

Not available

4

Toro 32121-1

3/16 X 1/2 ROLL PIN

$4.49

$

In Stock, Qty 5

0

5

Toro 3-0734

GASKET

$9.99

$

Usually ships in 3-6 days

0

6

Toro 251-144

Bearing
(Superseded to 47-7460)

$72.99

$

In Stock, only 1 left!

0

7

Toro 3-4738

Worm Shaft
(Superseded to 5-3680)

$

$

Not available

8

Toro 3-0724

THRUST WASHER

$

$

Not available

9

Toro 32121-63

5/32 X 7/8 ROLL PIN
(Superseded to 32121-108)

$6.99

$

Usually ships in 3-6 days

0

10

Toro 3-6436

WORM GEAR

$417.99

$

Usually ships in 3-6 days

0

11

Toro 253-86

Seal
(Superseded to 47-7260)

$8.99

$

In Stock, only 2 left!

0

12

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

13

Toro 256-109

Bushing
(Superseded to 47-2900)

$6.49

$

In Stock, Qty 20+

0

14

Toro 252-51

.437 NEEDLE BEARING

$

$

Not available

15

Toro 3-1079

Gear Case
(Superseded to 5-8339)

$

$

Not available

16

Toro 3-8105

Shaft, Transmission 25"

$

$

Currently unavailable

Toro 3-8172

Shaft, Transmission 34"

Note: Not illustrated

$

$

Currently unavailable
