232 R - Husqvarna String Trimmer (SN: 19940600001 - 19954500000) STARTER Parts Diagram

String Trimmer

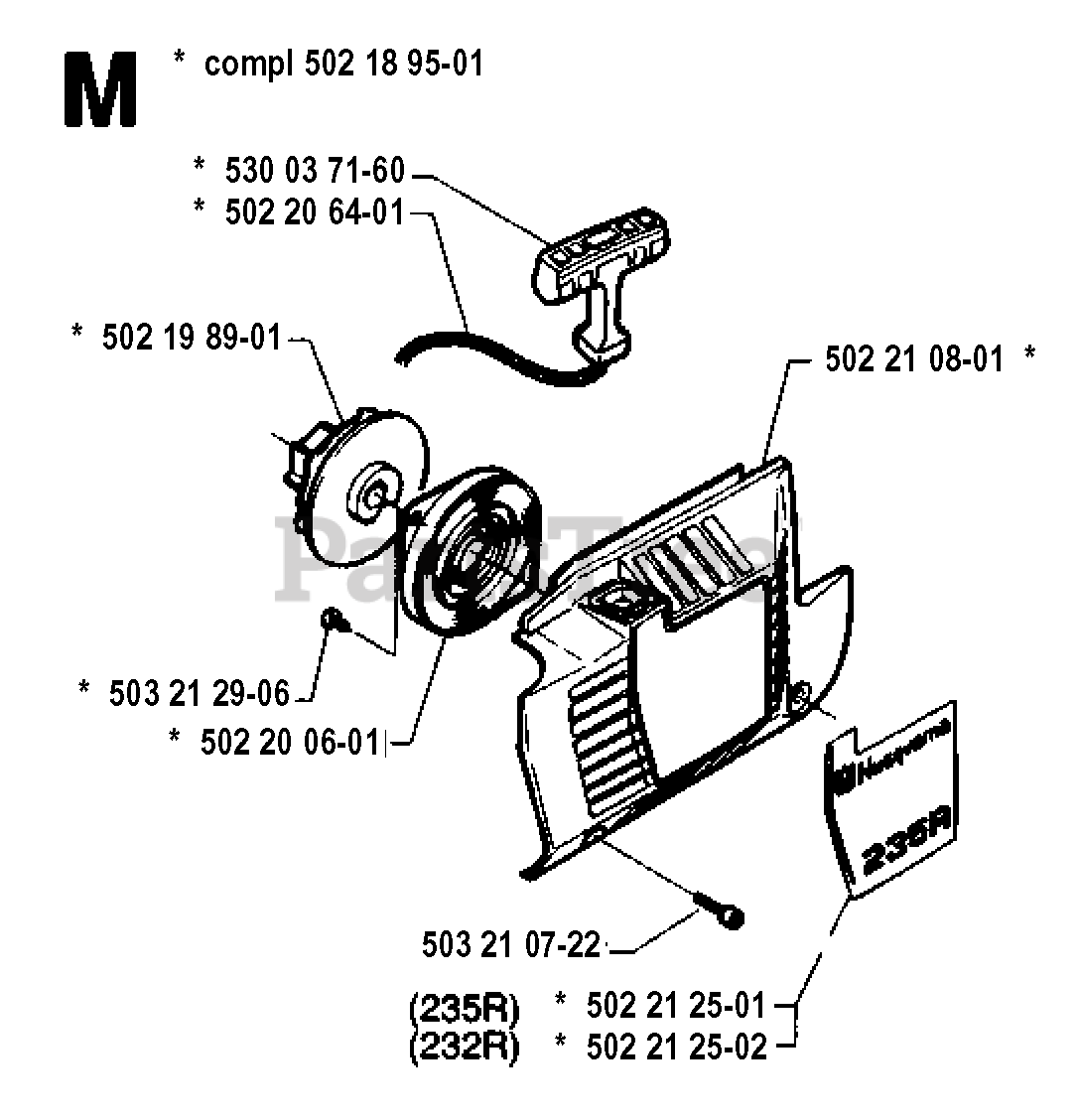

STARTER Parts Diagram

  • Title
502 21 25-01

Husqvarna 502212501

Decal

Note: 235R

$

$

Not available

503 21 29-06

$4.99

$

In Stock, only 4 left!

0

502 19 89-01

Husqvarna 502198901

STARTER PULLEY
(Superseded to 503775301)

$24.99

$

In Stock, only 2 left!

0

502 21 25-02

Husqvarna 502212502

Decal

Note: 232R

$

$

Not available

502 20 64-01

Husqvarna 502206401

STARTER ROPE
(Superseded to 505305125)

$9.49

$

In Stock, Qty 19

0

502 21 08-01

Husqvarna 502210801

HOUSING
(Superseded to 502196301)

$

$

Not available

503 21 07-22

Husqvarna 503210722

SCREW
(Superseded to 503216722)

$6.49

$

In Stock, Qty 9

0

502 18 95-01

Husqvarna 502189501

STARTER ASSY
(Superseded to 502189502)

$79.99

$

Usually ships in 3-10 days

0

530 03 71-60

Husqvarna 530037160

STARTER HANDLE
(Superseded to 530150318)

$6.49

$

In Stock, Qty 18

0

502 20 06-01

Husqvarna 502200601

RECOIL SPRING

$24.99

$

Usually ships in 3-10 days

0
