232 R - Husqvarna String Trimmer (2002-09) Piston/Cylinder Parts Diagram

String Trimmer

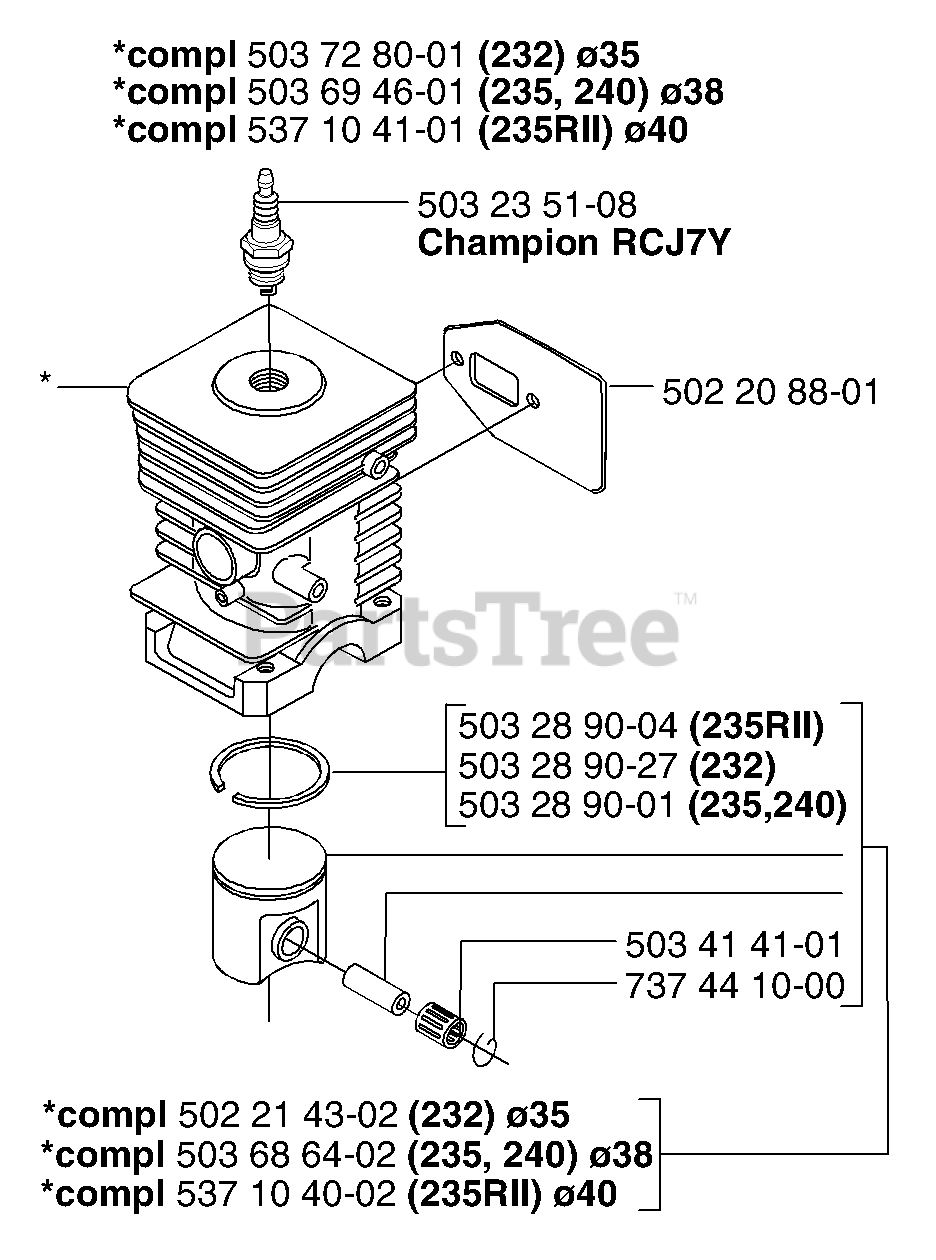

Piston/Cylinder Parts Diagram

  • Title

502208801

Husqvarna 502208801

Gasket Muffler

$7.99

$

Usually ships in 3-10 days

0

502214302

Husqvarna 502214302

Piston

Note: Compl; (232) Dia. 35

$113.99

$

Usually ships in 3-10 days

0

503235108

Husqvarna 503235108

Spark Plug Rcj7y
(Superseded to 503235111)

Note: Champion

$3.49

$

In Stock, Qty 20+

0

503289001

Husqvarna 503289001

Piston Ring

Note: (235,240)

$

$

Not available

503289004

Husqvarna 503289004

Ring
(Superseded to 537400001)

Note: (235RII)

$17.99

$

In Stock, only 1 left!

0

503289027

Husqvarna 503289027

Piston Ring

Note: (232)

$27.99

$

Usually ships in 3-10 days

0

503414101

Husqvarna 503414101

Needle Bearing

$24.99

$

Usually ships in 3-10 days

0

503686402

Husqvarna 503686402

Piston Complete

Note: Compl; (235,240) Dia. 38

$109.99

$

Usually ships in 3-10 days

0

503694601

Husqvarna 503694601

Cylinder W/Piston

Note: Compl; (235,240) Dia. 38

$250.99

$

Usually ships in 3-10 days

0

503728001

Husqvarna 503728001

Cylinder Cpl

Note: Compl; (232) Dia. 35

$

$

Not available

537104002

Husqvarna 537104002

Cylinder

Note: Compl; (235RII) Dia. 40

$92.31

$

Usually ships in 3-10 days

0

537104101

Husqvarna 537104101

Cylinder

Note: Compl; (235RII) Dia. 40

$227.99

$

Usually ships in 3-10 days

0

737441000

Husqvarna 737441000

Locking Ring

$6.49

$

Usually ships in 3-10 days

0
