232 L - Husqvarna String Trimmer (SN: 20070100001 & Above) CYLINDER PISTON Parts Diagram

String Trimmer

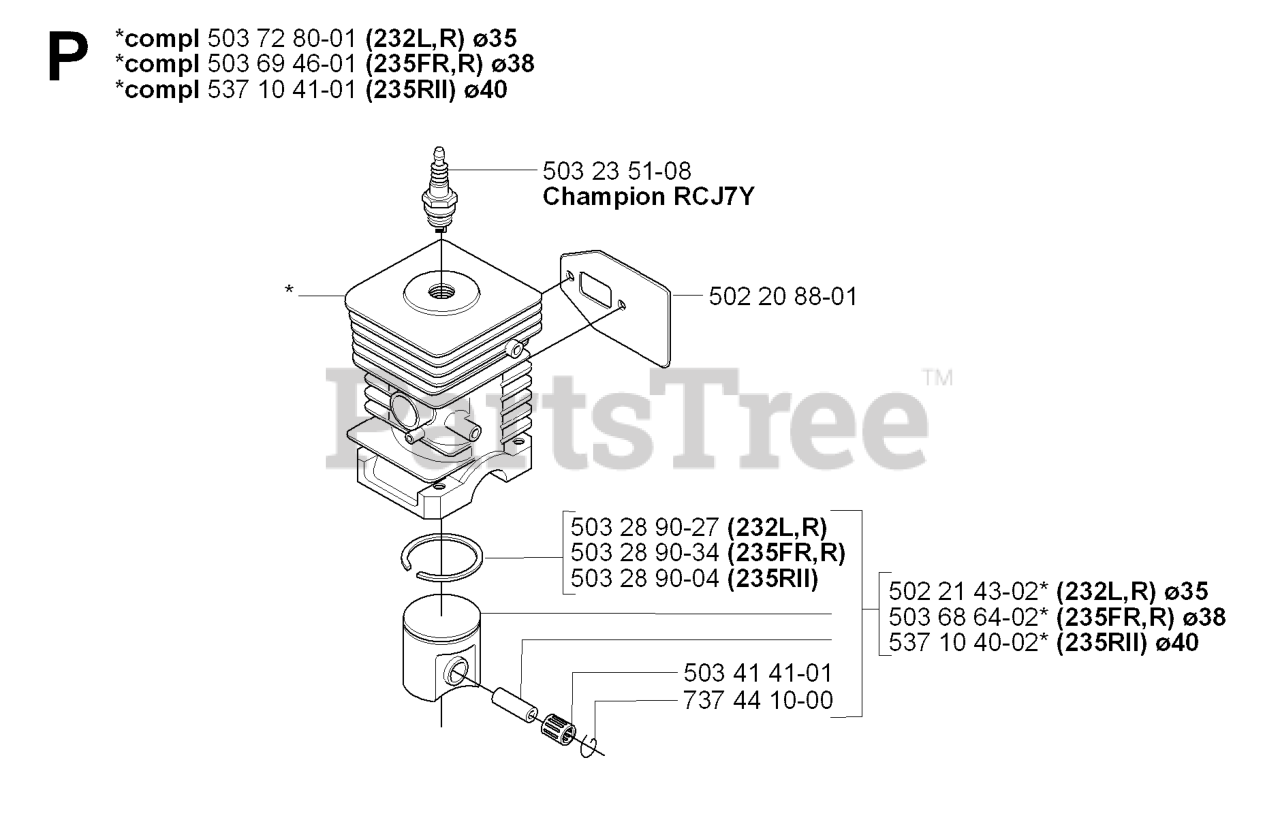

CYLINDER PISTON Parts Diagram

  • Title

537 10 41-01

Husqvarna 537104101

CYLINDER

$227.99

$

Usually ships in 3-10 days

0

502 21 43-02

Husqvarna 502214302

PISTON

$113.99

$

Usually ships in 3-10 days

0

503 72 80-01

Husqvarna 503728001

Cylinder Cpl

$

$

Not available

503 69 46-01

Husqvarna 503694601

CYLINDER W/PISTON

$250.99

$

Usually ships in 3-10 days

0

737 44 10-00

Husqvarna 737441000

LOCKING RING

$6.49

$

In Stock, only 1 left!

0

503 23 51-08

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 503235111)

$3.99

$

In Stock, Qty 20+

0

503 28 90-34

Husqvarna 503289034

PISTON RING

$

$

Not available

502 20 88-01

Husqvarna 502208801

GASKET MUFFLER

$7.99

$

Usually ships in 3-10 days

0

537 10 40-02

Husqvarna 537104002

PISTON ASSY

$92.31

$

Usually ships in 3-10 days

0

503 41 41-01

Husqvarna 503414101

SUPPORT BUSHING

$24.99

$

Usually ships in 3-10 days

0

503 28 90-04

Husqvarna 503289004

RING
(Superseded to 537400001)

$17.99

$

In Stock, only 1 left!

0

503 68 64-02

Husqvarna 503686402

PISTON COMPLETE

$109.99

$

Usually ships in 3-10 days

0

503 28 90-27

Husqvarna 503289027

PISTON RING

$27.99

$

Usually ships in 3-10 days

0
