23177 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1977) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

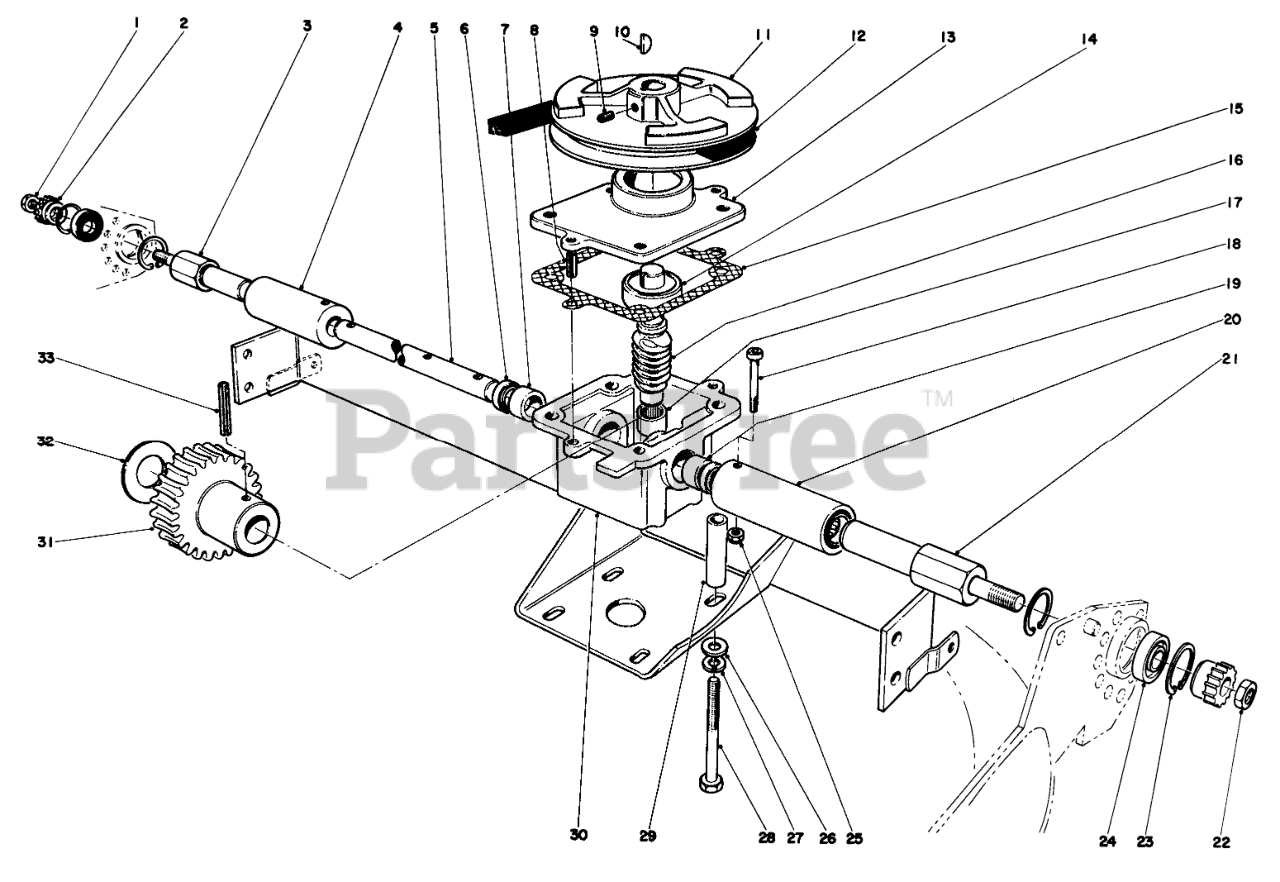

GEAR CASE ASSEMBLY Parts Diagram

  • Title
1

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

2

Toro 3-3039

Pinion Kit

$

$

Currently unavailable

3

Toro 3-6452

OUTPUT SHAFT

$

$

Not available

4

Toro 4-1639

R/H CLUTCH HSG ASM

$

$

Not available

5

Toro 5-3437

GEAR BOX SHAFT

$

$

Not available

6

Toro 253-86

Seal
(Superseded to 47-7260)

$8.99

$

In Stock, only 2 left!

0

7

Toro 256-109

Bushing
(Superseded to 47-2900)

$6.49

$

In Stock, Qty 20+

0

8

Toro 32121-1

3/16 X 1/2 ROLL PIN

$4.49

$

In Stock, Qty 5

0

9

Toro 3246-3

SCREW-HSH

$13.99

$

Usually ships in 3-6 days

0

10

Toro 3257-27

3/32X5/8 WOODRUFF KEY

$

$

Not available

11

Toro 5-3681

GEAR BOX PULLEY

$

$

Not available

12

Toro 3-6593

V-BELT

$137.99

$

Usually ships in 3-6 days

0

13

Toro 3-6438

Cover Gear Box

$

$

Not available

14

Toro 251-144

Bearing
(Superseded to 47-7460)

$72.99

$

In Stock, only 1 left!

0

15

Toro 3-0734

GASKET

$9.99

$

Usually ships in 3-6 days

0

16

Toro 5-3680

WORM SHAFT

$

$

Not available

17

Toro 252-51

.437 NEEDLE BEARING

$

$

Not available

18

Toro 5-1491

DRIVE SCREW

$

$

Not available

19

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

20

Toro 4-1649

L/H CLUTCH HSG ASM

$

$

Not available

21

Toro 3-6454

OUTPUT SHAFT

$316.99

$

Usually ships in 3-6 days

0

22

Toro 3220-16

NUT-JAM, LH

$1.99

$

In Stock, Qty 5

0

23

Toro 32151-8

1-1/8X056 IN SNP RING

$8.49

$

Usually ships in 3-6 days

0

24

Toro 251-183

.375 RPP BALL BEARING

$65.99

$

Usually ships in 3-6 days

0

25

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

28

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

29

Toro 19-1350

GEAR CASE SPACER

$

$

Not available

30

Toro 5-8339

Gear Case (Incl. Ref. # 6-7 & 17 & 19)

$

$

Not available

31

Toro 3-6436

WORM GEAR

$417.99

$

Usually ships in 3-6 days

0

32

Toro 3-0724

THRUST WASHER

$

$

Not available

33

Toro 32121-63

5/32 X 7/8 ROLL PIN
(Superseded to 32121-108)

$6.99

$

Usually ships in 3-6 days

0

Toro 5-8329

Gear Assy. Complete (Incl. Ref. #5-8 & 13-17, 19, 28 & 30-33)

Note: Not illustrated

$

$

Not available
