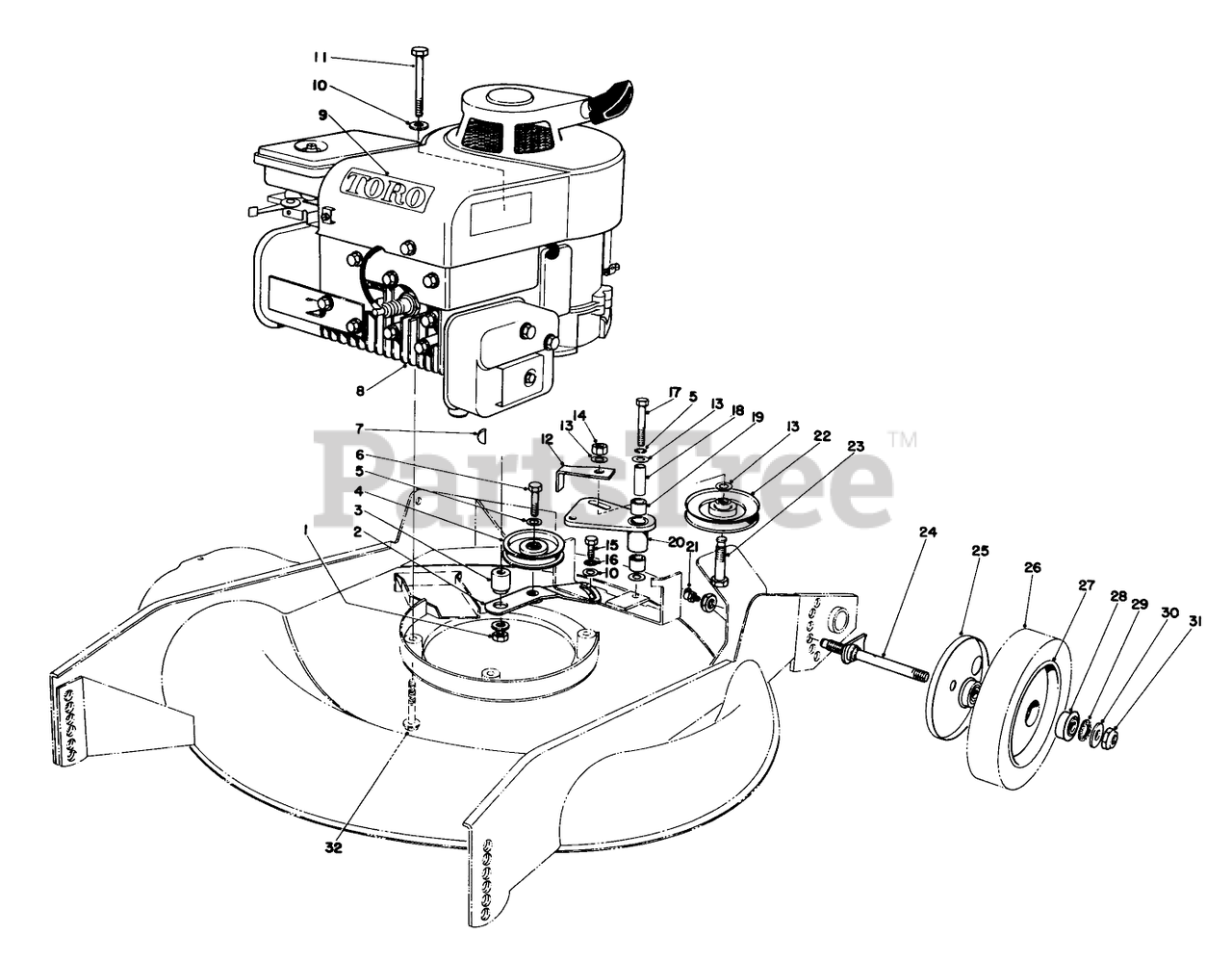

23177 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1977) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

2

Toro 26-8760

Idler Arm

$

$

Not available

3

Toro 26-8720

Spacer-Idler Arm

$

$

Not available

4

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

5

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

6

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

7

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

8

Toro 221-559

Engine

$

$

Currently unavailable

9

Toro 26-7730

Decal Toro

$

$

Not available

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

12

$

$

Not available

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

14

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

15

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

16

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

17

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 3-6468

ROLLED SPACER

$

$

Not available

19

Toro 256-1

BUSHING

$29.99

$

In Stock, only 2 left!

0

20

Toro 3-6598

Idler Arm (Incl. Ref. #19)

$

$

Not available

21

Toro 302-42

GREASE FITTING

$

$

Not available

22

Toro 3-4243

IDLER PULLEY R

$

$

Not available

23

Toro 3-7283

Screw

$

$

Not available

24

Toro 3-0779

Spindle (Incl. Ref. #21)

$

$

Not available

25

Toro 3-6451

WHEEL COVER

$

$

Not available

26

$

$

Not available

27

Toro 2-9919

Wheel & Tire Assembly Rear (Incl. Ref. #26 & 28)

$

$

Not available

28

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

29

Toro 26-7500

FELT WASHER

$

$

Not available

30

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 3296-28

NUT-LOCK, NI

$1.99

$

In Stock, only 4 left!

0

32

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0
