23163 - Toro Backhoe for Dingo Compact Utility Loader (SN: 313000001 - 313999999) (2013) HYDRAULIC CYLINDER ASSEMBLY NO. 107-9473 Parts Diagram

Backhoe for Dingo Compact Utility Loader

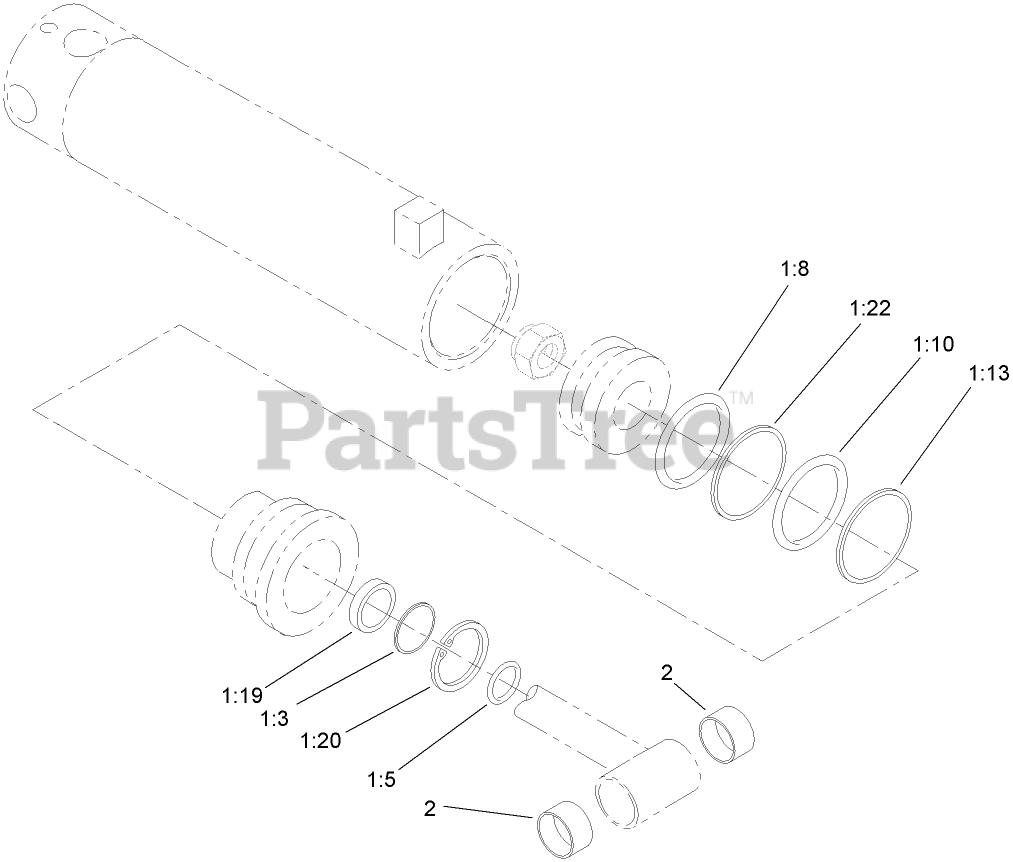

HYDRAULIC CYLINDER ASSEMBLY NO. 107-9473 Parts Diagram

  • Title
1:3

Seal-Wiper

Note: Not serviced separately

$

$

Not available

1:5

O-Ring

Note: Not serviced separately

$

$

Not available

1:8

O-Ring

Note: Not serviced separately

$

$

Not available

1:10

O-Ring

Note: Not serviced separately

$

$

Not available

1:13

Ring-Backup

Note: Not serviced separately

$

$

Not available

1:19

Seal-Rod

Note: Not serviced separately

$

$

Not available

1:20

RING-Retaining

Note: Not serviced separately

$

$

Not available

1:22

RING-Piston

Note: Not serviced separately

$

$

Not available

1

Toro 108-5691

CYLINDER SEAL KIT

$237.99

$

Usually ships in 3-6 days

0

2

Toro 256-82

BUSHING

$

$

Not available
