23163 - Toro Backhoe for Dingo Compact Utility Loader (SN: 311000001 - 311999999) (2011) SEAT AND CONTROL ASSEMBLY Parts Diagram

Backhoe for Dingo Compact Utility Loader

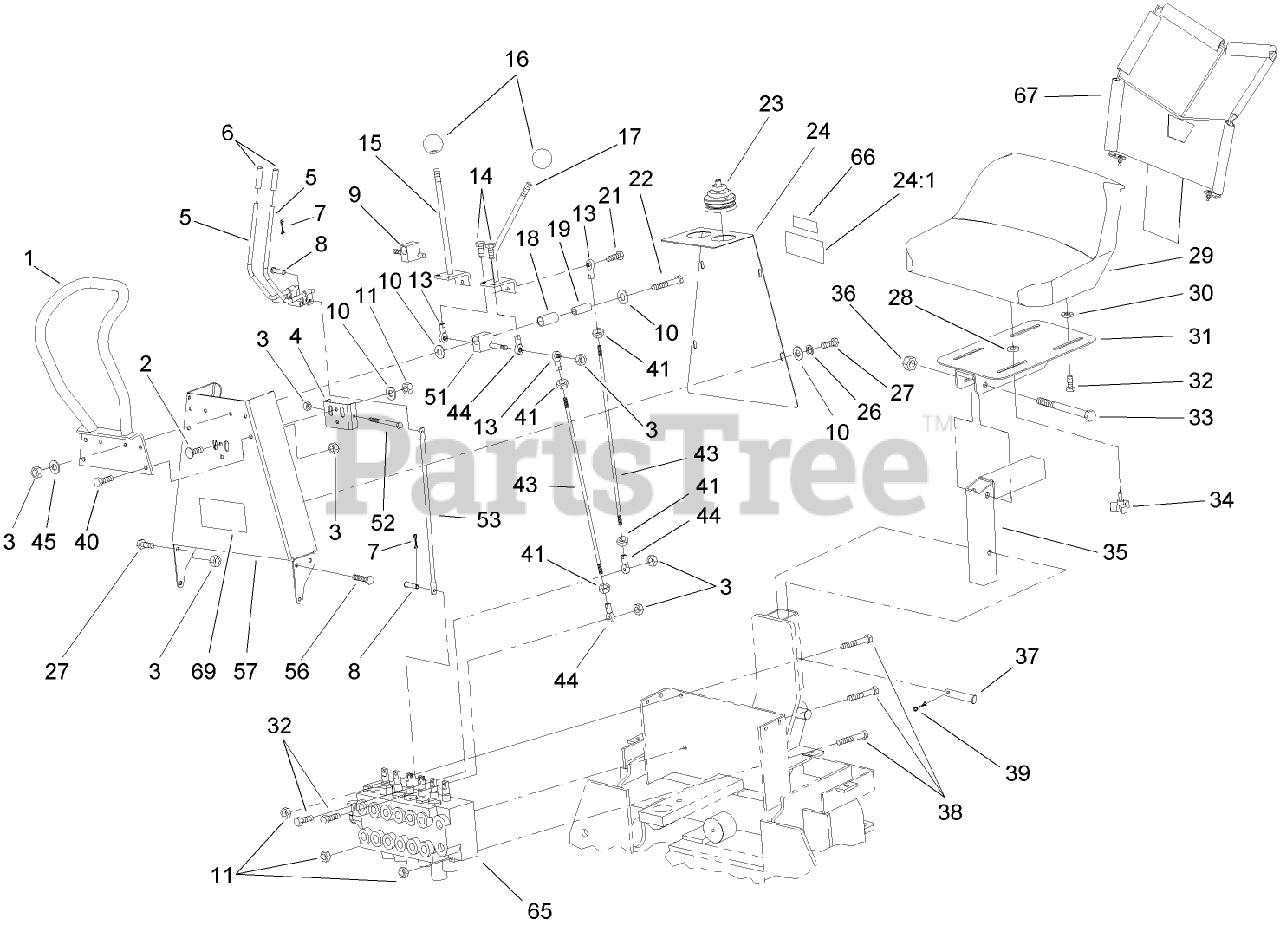

SEAT AND CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 107-9488

REFERENCE BAR ASM

$364.99

$

Usually ships in 3-6 days

0

2

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

3

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

4

Toro 108-5652

U-BRACKET

$51.99

$

Usually ships in 3-6 days

0

5

Toro 107-9477

STABILIZER ROD ASM

$156.99

$

Usually ships in 3-6 days

0

6

Toro 107-9347

CAP-RUBBER

$6.99

$

Usually ships in 3-6 days

0

7

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

8

Toro 100-3462

PIN-CLEVIS

$2.99

$

Usually ships in 3-6 days

0

9

Toro 107-9491

RH PIVOT ASM

$156.99

$

Usually ships in 3-6 days

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 107-9344

JOINT-ARTICULATED

$37.99

$

Usually ships in 3-6 days

0

14

Toro 3210-4

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

15

Toro 107-9489

RH CONTROL HANDLE ASM

$143.99

$

Usually ships in 3-6 days

0

16

Toro 107-9345

KNOB-BALL

$46.99

$

Usually ships in 3-6 days

0

17

Toro 107-9490

LH CONTROL HANDLE ASM

$143.99

$

Usually ships in 3-6 days

0

18

Toro 107-9337

BUSHING-BRONZE

$38.99

$

Usually ships in 3-6 days

0

19

Toro 108-5663

BUSHING

$36.99

$

Usually ships in 3-6 days

0

21

Toro 3210-5

SCREW-HH

$3.99

$

In Stock, Qty 6

0

22

Toro 322-32

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

23

Toro 107-9346

BOOT-LEVER, CONTROL

$106.99

$

Usually ships in 3-6 days

0

24

Toro 107-9334

VALVE-REAR PLATE, COVER

$182.99

$

Usually ships in 3-6 days

0

24:1

Toro 100-4133

DECAL-WARNING

$138.99

$

Usually ships in 3-6 days

0

26

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

27

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

28

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0

29

Toro 88-3950

SEAT
(Superseded to 88-4330)

$

$

Not available

30

Toro 92-6750

SPACER-NYLON

$16.99

$

Usually ships in 3-6 days

0

31

Toro 107-9485

SEAT PLATE ASM

$416.99

$

Usually ships in 3-6 days

0

32

Toro 92-6986

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

33

Toro 325-14

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

34

Toro 700806

KNOB

$20.99

$

In Stock, Qty 5

0

35

Toro 107-9487

SEAT POST ASM

$

$

Not available

36

Toro 3296-19

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

37

Toro 107-9339

PIN-CLEVIS

$38.99

$

Usually ships in 3-6 days

0

38

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

39

Toro 3290-468

PIN-COTTER

$1.49

$

Usually ships in 3-6 days

0

40

Toro 323-46

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

41

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

43

Toro 107-9475

ROD-CONTROL

$124.99

$

Usually ships in 3-6 days

0

44

Toro 1-543017

BALLJOINT-RH

$20.99

$

In Stock, only 4 left!

0

45

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

51

Toro 107-9492

LH PIVOT ASM

$156.99

$

Usually ships in 3-6 days

0

52

Toro 3211-4

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

53

Toro 107-9476

ROD-STABILIZER

$124.99

$

Usually ships in 3-6 days

0

56

Toro 3210-2

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

57

Toro 107-9478

FRONT SHROUD ASM

$606.99

$

Usually ships in 3-6 days

0

65

Toro 108-5680

HYDRAULIC VALVE ASM

$6764.99

$

Usually ships in 3-6 days

0

66

Toro 108-5693

DECAL-CONTROL

$25.99

$

Usually ships in 3-6 days

0

67

Toro 106-7630

BACKHOE SHIELD KIT
(Superseded to 112-2532)

$

$

Not available

69

Toro 62-7400

DECAL

$26.99

$

Usually ships in 3-6 days

0
