23160 - Toro Backhoe for Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) FRAME, BOOM AND STABILIZER ASSEMBLY Parts Diagram

Backhoe for Dingo Compact Utility Loader

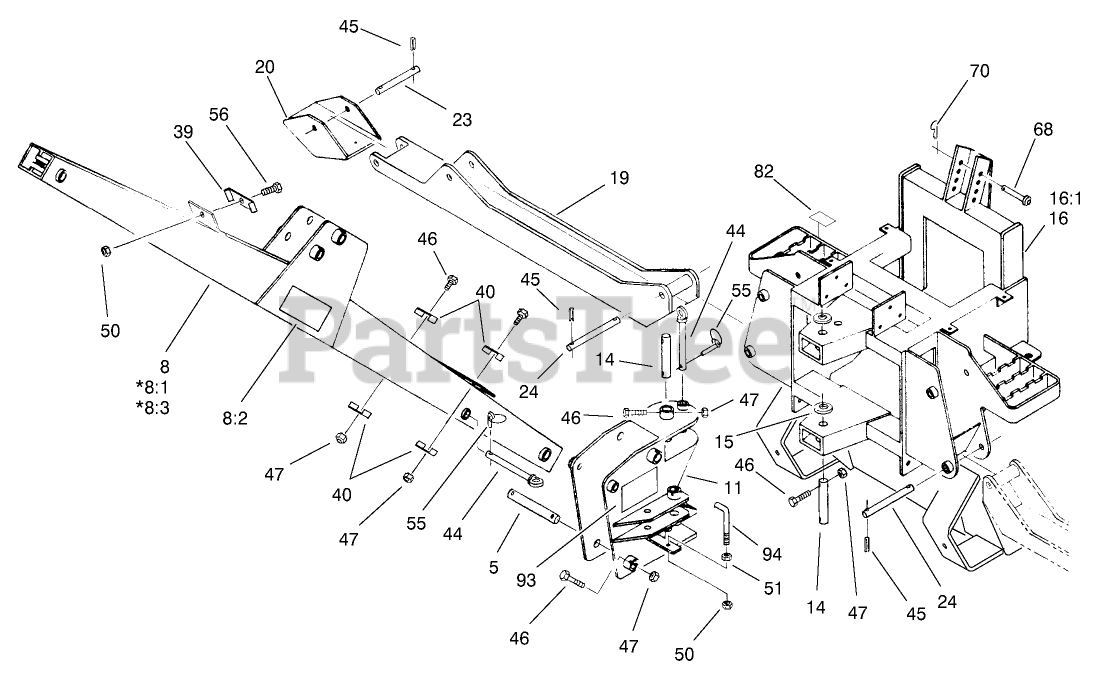

FRAME, BOOM AND STABILIZER ASSEMBLY Parts Diagram

  • Title
5

Toro 100-7170

PIN-BUCKET

$107.99

$

Usually ships in 3-6 days

0

8

Toro 100-7215

BOOM ASM

$

$

Not available

8:1

Toro 302-19

FITTING-GREASE

Note: Not illustrated

$2.49

$

In Stock, Qty 20+

0

8:2

Toro 100-4132

DECAL-WARNING

$67.99

$

Usually ships in 3-6 days

0

8:3

Toro 302-60

FITTING-GREASE

Note: Not illustrated

$2.99

$

Usually ships in 3-6 days

0

11

Toro 100-7156

SWIVEL ASM

$

$

Not available

14

Toro 100-7175

PIN-PIVOT

$

$

Not available

15

Toro 100-7187

WASHER-THRUST

$

$

Not available

16

Toro 100-7151

BOX FRAME ASM

$11107.99

$

Usually ships in 3-6 days

0

16:1

Toro 302-19

FITTING-GREASE

Note: Not illustrated

$2.49

$

In Stock, Qty 20+

0

19

Toro 100-7153

STABILIZER ASM

$

$

Not available

20

Toro 100-7161

STABILIZER FOOT ASM

$

$

Not available

23

Toro 100-7184

PIN-FOOT, STABILIZER

$

$

Not available

24

Toro 100-7185

PIN-STABILIZER

$

$

Not available

39

Toro 100-7183

BRACKET-HOSE

$

$

Not available

40

Toro 100-7182

BRACKET-HOSE

$

$

Not available

44

Toro 100-7164

LOCK PIN ASM

$

$

Not available

45

Toro 32121-15

PIN-ROLL

$1.99

$

In Stock, Qty 20+

0

46

Toro 321-33

SCREW-HH

$8.99

$

In Stock, only 1 left!

0

47

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

50

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

51

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

55

Toro 283-72

PIN-LYNCH

$12.99

$

Usually ships in 3-6 days

0

56

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

68

Toro 100-7209

PIN-CLEVIS

$

$

Not available

70

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

82

Toro 100-7263

DECAL-WARNING

$37.99

$

Usually ships in 3-6 days

0

93

Toro 100-4134

DECAL-PLACEMENT, PIN

$72.99

$

Usually ships in 3-6 days

0

94

Toro 100-7222

BRACKET-HOSE

$

$

Not available
