23160 - Toro Backhoe for Dingo Compact Utility Loader (SN: 200000001 - 200999999) (2000) SEAT AND MOUNTING ASSEMBLY Parts Diagram

Backhoe for Dingo Compact Utility Loader

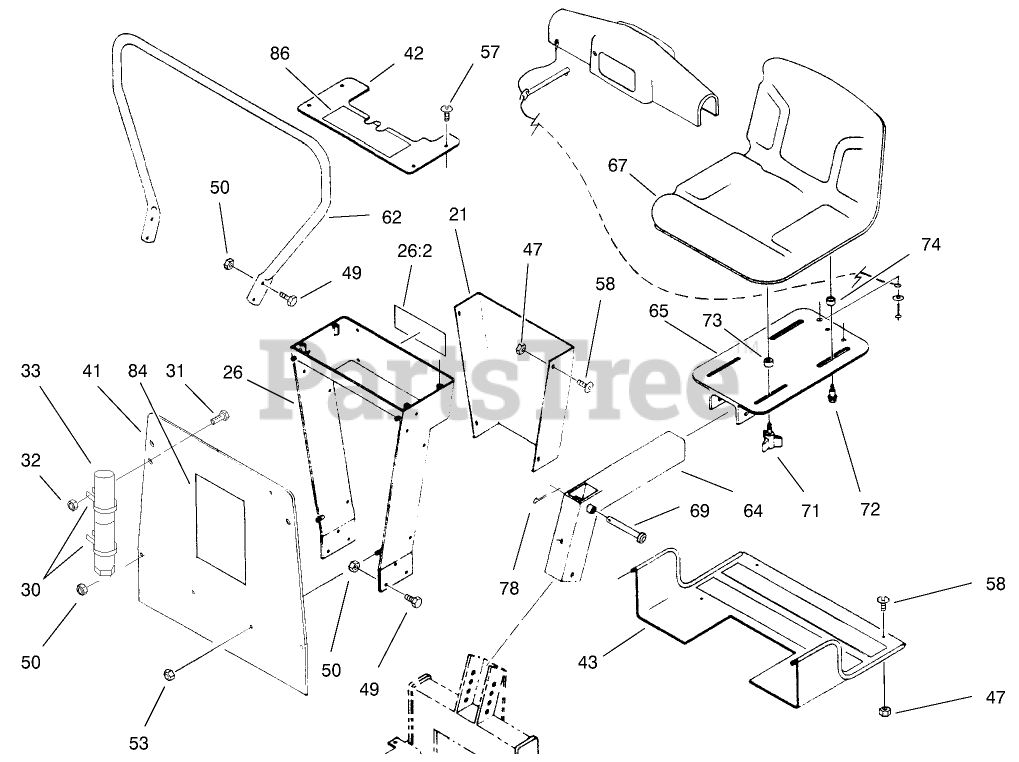

SEAT AND MOUNTING ASSEMBLY Parts Diagram

  • Title

21

Toro 100-7166

GUARD-HOSE

$

$

Not available

26

Toro 100-7207

VALVE MOUNT ASM

$

$

Not available

26:2

Toro 100-4133

DECAL-WARNING

$138.99

$

Usually ships in 3-6 days

0

30

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

31

Toro 32104-19

SCREW

$

$

Not available

32

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

33

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

41

Toro 100-7165

PANEL-FRONT

$

$

Not available

42

Toro 100-7169

COVER-VALVE

$

$

Not available

43

Toro 100-7162

FOOT PLATE ASM

$

$

Not available

47

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 10

0

49

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

50

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

53

Toro 3296-17

NUT-LOCK, NI
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

57

Toro 3258-2

SCREW

$

$

Not available

58

Toro 3290-133

SCREW

$1.49

$

Usually ships in 3-6 days

0

62

Toro 100-7167

HANDLE-GUARD

$

$

Not available

64

Toro 100-7157

SEAT MOUNT ASM

$

$

Not available

65

Toro 100-7158

SEAT PLATE ASM

$

$

Not available

67

Toro 88-3950

SEAT
(Superseded to 88-4330)

$

$

Not available

69

Toro 100-7208

PIN-CLEVIS

$

$

Not available

71

Toro 700806

KNOB

$20.99

$

In Stock, Qty 5

0

72

Toro 92-6986

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

73

Toro 92-6750

SPACER-NYLON

$16.99

$

Usually ships in 3-6 days

0

74

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0

78

Toro 3272-31

PIN-COTTER

$1.99

$

Usually ships in 3-6 days

0

84

Toro 100-4762

DECAL-DINGO

$16.99

$

Usually ships in 3-6 days

0

86

Toro 100-4138

DECAL-PANEL, CONTROL

$138.99

$

Usually ships in 3-6 days

0
