23158 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 009000001 - 009999999) (1979) ENGINE ASSEMBLY Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

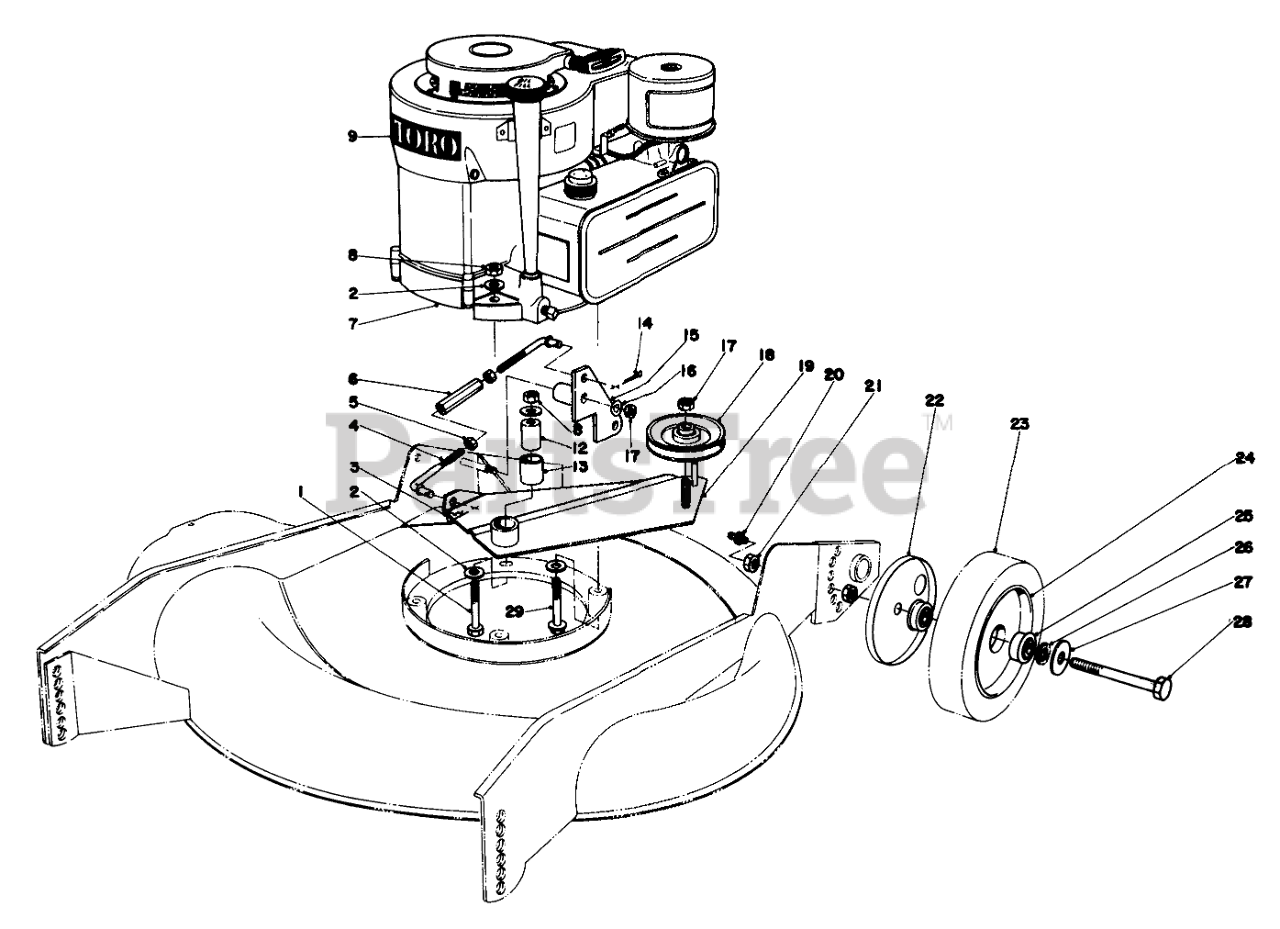

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 3290-290

HAIRPIN COTTER

$

$

Not available

4

Toro 294830

Link-Control Rod

$

$

Currently unavailable

5

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

6

Toro 3-6481

CONTROL ROD SLEEVE

$

$

Not available

7

Toro 221-566

Engine

$

$

Currently unavailable

8

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

9

Toro 26-7730

Decal Toro

$

$

Not available

12

Toro 3-6457

Pedestal

$

$

Not available

13

Toro 256-82

BUSHING

$

$

Not available

14

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

15

Toro 29-4680

BELL CRANK WA

$

$

Not available

16

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

18

Toro 3-4243

IDLER PULLEY R

$

$

Not available

19

Toro 29-4600

Idler Arm (Incl. Ref. #13)

$

$

Not available

20

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

21

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

22

Toro 3-6451

WHEEL COVER

$

$

Not available

23

Toro 3-7404

TIRE

$

$

Not available

24

Toro 2-9919

Wheel & Tire Assembly, Rear (Incl. Ref. #23 & 25)

$

$

Not available

25

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

26

Toro 26-7500

FELT WASHER

$

$

Not available

27

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 29-6630

WHEEL BOLT REAR

$60.99

$

Usually ships in 3-6 days

0

29

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0
