23158 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 008000001 - 008999999) (1978) REMOTE FUEL TANK KIT NO. 28-5590 (OPTIONAL) Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

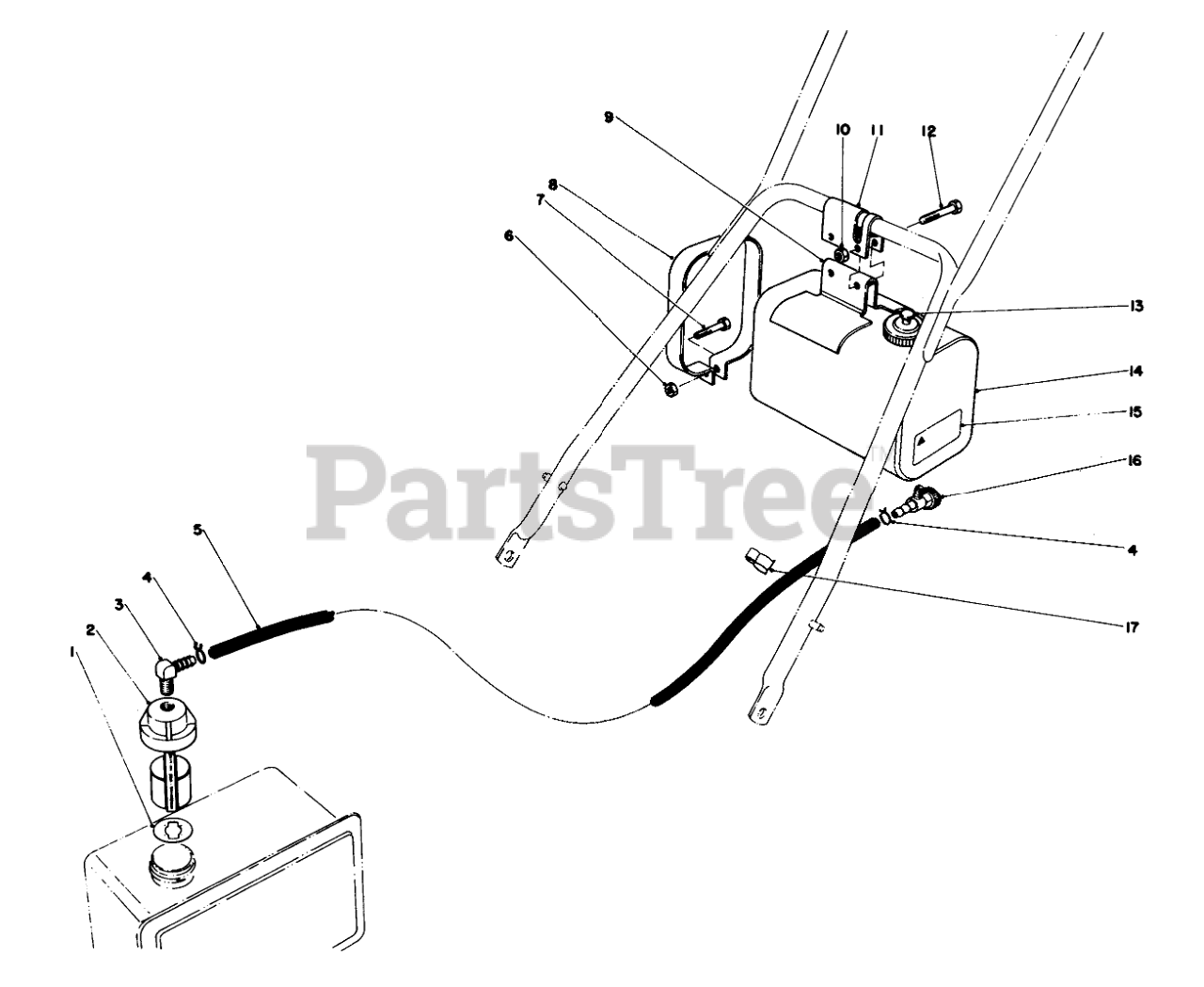

REMOTE FUEL TANK KIT NO. 28-5590 (OPTIONAL) Parts Diagram

  • Title
1

Toro 28-4850

GASKET

$

$

Not available

2

Toro 28-4840

Fuel Control Valve (Incl. Ref. # 1)

$

$

Not available

3

Toro 304-75

CONNECTOR-HOSE

$9.99

$

Usually ships in 3-6 days

0

4

Toro 2210-87

Clamp
(Superseded to 2412-36)

$2.49

$

Usually ships in 3-6 days

0

5

Toro 28-5600

FUEL LINE

$

$

Not available

6

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

7

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 3-6346

TANK STRAP

$

$

Not available

9

Toro 3-6345

FUEL TANK BRACKET

$

$

Not available

10

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

11

Toro 22-5060

Clamp

$

$

Not available

12

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

$

$

Not available

14

Toro 222-14

Fuel Tank (Incl. Ref. #13)
(Superseded to 52-2331)

$408.99

$

Usually ships in 3-6 days

0

15

Toro 28-6910

Decal-Caution

$

$

Not available

16

Toro 304-71

.125 ID SHUTOFF VALVE

$

$

Not available

17

Toro 3-5181

CLAMP

$

$

Not available
