23158 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 008000001 - 008999999) (1978) HOUSING ASSEMBLY Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

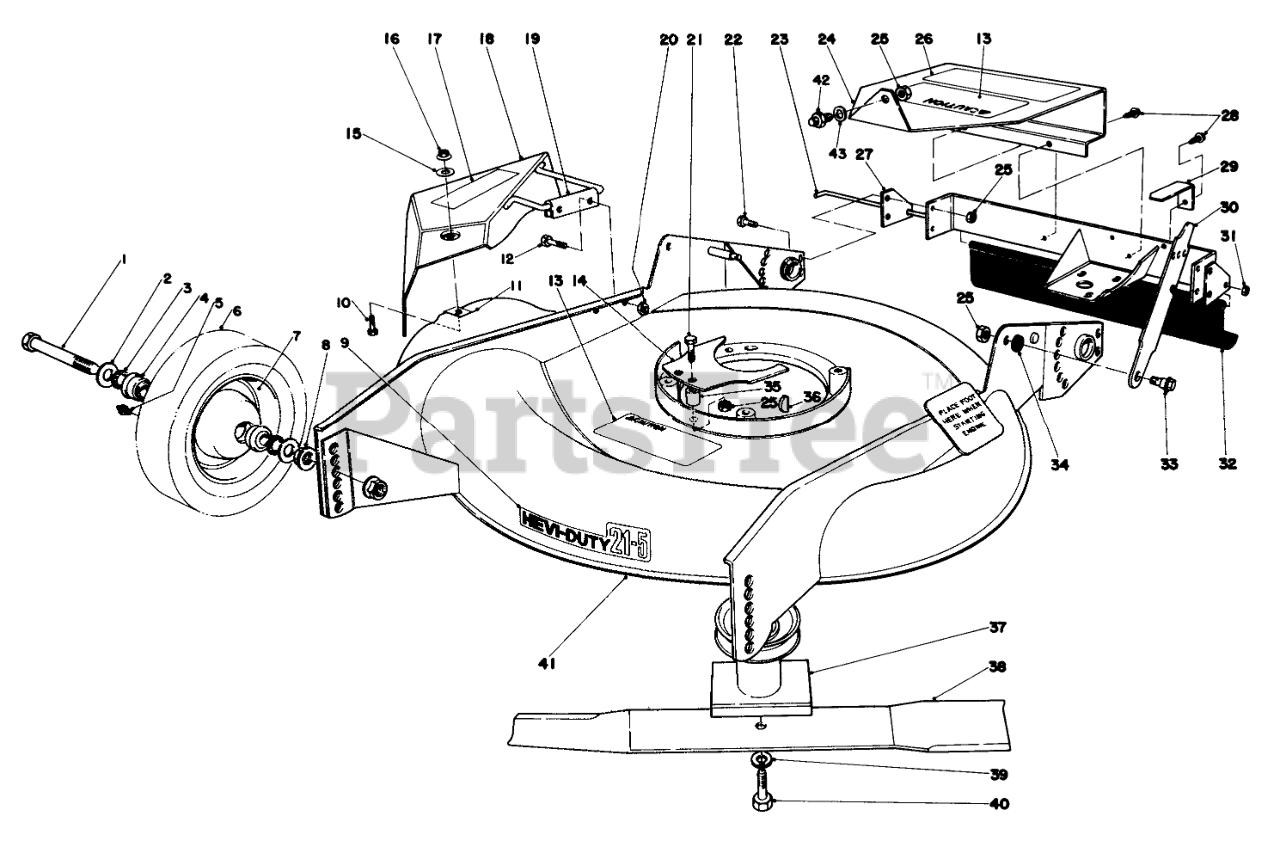

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 325-11

SCREW-HH

$3.49

$

In Stock, Qty 7

0

2

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 26-7500

FELT WASHER

$

$

Not available

4

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

5

Toro 302-26

FITTING-GREASE

$7.49

$

In Stock, only 1 left!

0

6

Toro 5-3543

TIRE

$

$

Not available

7

Toro 26-2960

Wheel & Tire Assembly (Incl. Ref. #4-6)
(Superseded to 11-1309)

$124.99

$

Usually ships in 3-6 days

0

8

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

9

Toro 28-5390

Decal-Hevi-Duty 21-5

$

$

Not available

10

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 3290-199

NUT-SPEED

$5.49

$

Usually ships in 3-6 days

0

12

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 29-4720

DECAL SAF INST

$

$

Not available

14

Toro 29-4660

Belt Guide-Front

$

$

Not available

15

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

16

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

17

Toro 26-7760

Decal-Deflector
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

18

Toro 26-7750

Deflector
(Superseded to 11-2869)

$

$

Not available

19

Toro 26-9300

Hinge-U Bracket

$

$

Not available

20

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

21

Toro 322-16

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

22

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 22-5160

Safety Shield Rod
(Superseded to 22-5170)

$

$

Not available

24

Toro 294460

Shroud

$

$

Currently unavailable

25

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

26

Toro 29-5570

Decal

$

$

Not available

27

Toro 29-6300

Bracket-Safety Shield

$

$

Not available

28

Toro 32140-16

Screw
(Superseded to 32140-42)

$

$

Not available

29

Toro 294710

Belt Guide-Rear

$

$

Currently unavailable

30

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

31

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Toro 29-6610

Rear Safety Shield
(Superseded to 38-2890)

$

$

Not available

33

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

34

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

35

Toro 29-4750

BELT GUIDE SPACER

$

$

Not available

36

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

37

Toro 29-4570

Yoke Bushing

$

$

Not available

38

Toro 2S5790

Blade

$

$

Currently unavailable

39

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

40

Toro 26-8730

Place Bolt

$

$

Not available

41

Toro 29-4480

Housing

$

$

Not available

42

Toro 2210-199

Head Bolt Stud

$

$

Not available

43

Toro 2210-198

Washer

$

$

Currently unavailable

Toro 6-9739

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
