23158 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 001000001 - 001999999) (1981) HANDLE ASSEMBLY Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

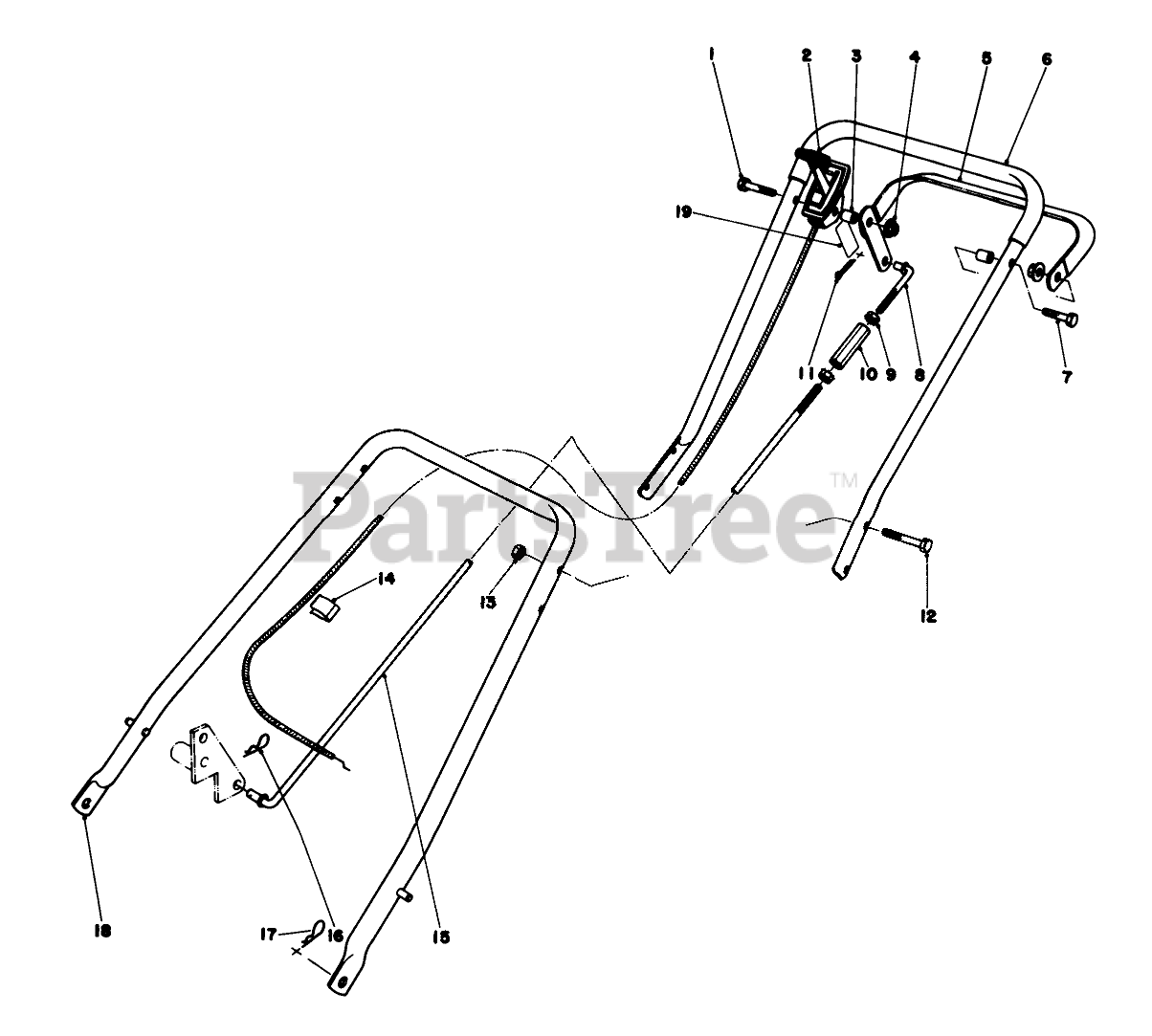

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 29-8610

THROTTLE CONTROL

$

$

Not available

3

Toro 25-2980

Spacer

$

$

Not available

4

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

5

Toro 29-4700

Control Bail (Incl. Ref. #19)

$

$

Not available

6

Toro 26-7840

UPPER HANDLE

$205.99

$

Usually ships in 3-6 days

0

7

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

8

Toro 29-4830

LINK CONTROL ROD

$

$

Not available

9

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

10

Toro 3-6481

CONTROL ROD SLEEVE

$

$

Not available

11

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

12

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

13

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

14

Toro 5-0748

Clamp

$

$

Not available

15

Toro 294850

Rod Control

$

$

Currently unavailable

16

Toro 3290-290

HAIRPIN COTTER

$

$

Not available

17

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

18

Toro 26-7830

LOWER HANDLE WA

$227.99

$

Usually ships in 3-6 days

0

19

Toro 29-8590

Decal Traction Control

$

$

Not available
