23144 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 004000001 - 004999999) (1974) HOUSING ASSEMBLY S.P. MODELS 23144 & 23123 Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

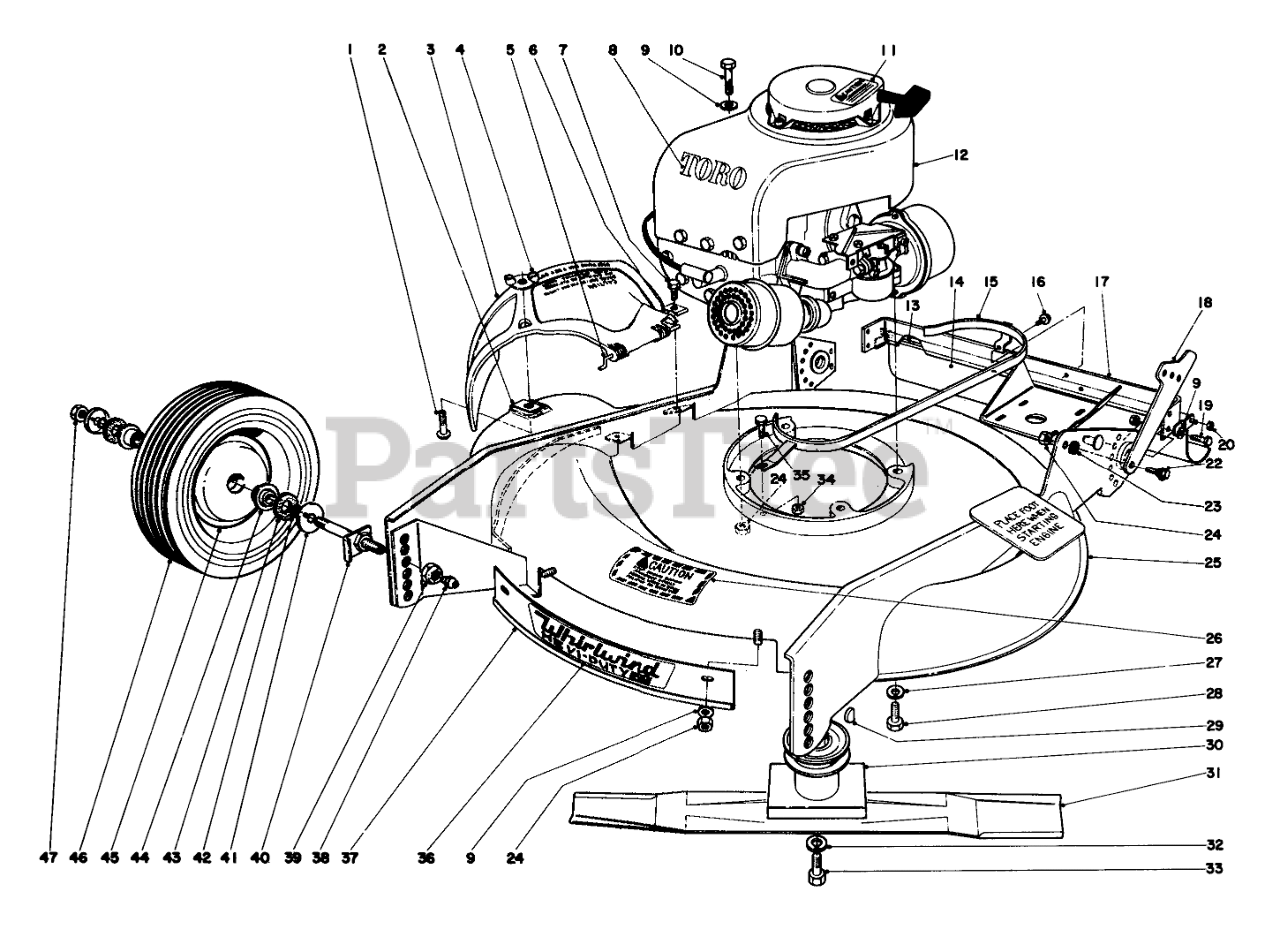

HOUSING ASSEMBLY S.P. MODELS 23144 & 23123 Parts Diagram

  • Title
1

$1.49

$

Usually ships in 3-6 days

0

2

Toro 3290-199

NUT-SPEED

$5.49

$

Usually ships in 3-6 days

0

3

Toro 12-2270

Deflector
(Superseded to 71-8640)

$

$

Not available

4

Toro 32103-14

NUT-WING SPECL

$15.99

$

In Stock, only 1 left!

0

6

Toro 3-2123

Clamp

$

$

Not available

7

Toro 32140-42

1/4-20X1/2 THDG SEMS

$

$

Not available

8

Toro 12-9140

DECAL

$

$

Currently unavailable

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

11

Toro 22-5180

Decal Caution

$

$

Not available

13

Toro 22-5170

SHIELD ROD

$

$

Not available

14

Toro 22-4930

Rear Safety Shield

$

$

Not available

15

Toro 3-6594

Belt Guide

$

$

Not available

16

Toro 32140-16

Screw
(Superseded to 32140-42)

$

$

Not available

17

Toro 22-5140

Support-Gear Case

$

$

Not available

18

Toro 3-2656

Latch

$

$

Not available

19

Toro 3210-5

SCREW-HH

$3.99

$

In Stock, Qty 6

0

20

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 32146-4

NUT-LOCK NI

$

$

Not available

22

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

23

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

24

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

27

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

28

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

29

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

30

Toro 5-0410

Blade Retainer

$

$

Not available

31

Toro 5-4012

Blade
(Superseded to 26-5790)

$

$

Not available

32

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

33

Toro 3-5246

SPECIAL SCREW

$

$

Not available

34

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 9

0

35

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 11-3630

Decal

$

$

Currently unavailable

38

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

39

Toro 3296-28

NUT-LOCK, NI

$1.99

$

In Stock, only 4 left!

0

40

Toro 3-4059

Spindle Ass-y. (Incl. Ref. #29)

$

$

Not available

41

Toro 3-4416

SLINGER

$

$

Not available

42

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

43

Toro 3-4417

Washer

$

$

Not available

44

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

45

Toro 2-5499

Wheel (Incl. Ref. #53)
(Superseded to 3-2179)

$142.99

$

In Stock, only 1 left!

0

46

Toro 234-18

1.75-8 SEMIPNEU TIRE

$

$

Not available

47

Toro 32146-11

Nut
(Superseded to 3296-19)

$1.49

$

In Stock, Qty 20+

0

Toro 2-9929

Loose Parts Assembly

$

$

Currently unavailable
