23102 - Toro Soil Cultivator for Dingo Compact Utility Loader (SN: 319000001 - 319999999) (2019) Hydraulic Motor Assembly No. 105-4573 Parts Diagram

Soil Cultivator for Dingo Compact Utility Loader

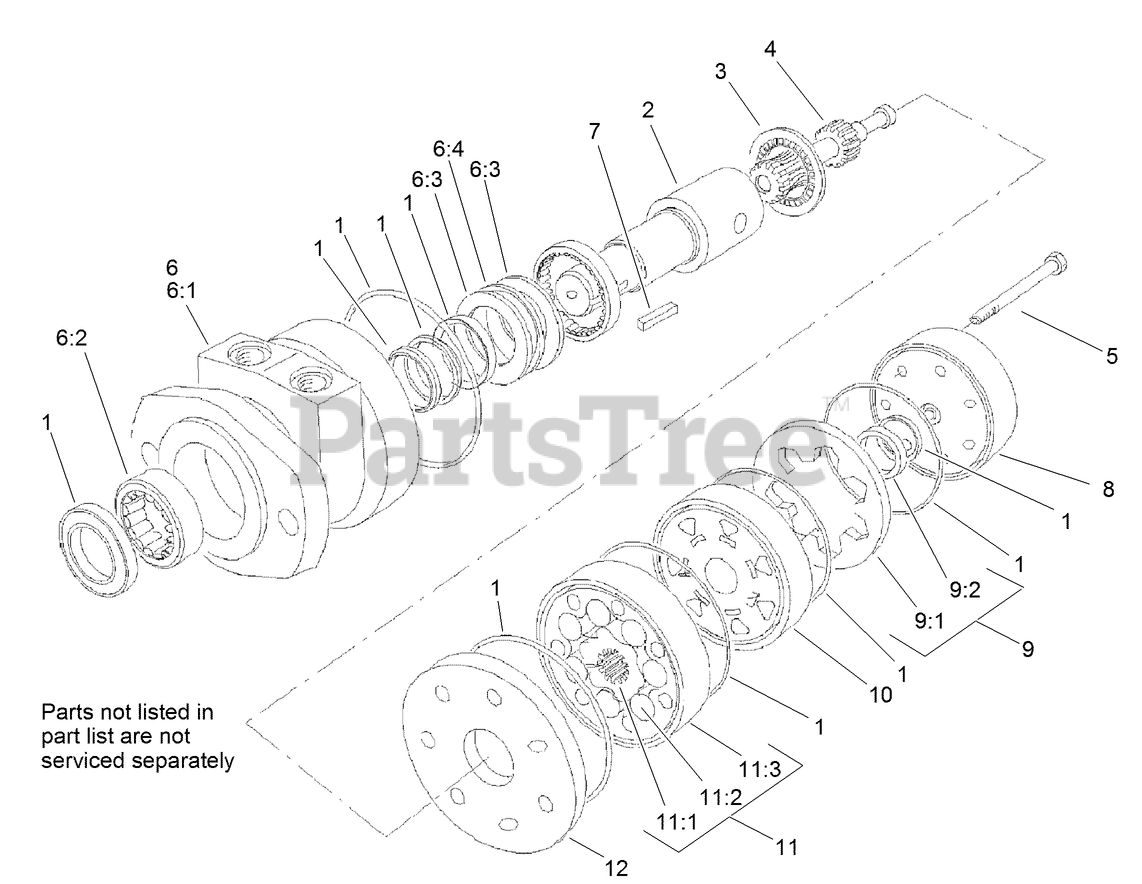

Hydraulic Motor Assembly No. 105-4573 Parts Diagram

  • Title

1

Toro 94-8178

See Supercession: 100-6131
(Superseded to 100-6131)

$112.99

$

Usually ships in 3-6 days

0

2

Toro 95-6137

COUPLING SHAFT

$1169.99

$

Usually ships in 3-6 days

0

3

Toro 76-0850

BEARING-THRUST

$49.99

$

Usually ships in 3-6 days

0

4

Toro 76-0930

LINK-DRIVE

$559.99

$

Usually ships in 3-6 days

0

5

Toro 76-1030

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

6

Toro 95-6136

HOUSING ASM

$1771.99

$

Usually ships in 3-6 days

0

6:1

HOUSING

Note: Not serviced separately

$

$

Not available

6:2

Bearing

Note: Not serviced separately

$

$

Not available

6:3

Washer-Thrust

Note: Not serviced separately

$

$

Not available

6:4

Bearing-Thrust

Note: Not serviced separately

$

$

Not available

7

Toro 11-5790

KEY-SQUARE

$23.99

$

Usually ships in 3-6 days

0

8

Toro 76-0940

END COVER ASM

$702.99

$

Usually ships in 3-6 days

0

9

Toro 95-6138

See Supercession: 76-0880
(Superseded to 76-0880)

$

$

Not available

9:1

Ring-Commutator

Note: Not serviced separately

$

$

Not available

9:2

Commutator

Note: Not serviced separately

$

$

Not available

10

Toro 92-9755

MANIFOLD

$1124.99

$

Usually ships in 3-6 days

0

11

Toro 76-0950

ROTOR SET

$2326.99

$

Usually ships in 3-6 days

0

11:1

Rotor

Note: Not serviced separately

$

$

Not available

11:2

Vane

Note: Not serviced separately

$

$

Not available

11:3

Stator

Note: Not serviced separately

$

$

Not available

12

Toro 106-1978

PLATE-WEAR

$

$

Currently unavailable
