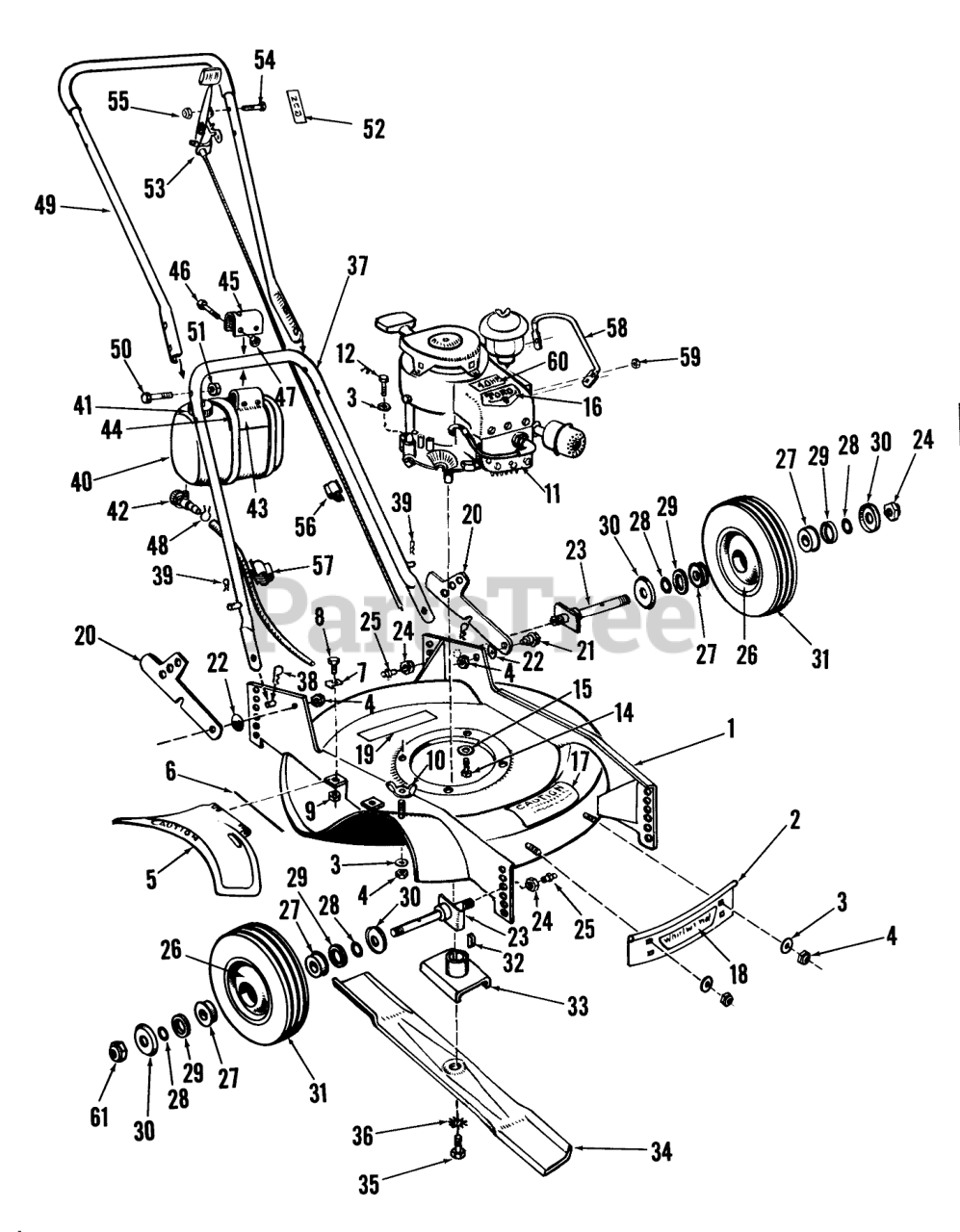

23100 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 005000001 - 005999999) (1965) 21" WHIRLWIND HEVI-DUTY HAND PROPELLED MOWER PARTS LIST Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

21" WHIRLWIND HEVI-DUTY HAND PROPELLED MOWER PARTS LIST Parts Diagram

  • Title

1

Toro 3-9960

Housing

$

$

Currently unavailable

2

Toro 3-4412

Guard

$

$

Currently unavailable

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

5

Toro 5-3311

Deflector
(Superseded to 71-8640)

$

$

Not available

6

Toro 3-2644

HINGE PIN

$

$

Not available

7

Toro 3-2123

Clamp

$

$

Not available

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 32146-8

Nut
(Superseded to 32153-4)

$0.99

$

Usually ships in 3-6 days

0

10

Toro 3-2625

Wing Nut

$

$

Not available

11

Toro 221-225

Engine

$

$

Currently unavailable

12

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro 5-1508

Decal

$

$

Currently unavailable

17

Toro 3-5301

Decal

$

$

Currently unavailable

18

Toro 3-4813

Decal

$

$

Currently unavailable

19

Toro 3-6432

Decal

$

$

Currently unavailable

20

Toro 3-2656

Latch

$

$

Not available

21

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

22

Toro 3290-211

WASHER-SPRING

$6.99

$

Usually ships in 3-6 days

0

23

Toro 3-4059

Spindle Assembly (Incl. Ref. No.25)

$

$

Not available

24

Toro 3296-28

NUT-LOCK, NI

$1.99

$

In Stock, only 4 left!

0

25

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

26

Toro 3-2839

Wheel Assy. (Incl. (2) Ref. No.27 Bearings)
(Superseded to 3-2179)

$142.99

$

In Stock, only 1 left!

0

27

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

28

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

29

Toro 3-4417

Washer

$

$

Not available

30

Toro 3-4416

SLINGER

$

$

Not available

31

Toro 234-18

1.75-8 SEMIPNEU TIRE

$

$

Not available

32

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0

33

Toro 3-8570

BLADE RETAINER WA

$

$

Not available

34

Toro 3-5215

Blade
(Superseded to 26-5790)

$

$

Not available

35

Toro 3-5246

SPECIAL SCREW

$

$

Not available

36

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

37

Toro 3-6850

Lower Handle

$

$

Not available

38

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

39

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

40

Toro 222-14

Tank
(Superseded to 52-2331)

$360.99

$

Usually ships in 3-6 days

0

41

Toro 222-15

Cap

$

$

Not available

42

Toro 304-71

.125 ID SHUTOFF VALVE

$

$

Not available

43

Toro 3-6345

FUEL TANK BRACKET

$

$

Not available

44

Toro 3-6346

TANK STRAP

$

$

Not available

Toro 321-10

SCREW-HH

Note: Not illustrated

$1.49

$

In Stock, Qty 20+

0

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0

45

Toro 3-6477

Clamp, Fuel Tank
(Superseded to 22-5060)

$

$

Not available

46

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

47

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

48

Toro 2210-87

Clamp
(Superseded to 2412-36)

$2.49

$

Usually ships in 3-6 days

0

49

Toro 2-4549

Upper Handle Assy.
(Superseded to 26-7840)

$181.99

$

Usually ships in 3-6 days

0

50

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 10

0

51

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

52

Toro 3-2067

Decal

$

$

Currently unavailable

53

Toro 3-5136

Throttle Control
(Superseded to 29-6720)

$

$

Not available

54

Toro 3251-13

10-24X1-1/8 RND HD MS

$

$

Not available

55

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

56

Toro 5-0748

Clamp

$

$

Not available

57

Toro 3-5181

CLAMP

$

$

Not available

58

Toro 3-8282

Arm

$

$

Not available

59

Toro 32146-4

NUT-LOCK NI

$

$

Not available

60

Toro 5-1507

Decal

$

$

Currently unavailable

61

Toro 32146-11

Nut
(Superseded to 3296-19)

$1.49

$

In Stock, Qty 20+

0
