23100 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 004000001 - 004999999) (1964) 21" WHIRLWIND HEVI-DUTY SELF PROPELLED MOWER PARTS LIST Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

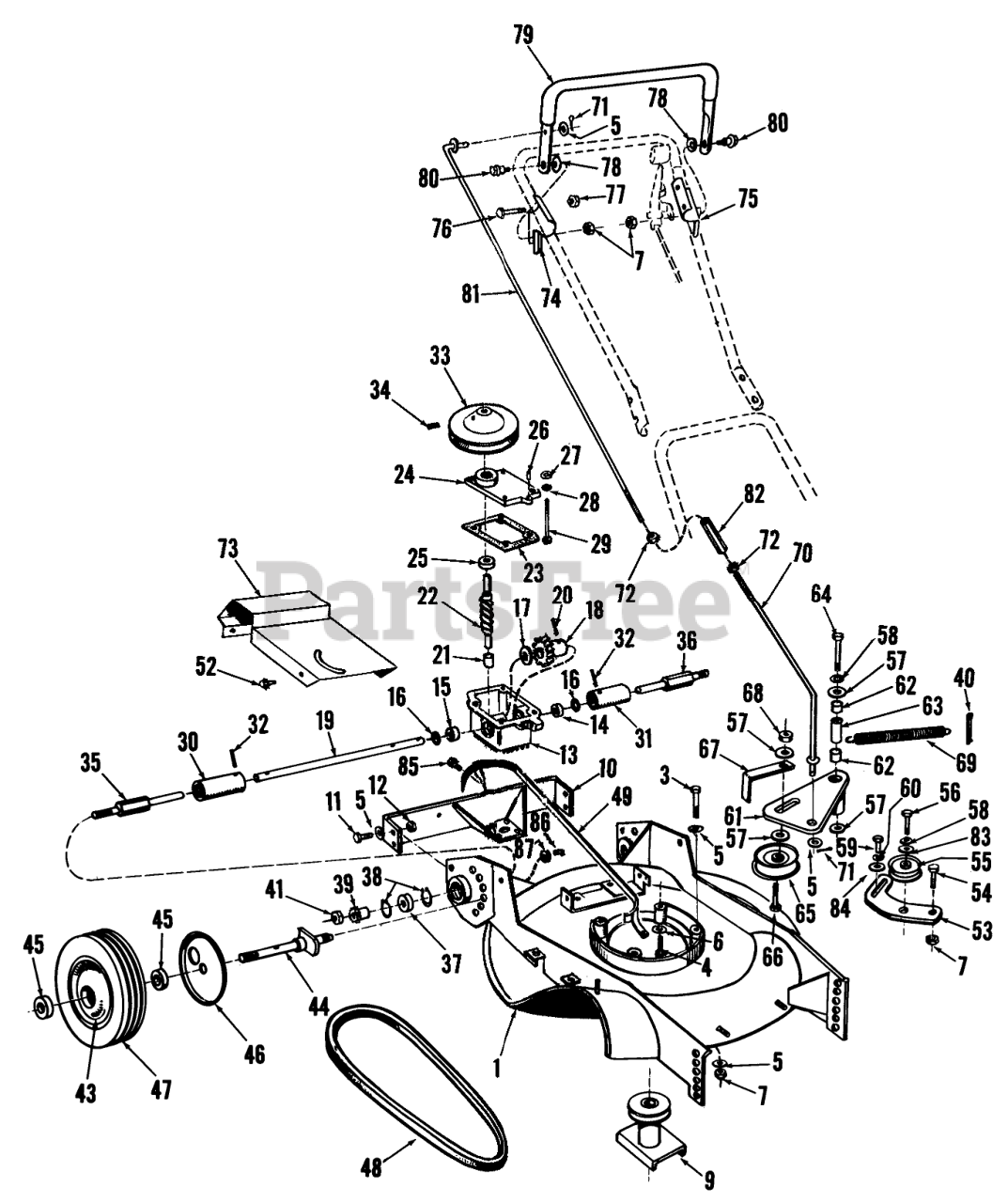

21" WHIRLWIND HEVI-DUTY SELF PROPELLED MOWER PARTS LIST Parts Diagram

  • Title

1

Toro 5-0350

Housing

$

$

Currently unavailable

Toro 221-142

Engine

$

$

Currently unavailable

3

Toro 322-13

SCREW-HH

$3.49

$

In Stock, Qty 7

0

4

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 7

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

9

Toro 5-0410

Blade Retainer

$

$

Not available

11

Toro 3210-5

SCREW-HH

$3.99

$

In Stock, Qty 6

0

12

Toro 3296-20

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

Toro 3-0129

Gear Case Assy. (Includes Ref. Nos.13 thru 29)

$

$

Not available

14

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

15

Toro 256-109

Bushing
(Superseded to 47-2900)

$6.49

$

In Stock, Qty 5

0

16

Toro 253-86

Seal
(Superseded to 47-7260)

$8.49

$

In Stock, only 2 left!

0

17

Toro 3-0724

THRUST WASHER

$

$

Not available

18

Toro 3-6436

WORM GEAR

$367.99

$

Usually ships in 3-6 days

0

20

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

21

Toro 252-51

.437 NEEDLE BEARING

$

$

Not available

22

Toro 3-4738

Worm Shaft
(Superseded to 5-3680)

$

$

Not available

23

Toro 3-0734

GASKET

$8.99

$

Usually ships in 3-6 days

0

24

Toro 3-6438

Cover Gear Box

$

$

Not available

25

Toro 251-144

Bearing
(Superseded to 47-7460)

$72.99

$

In Stock, only 1 left!

0

26

Toro 32121-1

3/16 X 1/2 ROLL PIN

$3.99

$

In Stock, Qty 5

0

27

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

29

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 7

0

30

Toro 2-9839

Clutch Assembly

$

$

Not available

31

Toro 2-9889

Clutch Assembly

$

$

Currently unavailable

32

Toro 32121-51

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

33

Toro 3-6442

Pulley Gear Box
(Superseded to 5-3681)

$

$

Not available

34

Toro 3246-3

SCREW-HSH

$12.99

$

Usually ships in 3-6 days

0

35

Toro 3-6452

OUTPUT SHAFT

$

$

Not available

36

Toro 3-6454

OUTPUT SHAFT

$279.99

$

Usually ships in 3-6 days

0

38

Toro 32151-8

1-1/8X056 IN SNP RING

$7.49

$

Usually ships in 3-6 days

0

41

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

Toro 3-5781

Nut
(Superseded to 3220-16)

$1.99

$

In Stock, Qty 5

0

45

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

46

Toro 3-6451

WHEEL COVER

$

$

Not available

48

Toro 3-6593

V-BELT

$121.99

$

Usually ships in 3-6 days

0

49

Toro 3-6594

Belt Guide

$

$

Not available

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

52

Toro 32140-18

Screw

$

$

Currently unavailable

53

Toro 3-6911

Arm, Auxiliary Idler

$

$

Not available

54

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

55

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

56

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

57

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

58

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

59

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

60

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

61

Toro 2-9909

Idler Arm (Incl.(1) Ref.62)
(Superseded to 3-6598)

$

$

Not available

62

Toro 256-1

BUSHING

$28.99

$

In Stock, only 2 left!

0

63

Toro 3-6468

ROLLED SPACER

$

$

Not available

64

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

65

Toro 3-4243

IDLER PULLEY R

$

$

Not available

66

Toro 3211-8

SCREW-HH

$3.99

$

In Stock, Qty 9

0

67

Toro 3-6471

Hook

$

$

Not available

68

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

70

Toro 3-6472

CONTROL ROD

$

$

Not available

71

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

72

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 9

0

73

Toro 3-6473

Shroud

$

$

Not available

76

Toro 3251-11

10-24X1-1/4 PAN HD MS

$

$

Not available

77

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

78

Toro 3290-211

WASHER-SPRING

$6.99

$

Usually ships in 3-6 days

0

79

Toro 2-9849

Control Bail
(Superseded to 19-7180)

$

$

Not available

80

Toro 3-1846

Screw
(Superseded to 5-2490)

$9.49

$

Usually ships in 3-6 days

0

81

Toro 3-6478

Control Rod

$

$

Not available

82

Toro 3-6481

CONTROL ROD SLEEVE

$

$

Not available
