23100 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 003000001 - 003999999) (1973) HANDLE ASSEMBLY H. P. MODEL Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

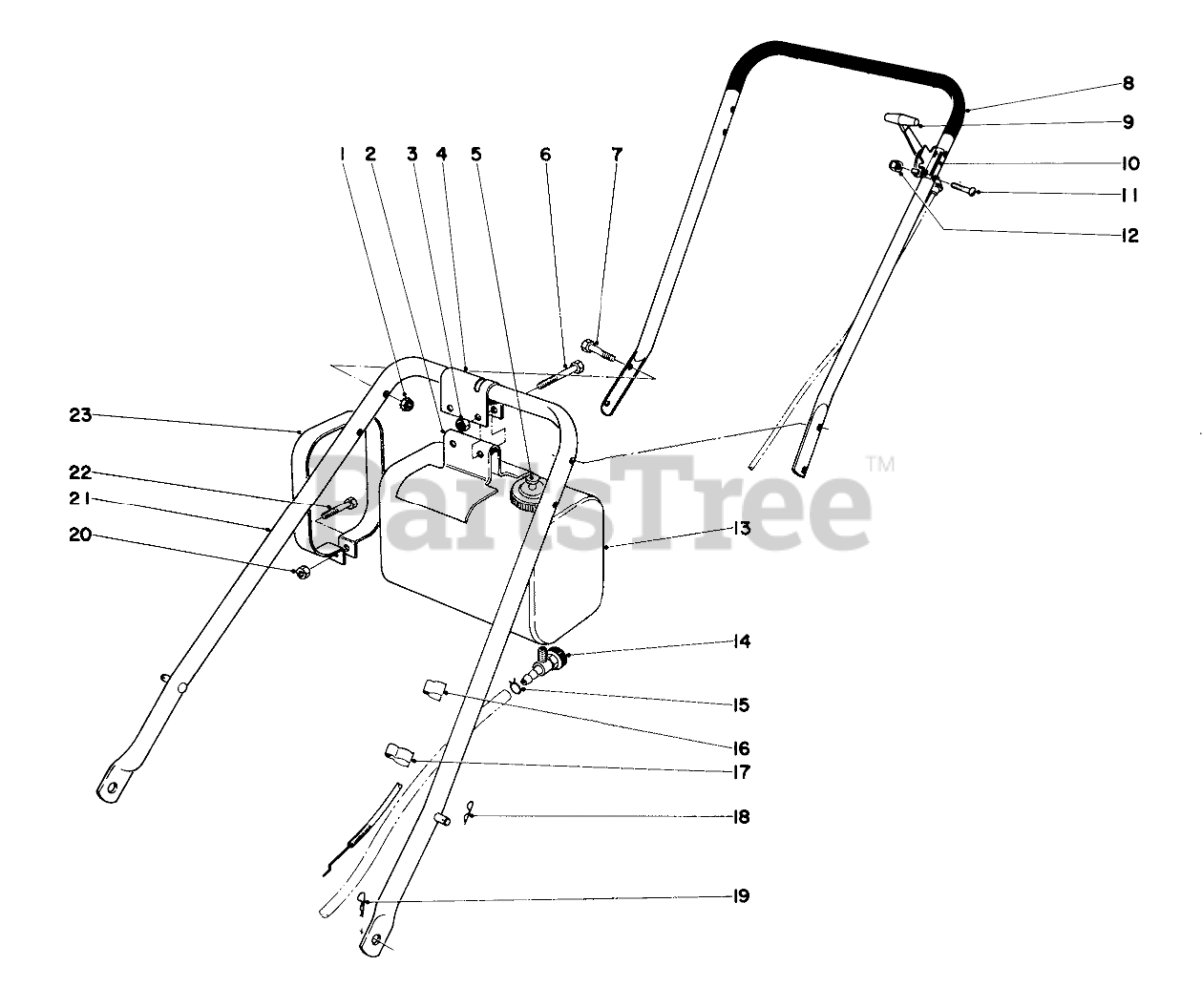

HANDLE ASSEMBLY H. P. MODEL Parts Diagram

  • Title

1

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

2

Toro 3-6345

FUEL TANK BRACKET

$

$

Not available

3

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

4

Toro 3-6477

Clamp, Fuel Tank
(Superseded to 22-5060)

$

$

Not available

5

Toro 222-15

Cap

$

$

Not available

6

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 10

0

8

Toro 3-7569

Upper Handle Assembly
(Superseded to 26-7840)

$181.99

$

Usually ships in 3-6 days

0

9

Toro 3-5136

Throttle Control
(Superseded to 29-6720)

$

$

Not available

10

Toro 3-2067

Decal

$

$

Currently unavailable

11

Toro 3251-13

10-24X1-1/8 RND HD MS

$

$

Not available

12

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 222-14

Tank
(Superseded to 52-2331)

$360.99

$

Usually ships in 3-6 days

0

14

Toro 304-71

.125 ID SHUTOFF VALVE

$

$

Not available

15

Toro 2210-87

Clamp
(Superseded to 2412-36)

$2.49

$

Usually ships in 3-6 days

0

16

Toro 5-0748

Clamp

$

$

Not available

17

Toro 3-5181

CLAMP

$

$

Not available

18

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

19

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

20

Toro 32146-8

Nut
(Superseded to 32153-4)

$0.99

$

Usually ships in 3-6 days

0

21

Toro 3-6850

Lower Handle

$

$

Not available

22

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 3-6346

TANK STRAP

$

$

Not available
