2308 - Troy-Bilt Horse III Rear-Tine Tiller Forward/Neutral/Reverse Lever & Yoke Assembly Parts Diagram

Horse III Rear-Tine Tiller

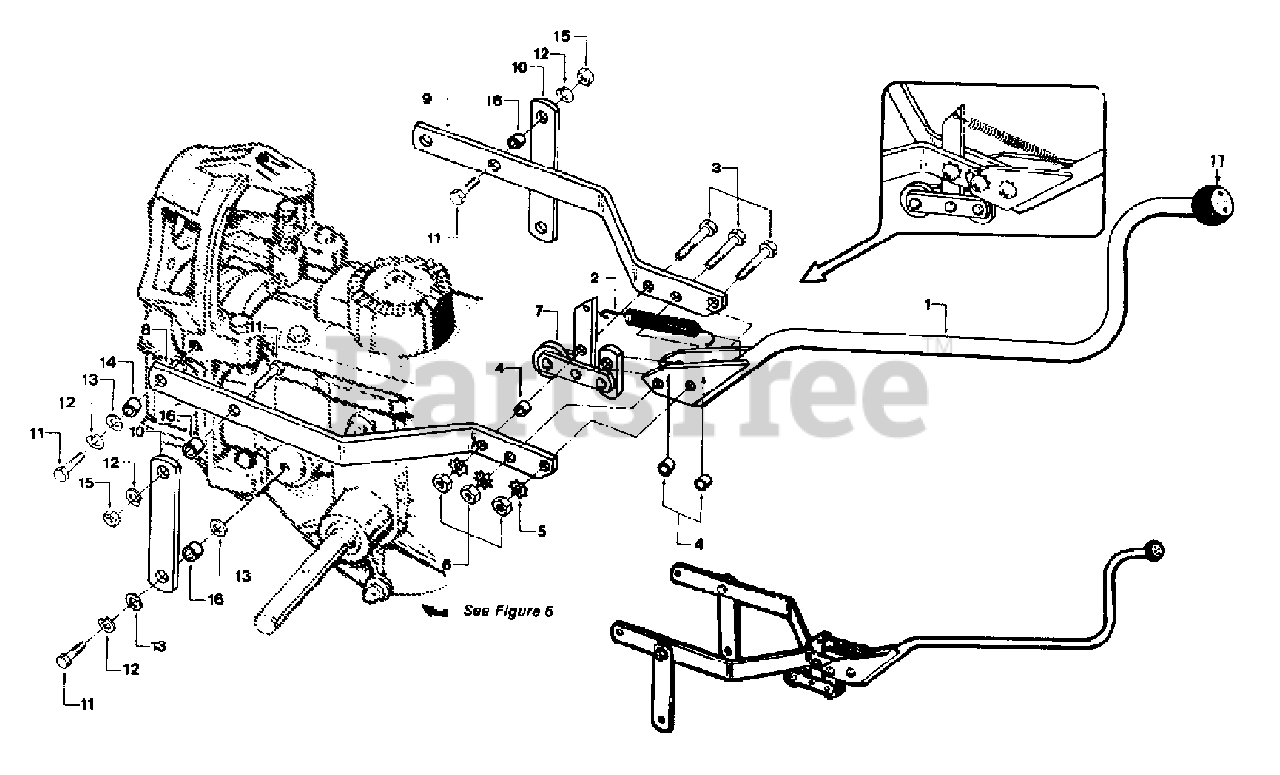

Forward/Neutral/Reverse Lever & Yoke Assembly Parts Diagram

  • Title

1

Troy-Bilt GW-2176

LEVER - forward/neutral/reverse
(Superseded to 647-04006)

Note: Includes plastic knob with plastic decal inlay. Lever and knob available as complete assembly only

$134.99

$

In Stock, only 1 left!

0

2

Troy-Bilt GW-2163

SPRING - clutch pawl
(Superseded to 1908156)

$15.99

$

In Stock, Qty 20+

0

3

Troy-Bilt GW-9466

BOLT - hex. hd., 5/16"-18 x 1-1/2"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt GW-2447

BUSHING - 3/8" long

Note: Replaces 2160

$6.99

$

In Stock, Qty 20+

0

5

Troy-Bilt GW-9931

LOCKWASHER - external tooth, 5/16"
(Superseded to 736-0607)

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt GW-9801

NUT - hex., 5/16"-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt GW-2162

ROLLER ASSEMBLY -forward/neutral/reverse shift lever
(Superseded to 686-04006)

$93.99

$

In Stock, only 1 left!

0

8

Troy-Bilt GW-2165-1

YOKE - left side
(Superseded to 1900468010)

$47.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt GW-2165-2

YOKE - right side
(Superseded to 1900469010)

$42.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt GW-2164

LINK- yoke pivot, left and right, & 7/8" long
(Superseded to 1900860001)

$16.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt GW-9710

BOLT - hex. hd., 3/8"-18 x 1"
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt GW-9913

LOCKWASHER - spring lock, 3/8"
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt GW-9904

WASHER - flat, 3/8", S.A.E
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

14

Troy-Bilt GW-2146

BUSHING - spacer, 21/64"/.325") long, yoke to engine mount

$6.49

$

In Stock, only 4 left!

0

15

Troy-Bilt GW-9802

NUT - hex., 3/8"-16
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt GW-1113-1

BUSHING - spacer, 19/64" (.300") long, yoke link
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

17

KNOB -

Note: plastic knob not available separately due to special procedure required to attach knob to lever

$

$

Not available
