23022 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 008000001 - 008999999) (1978) ENGINE BRIGGS & STRATTON MODEL 130902-0543-01 Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

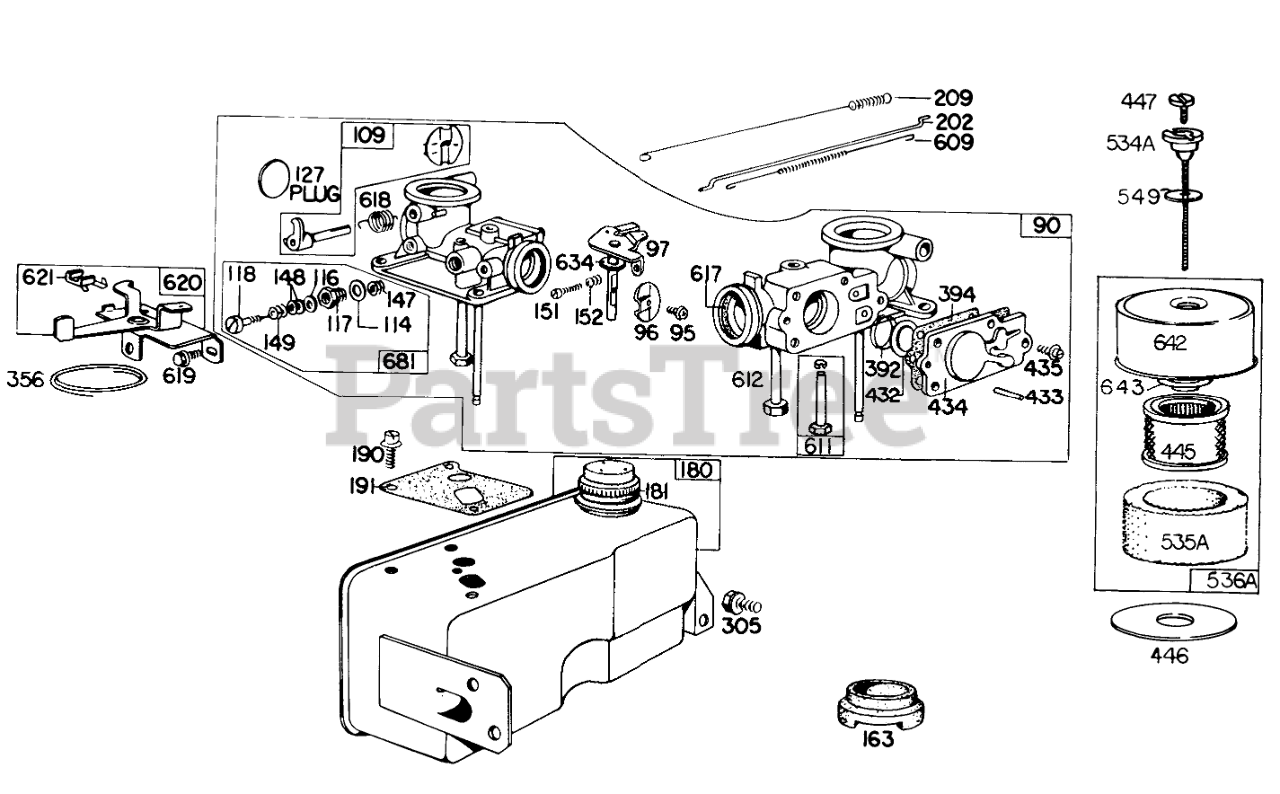

ENGINE BRIGGS & STRATTON MODEL 130902-0543-01 Parts Diagram

  • Title

90

Briggs & Stratton 299448

Carburetor Assembly

$

$

Not available

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 211237

Valve

$8.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 299692

Shaft and Leaver

$14.99

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 390076

Shaft Assembly Choke

$13.99

$

In Stock, only 1 left!

0

114

Briggs & Stratton 66594

Gasket Valve Nut
(Superseded to 691608)

$5.99

$

In Stock, Qty 20+

0

116

Briggs & Stratton 65978

Packing-Needle
(Superseded to 691606)

$5.99

$

In Stock, only 3 left!

0

117

Briggs & Stratton 230590

Nut-Needle Valve
(Superseded to 690504)

$3.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 23433

Valve-Needle
(Superseded to 690266)

$9.49

$

In Stock, only 3 left!

0

127

Briggs & Stratton 22831

Plug-Welch
(Superseded to 691585)

$6.99

$

In Stock, Qty 5

0

147

Briggs & Stratton 230591

Seat-Needle Valve
(Superseded to 692134)

$9.49

$

In Stock, only 4 left!

0

148

Briggs & Stratton 22235

Washer-Needle Valve
(Superseded to 690257)

$4.99

$

In Stock, only 1 left!

0

149

Briggs & Stratton 26336

Spring Needle Valve
(Superseded to 691592)

$3.99

$

In Stock, only 4 left!

0

151

Briggs & Stratton 92634

Screw-Round Head
(Superseded to 691624)

$3.99

$

Usually ships in 2-12 days

0

152

Briggs & Stratton 260575

Spring-Adjustment
(Superseded to 691783)

$7.99

$

In Stock, Qty 11

0

163

Briggs & Stratton 27660

51048 SUP.SHEET TIL

$

$

Not available

180

Briggs & Stratton 297257

Tank Assembly-Fuel

$

$

Not available

181

Briggs & Stratton 392304

Cap-Fuel Tank
(Superseded to 394818S)

$33.99

$

In Stock, only 1 left!

0

190

Briggs & Stratton 93341

Screw-Fuel Tank Mtg.
(Superseded to 692200)

$

$

Not available

191

Briggs & Stratton 270073

Gasket-Fuel Tank Mtg.

Note: Included in Gasket Set-Part No. 297616.

$4.99

$

In Stock, only 3 left!

0

202

Briggs & Stratton 260654

Link-Throttle

$

$

Not available

209

Briggs & Stratton 261047

Spring-Gov.

$5.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

356

Briggs & Stratton 298479

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

392

Briggs & Stratton 260455

Spring-Fuel Pump
(Superseded to 692206)

$4.49

$

In Stock, Qty 8

0

394

Briggs & Stratton 270026

Diaphragm

$3.99

$

In Stock, Qty 20+

0

432

Briggs & Stratton 221377

Cap-Spring
(Superseded to 690766)

$4.99

$

In Stock, only 3 left!

0

433

Briggs & Stratton 93265

Pin-Roll
(Superseded to 690296)

$6.49

$

Usually ships in 2-12 days

0

434

Briggs & Stratton 210959

Cover-Diaphragm
(Superseded to 691713)

$10.99

$

In Stock, only 1 left!

0

435

Briggs & Stratton 93141

Screw
(Superseded to 691619)

$6.49

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 392308

Cartridge-Air Cleaner
(Superseded to 392308S)

$16.99

$

Usually ships in 2-12 days

0

446

Briggs & Stratton 222593

Base-Air Cleaner
(Superseded to 691735)

$17.99

$

Usually ships in 2-12 days

0

447

Briggs & Stratton 93817

Screw-Cover Mtg.
(Superseded to 93913)

$3.99

$

In Stock, only 1 left!

0

534A

Briggs & Stratton 93818

Screw-Air Cleaner
(Superseded to 94005)

$16.99

$

Usually ships in 2-12 days

0

535A

Briggs & Stratton 270979

Element-Air Cleaner
(Superseded to 271466)

$4.49

$

In Stock, Qty 20+

0

536A

Briggs & Stratton 392368

Cleaner Assy.-Air

$50.99

$

Usually ships in 2-12 days

0

549

Briggs & Stratton 270978

Washer-Air Cleaner

$5.49

$

In Stock, only 1 left!

0

609

Briggs & Stratton 260029

Spring-Throttle Link

$11.99

$

Usually ships in 2-12 days

0

611

Briggs & Stratton 391813

Tube-Pick-Up

$

$

Not available

612

Briggs & Stratton 296811

Pipe-Fuel
(Superseded to 497413S)

$7.49

$

In Stock, Qty 8

0

617

Briggs & Stratton 270074

Seal-Intake Elbow Tube
(Superseded to 691031)

$5.49

$

In Stock, Qty 20+

0

618

Briggs & Stratton 260648

Spring-Choke Return

$8.99

$

Usually ships in 2-12 days

0

619

Briggs & Stratton 93380

Screw-Control Plate Mtg.

$1.99

$

Usually ships in 2-12 days

0

620

Briggs & Stratton 297548

Plate Assy.-Carburetor Control

$36.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 297472

Switch-Stop
(Superseded to 297472S)

$

$

Not available

634

Briggs & Stratton 270167

Washer (Felt)

$4.99

$

In Stock, Qty 13

0

642

Briggs & Stratton 222626

Cover Air Cleaner

$

$

Not available

643

Briggs & Stratton 222594

Cup-Air Cleaner

$4.49

$

In Stock, only 1 left!

0

681

Briggs & Stratton 299060

Kit-Needle Valve

$21.99

$

In Stock, only 3 left!

0
