23022 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 007000001 - 007999999) (1977) BRIGGS & STRATTON ENGINE MODEL 130902-0508-01 Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

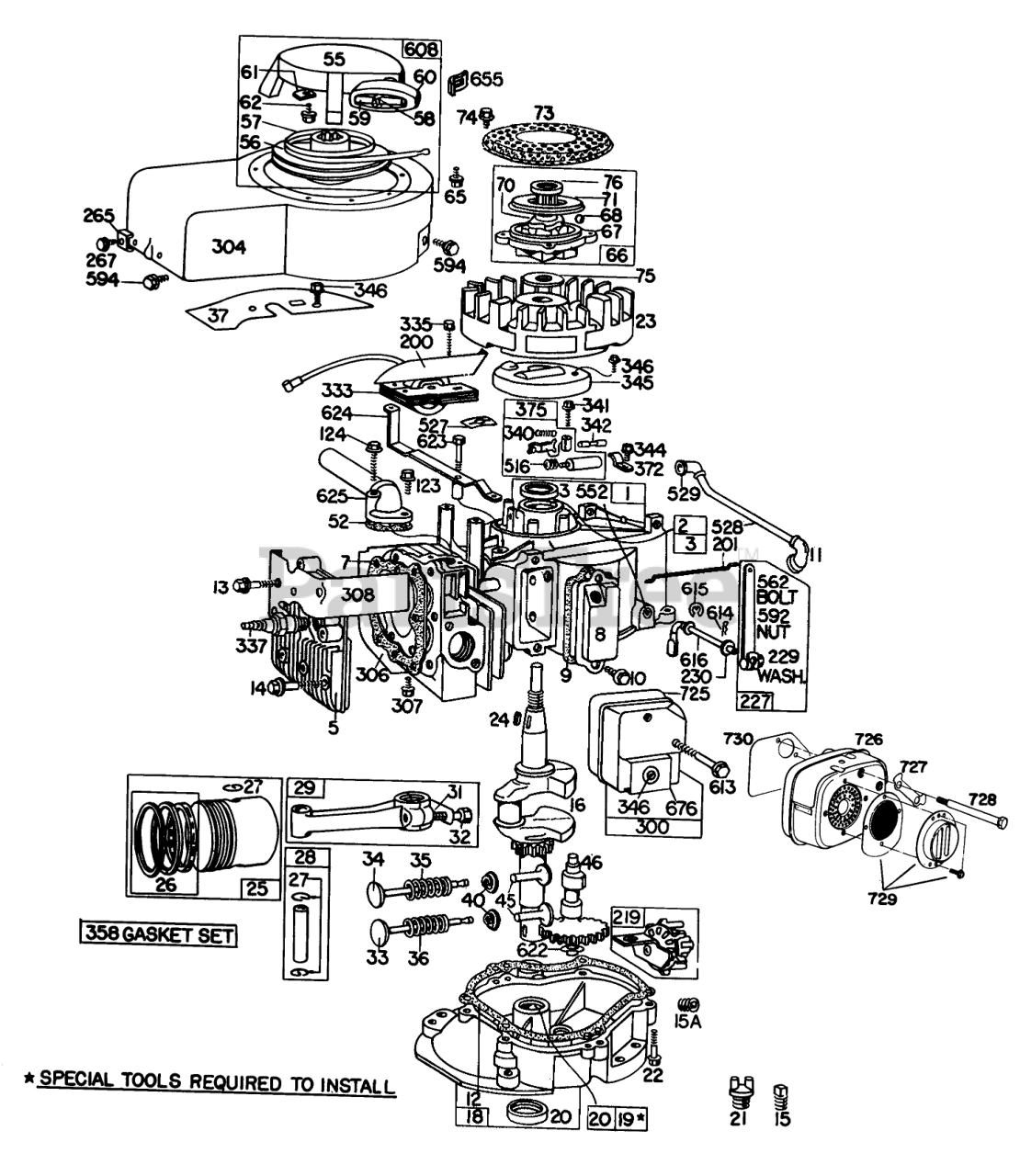

BRIGGS & STRATTON ENGINE MODEL 130902-0508-01 Parts Diagram

  • Title

1

Toro 299446

Cylinder Assembly

$

$

Currently unavailable

2

Briggs & Stratton 297565

Bushing-Cylinder

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 89660

Seal-Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 211542

Head-Cylinder
(Superseded to 691716)

$

$

Not available

7

Briggs & Stratton 270383

Gasket-Cylinder Head
(Superseded to 272157S)

Note: Included in Gasket Set-Part No. 297616.

$6.49

$

In Stock, Qty 7

0

8

Briggs & Stratton 297261

Breather-Valve Chamber
(Superseded to 495758)

$45.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27549

Gasket Breather
(Superseded to 27549S)

Note: Included in Gasket Set-Part No. 297616.

$3.99

$

In Stock, Qty 14

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 67738

Grommet-Breather

$9.49

$

In Stock, only 1 left!

0

12

Briggs & Stratton 270069

Gasket-Crankcase.015" Thick (Std.)

Note: Included in Gasket Set-Part No. 297616.

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 270122

Gasket-Crankcase-.005" thick

Note: Included in Gasket Set-Part No. 297616.

$9.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 270123

Gasket-Crankcase-.009" thick

Note: Included in Gasket Set-Part No. 297616.

$8.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 93368

Screw-Cylinder Head
(Superseded to 691640)

$3.49

$

In Stock, Qty 12

0

14

Briggs & Stratton 93369

Screw-Cylinder Head
(Superseded to 691659)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 91084

Plug-Pipe
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 261370

Crankshaft
(Superseded to 397121)

$114.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 297587

Sump Oil

$195.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 297604

Bushing-Oil Sump

$19.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 294167

Seal-Oil
(Superseded to 391485)

$9.99

$

In Stock, Qty 5

0

21

Briggs & Stratton 66768

Plug-Oil
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93032

Screw
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 297229

Flywheel

$

$

Not available

24

Briggs & Stratton 61760

Key Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 298904

Piston Assy.-Std.
(Superseded to 793214)

$

$

Not available

Briggs & Stratton 298905

Piston Assy.-010"O.S.

$50.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 298906

Piston Assy.-020"O.S.

$

$

Not available

Briggs & Stratton 298907

Piston Assy. .030" O.S.

$

$

Not available

26

Briggs & Stratton 298982

Ring Set (Std.)

$48.99

$

In Stock, Qty 8

0

Briggs & Stratton 298983

Ring Set (.010" O.S.)

$

$

Not available

Briggs & Stratton 298984

Ring Set (.020" O.S.)

$35.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 298985

Lock-Piston Pin

$23.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Iock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

Pin Ass-y-Piston

$8.99

$

In Stock, only 3 left!

0

Briggs & Stratton 298908

Pin-Piston (.005 Undersize)

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 299429

Rod Assy.-Connecting

$27.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 221876

Lock

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92296

Screw, Conn.Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 211119

Valve Exhaust
(Superseded to 211119S)

$

$

Not available

34

Briggs & Stratton 261044

Valve-Intake
(Superseded to 261044S)

$

$

Not available

35

Briggs & Stratton 260552

Spring-Valve
(Superseded to 690520)

$5.49

$

In Stock, only 3 left!

0

36

Briggs & Stratton 26478

1531A GIL 3 1/2HP T
(Superseded to 692180)

$6.49

$

In Stock, only 1 left!

0

37

Briggs & Stratton 222443

Guard-Flywheel
(Superseded to 691732)

$9.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 93312

Gear-Cam
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 260642

Tappet-Valve
(Superseded to 690509)

$

$

Not available

46

Briggs & Stratton 211117

Gear Cam
(Superseded to 691164)

$59.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 270070

Gasket-Intake Elbow Mtg.

$5.99

$

In Stock, only 2 left!

0

55

Briggs & Stratton 299431

Housing-Rewind Starter

$

$

Not available

56

Briggs & Stratton 295871

Pulley-Rewind

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 294303

Spring-Rewind
(Superseded to 490179)

$

$

Not available

58

Briggs & Stratton 66884

Rope-Rewind
(Superseded to 692188)

$8.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 230228

Pin-Starter Grip
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 66728

Grip-Starter
(Superseded to 490652)

$5.49

$

In Stock, Qty 12

0

61

Briggs & Stratton 68848

Bumper-Starter Pulley
(Superseded to 68848S)

$1.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 93254

Screw-Pulley Bumper Mtg.

$3.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 93067

Screw
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

66

Briggs & Stratton 298310

Clutch Assembly
(Superseded to 399671)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 211383

Housing
(Superseded to 394897)

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298436

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 14

0

73

Briggs & Stratton 221923

Screen-Rewind Starter

$29.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 11

0

75

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

76

Briggs & Stratton 68238

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 14

0

123

Briggs & Stratton 93512

Screw Elbow Mtg.

$3.49

$

Usually ships in 2-12 days

0

124

Briggs & Stratton 93367

Screw-Intake EIbow Mtg.

$3.49

$

Usually ships in 2-12 days

0

200

Briggs & Stratton 221480

Guide-Air
(Superseded to 691745)

$11.99

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 260649

Link-Govemor

$9.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 297249

Oil Slinger Gear, Gov. & Bracket
(Superseded to 496062)

$23.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 297583

Lever Assy.-Governor

$

$

Not available

229

Briggs & Stratton 220680

Washer
(Superseded to 690390)

$3.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 221559

Clamp-Casing

$3.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 22372

Clamp-Casing
(Superseded to 692179)

$4.49

$

In Stock, only 4 left!

0

267

Briggs & Stratton 93469

Screw
(Superseded to 691044)

$3.99

$

In Stock, Qty 6

0

300

Briggs & Stratton 297274

Muffler-Exhaust
(Superseded to 494585)

$23.99

$

In Stock, only 1 left!

0

304

Toro 299332

Housing-Blower

$

$

Currently unavailable

306

Briggs & Stratton 221484

Shield-Cylinder
(Superseded to 223804)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

308

Briggs & Stratton 221452

Cover-Cylinder Head

$12.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 298316

Armature-Magneto
(Superseded to 397358)

$53.99

$

In Stock, Qty 20+

0

335

Briggs & Stratton 93414

Screw
(Superseded to 691621)

$7.49

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 293918

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

340

Briggs & Stratton 26018

Spring Breaker Arm

$7.49

$

In Stock, only 1 left!

0

341

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

342

Briggs & Stratton 65704

Plunger
(Superseded to 65704S)

$6.49

$

In Stock, Qty 10

0

344

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

345

Briggs & Stratton 220366

Cover Breaker Pt. & Cond.

$11.99

$

In Stock, only 2 left!

0

346

Briggs & Stratton 93014

Screw
(Superseded to 93014GS)

$14.99

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 297616

Gasket Set
(Superseded to 496659)

$28.99

$

Usually ships in 2-12 days

0

372

Briggs & Stratton 220477

Camp-Condenser

$1.49

$

Usually ships in 2-12 days

0

375

Briggs & Stratton 294628

Set

$

$

Not available

516

Briggs & Stratton 260374

Spring Connector

$7.99

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 93376

Dip-Breather Pipe

$4.49

$

In Stock, only 1 left!

0

528

Briggs & Stratton 230717

55323 REVISED PARTS

$

$

Not available

529

Briggs & Stratton 67608

Grommet-Breather Tube

$

$

Not available

552

Briggs & Stratton 230735

Bushing-Governor Shaft

$2.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 231082

Nut (Governor Control Lever)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

592

Briggs & Stratton 90356

Nut
(Superseded to 690276)

$3.99

$

Usually ships in 2-12 days

0

594

Briggs & Stratton 93559

Screw
(Superseded to 690810)

$3.49

$

In Stock, only 3 left!

0

Mounting Sem

Note: Not Illustrated.

$

$

Not available

608

Toro 299334

Starter Assy.-Rewind

$

$

Currently unavailable

613

Briggs & Stratton 93377

Screw-Hex. Hd.

$4.49

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 93306

Pin-Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-Ring

$5.99

$

In Stock, only 3 left!

0

616

Briggs & Stratton 230714

Crank-Governor

$12.99

$

Usually ships in 2-12 days

0

622

Briggs & Stratton 260676

Washer-Spring (Used between cam gear box and oil slingerbracket)

$

$

Not available

623

Toro 93566

Screw-ShouIder

$

$

Currently unavailable

624

Briggs & Stratton 297252

Lever-Linkage

$13.99

$

Usually ships in 2-12 days

0

625

Briggs & Stratton 297254

Elbow and Tube-Intake

$11.99

$

Usually ships in 2-12 days

0

725

Briggs & Stratton 221885

Heat Shield

$12.99

$

Usually ships in 2-12 days

0

726

Briggs & Stratton 391313

Muffler (Incl. Ref. #727,728 & 730)
(Superseded to 692304)

$34.99

$

In Stock, only 4 left!

0

727

Briggs & Stratton 222263

Lockplate
(Superseded to 691729)

$5.99

$

In Stock, only 3 left!

0

728

Briggs & Stratton 93704

Capscrew

$15.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 392194

Deflector Assem.

$22.99

$

Usually ships in 2-12 days

0

730

Briggs & Stratton 221885

Heat Shield

$12.99

$

Usually ships in 2-12 days

0
