23022 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 003000001 - 003999999) (1983) ENGINE BRIGGS & STRATTON MODEL 130902-1162-01 Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

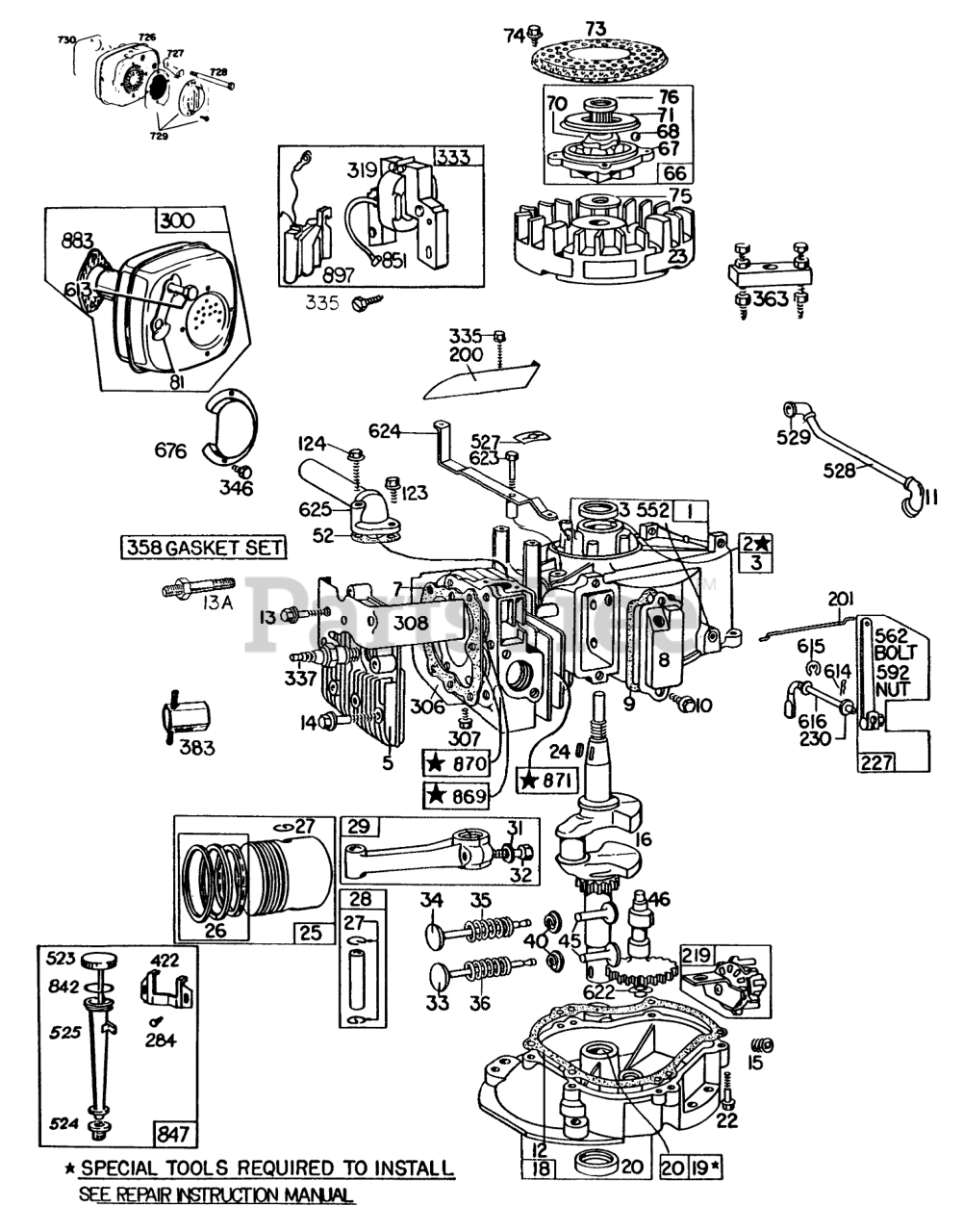

ENGINE BRIGGS & STRATTON MODEL 130902-1162-01 Parts Diagram

  • Title

1

Briggs & Stratton 396006

Cylinder Assembly

$160.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 297565

Bushing-Cylinder

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 211542

Head-Cylinder
(Superseded to 691716)

$

$

Not available

7

Briggs & Stratton 270383

Gasket-Cylinder Head
(Superseded to 272157S)

Note: Included in Gasket Set-Part No. 297616.

$6.49

$

In Stock, Qty 7

0

8

Briggs & Stratton 297261

Breather-Valve Chamber
(Superseded to 495758)

$45.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27549

Gasket Breather
(Superseded to 27549S)

Note: Included in Gasket Set-Part No. 297616.

$3.99

$

In Stock, Qty 14

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 67738

Grommet-Breather

$9.49

$

In Stock, only 1 left!

0

12

Briggs & Stratton 270069

Gasket-Crankcase.015" Thick (Std.)

Note: Included in Gasket Set-Part No. 297616.

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 270122

Gasket-Crankcase-.005" thick

Note: Included in Gasket Set-Part No. 297616.

$9.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 270123

Gasket-Crankcase-.009" thick

Note: Included in Gasket Set-Part No. 297616.

$8.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 93368

Screw-Cylinder Head
(Superseded to 691640)

$3.49

$

In Stock, Qty 12

0

13A

Briggs & Stratton 93583

Stud-Cylinder Head
(Superseded to 691690)

$

$

Not available

14

Briggs & Stratton 93369

Screw-Cylinder Head
(Superseded to 691659)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 93418

Plug
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 261370

Crankshaft
(Superseded to 397121)

Note: Included in Gasket Set-Part No. 297616.

$114.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 297587

Sump Oil

$195.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 297604

Bushing-Oil Sump

$19.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 391485

Seal-Oil

$9.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 93032

Screw
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 297229

Flywheel

$

$

Not available

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 298904

Piston Assy.-Std.
(Superseded to 793214)

$

$

Not available

Briggs & Stratton 298905

Piston Assy.-010"O.S.

$50.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 298906

Piston Assy.-020"O.S.

$

$

Not available

Briggs & Stratton 298907

Piston Assy. .030" O.S.

$

$

Not available

26

Briggs & Stratton 298982

Ring Set (Std.)

Note: For Chrome Piston Ring Set-Standard Size-Order Part No. 299742.

$48.99

$

In Stock, Qty 8

0

Briggs & Stratton 298983

Ring Set (.010" O.S.)

$

$

Not available

Briggs & Stratton 298984

Ring Set (.020" O.S.)

$35.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 298985

Lock-Piston Pin

$23.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Iock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

Pin Ass-y-Piston

$8.99

$

In Stock, only 3 left!

0

Briggs & Stratton 298908

Pin-Piston (.005 Undersize)

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 299429

Rod Assy.-Connecting

Note: For Connecting Rod with .020" undersize Crank-pin Bore-Order No. 390459.

$27.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222282

Washer-Flat

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92296

Screw, Conn.Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 211119

Valve Exhaust
(Superseded to 211119S)

$

$

Not available

34

Briggs & Stratton 261044

Valve-Intake
(Superseded to 261044S)

$

$

Not available

35

Briggs & Stratton 260552

Spring-Valve
(Superseded to 690520)

$5.49

$

In Stock, only 3 left!

0

36

Briggs & Stratton 26478

1531A GIL 3 1/2HP T
(Superseded to 692180)

$6.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 93312

Gear-Cam
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 260642

Tappet-Valve
(Superseded to 690509)

$

$

Not available

46

Briggs & Stratton 211117

Gear Cam
(Superseded to 691164)

$59.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 270070

Gasket-Intake Elbow Mtg.

Note: Included in Gasket Set-Part No. 297616.

$5.99

$

In Stock, only 2 left!

0

66

Briggs & Stratton 394558

Housing-Starter Clutch
(Superseded to 399671)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Ball-Clutch

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298436

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 14

0

73

Briggs & Stratton 221923

Screen-Rewind Starter

$29.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 11

0

75

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

76

Briggs & Stratton 68238

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 14

0

81

Briggs & Stratton 222263

Lockplate
(Superseded to 691729)

$5.99

$

In Stock, only 3 left!

0

123

Briggs & Stratton 93512

Screw Elbow Mtg.

$3.49

$

Usually ships in 2-12 days

0

124

Briggs & Stratton 93367

Screw-Intake EIbow Mtg.

$3.49

$

Usually ships in 2-12 days

0

200

Briggs & Stratton 221480

Guide-Air
(Superseded to 691745)

$11.99

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 260649

Link-Govemor

$9.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 297249

Oil Slinger Gear, Gov. & Bracket
(Superseded to 496062)

$23.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 391967

Lever Assy.-Governor

$8.49

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 222450

Washer
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

284

Briggs & Stratton 93410

Screw

$7.99

$

In Stock, only 1 left!

0

300

Briggs & Stratton 393615

Muffler
(Superseded to 494585)

$23.99

$

In Stock, only 1 left!

0

306

Briggs & Stratton 221484

Shield-Cylinder
(Superseded to 223804)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

308

Briggs & Stratton 221452

Cover-Cylinder Head

$12.99

$

Usually ships in 2-12 days

0

319

Briggs & Stratton 395490

Armature Assy.(Less Trigger Coil)
(Superseded to 397358)

$53.99

$

In Stock, Qty 20+

0

333

Briggs & Stratton 395491

Armature Group
(Superseded to 397358)

$53.99

$

In Stock, Qty 20+

0

335

Briggs & Stratton 93414

Screw
(Superseded to 691621)

$7.49

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 293918

Plug-Spark
(Superseded to 796112S)

Note: Included in Gasket Set-Part No. 297616.

$4.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

358

Briggs & Stratton 297616

Gasket Set
(Superseded to 496659)

$28.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

422

Briggs & Stratton 222576

Clamp-Oil Filler Tube

$15.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 391840

Cap with Dipstick
(Superseded to 691387)

$16.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 68838

Seal-Fill Tube
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 280133

Tube-Oil Fill
(Superseded to 692963)

$

$

Not available

527

Briggs & Stratton 93376

Dip-Breather Pipe

$4.49

$

In Stock, only 1 left!

0

528

Briggs & Stratton 230717

55323 REVISED PARTS

$

$

Not available

529

Briggs & Stratton 67608

Grommet-Breather Tube

$

$

Not available

552

Briggs & Stratton 231078

Bushing-Governor Shaft
(Superseded to 692346)

$9.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

Bolt

$

$

Not available

592

Briggs & Stratton 231082

Nut (Governor Control Lever)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

613

Briggs & Stratton 93935

Screw
(Superseded to 691413)

$5.99

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 93306

Pin-Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-Ring

$5.99

$

In Stock, only 3 left!

0

616

Briggs & Stratton 231076

Crank-Governor
(Superseded to 495242)

$17.99

$

In Stock, only 1 left!

0

622

Briggs & Stratton 260676

Washer-Spring (Used between cam gear box and oil slingerbracket)

$

$

Not available

623

Briggs & Stratton 93838

Screw-Shoulder
(Superseded to 691630)

$10.99

$

In Stock, only 2 left!

0

624

Briggs & Stratton 297252

Lever-Linkage

$13.99

$

Usually ships in 2-12 days

0

625

Briggs & Stratton 297254

Elbow and Tube-Intake

$11.99

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 393757

Deflector-Exhaust
(Superseded to 796956)

$10.99

$

In Stock, only 1 left!

0

842

Briggs & Stratton 270920

O-Ring
(Superseded to 691870)

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 392066

Fill Group-Oil

$

$

Not available

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

869

Briggs & Stratton 211787

Seat-Int. Valve
(Superseded to 691705)

$9.99

$

In Stock, only 3 left!

0

870

Briggs & Stratton 211172

Seat-Ex. Valve
(Superseded to 691701)

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Guide

$14.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 270918

Gasket-Exhaust
(Superseded to 692237)

$5.49

$

In Stock, only 4 left!

0

897

Briggs & Stratton 394970

Trigger Coil

$

$

Not available

726

Briggs & Stratton 391313

Muffler (Incl. Ref. #727, 728 & 730)
(Superseded to 692304)

$34.99

$

In Stock, only 4 left!

0

727

Briggs & Stratton 222263

Lockplate
(Superseded to 691729)

$5.99

$

In Stock, only 3 left!

0

728

Briggs & Stratton 93704

Capscrew

$15.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 392194

Deflector Assem.

$22.99

$

Usually ships in 2-12 days

0

730

Briggs & Stratton 221885

Heat Shield

$12.99

$

Usually ships in 2-12 days

0
