23022 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 001000001 - 001999999) (1981) HOUSING ASSEMBLY Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

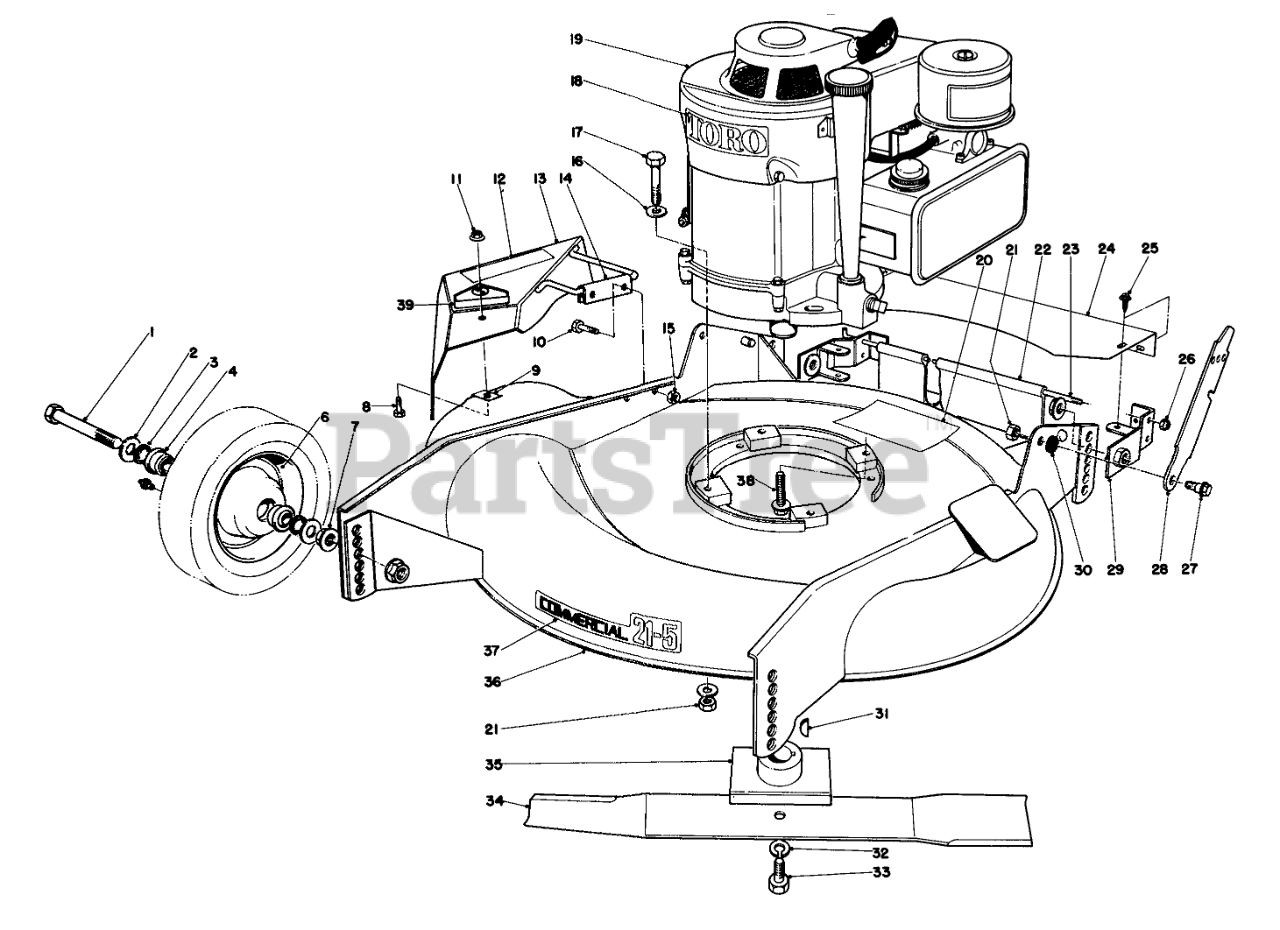

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 325-11

SCREW-HH

$3.49

$

In Stock, Qty 7

0

2

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 26-7500

FELT WASHER

$

$

Not available

4

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

6

Toro 11-1309

Wheel & Tire Assy. (Incl. Ref. #4)

$124.99

$

Usually ships in 3-6 days

0

7

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

8

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 3290-199

NUT-SPEED

$5.49

$

Usually ships in 3-6 days

0

10

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

12

Toro 40-4720

Decal

$

$

Not available

13

Toro 11-2869

Deflector (Incl. Ref. #12 & 39)

$

$

Not available

14

Toro 26-9300

Hinge-U Bracket

$

$

Not available

15

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

18

Toro 26-7730

Decal Toro

$

$

Not available

19

Toro 221-566

Engine

$

$

Currently unavailable

20

Toro 25-8410

Decal-Saftey Instruction

$

$

Not available

21

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

22

Toro 22-4940

REAR SAFETY SHIELD

$

$

Not available

23

Toro 22-5170

SHIELD ROD

$

$

Not available

24

Toro 22-5120

Cover

$

$

Not available

25

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

26

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

28

Toro 43-1550

HANDLE LATCH

$

$

Not available

29

Toro 26-7770

WHEEL AXLE BRACKET WA

$

$

Not available

30

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

31

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

32

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

33

Toro 3-5246

SPECIAL SCREW

$

$

Not available

34

Toro 26-5790

BLADE

$

$

Not available

35

Toro 26-7780

BLADE RETAINER WA

$156.99

$

Usually ships in 3-6 days

0

36

Toro 8-0849

Housing (Incl. Ref. #20)

$

$

Not available

37

Toro 40-6600

Decal-Commercial 21-5

$

$

Not available

38

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

39

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

Toro 8-7729

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
