23004 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 004000001 - 004999999) (1974) REAR AXLE & TIRE ASSEMBLY S.P. MODELS 23144 & 23123 Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

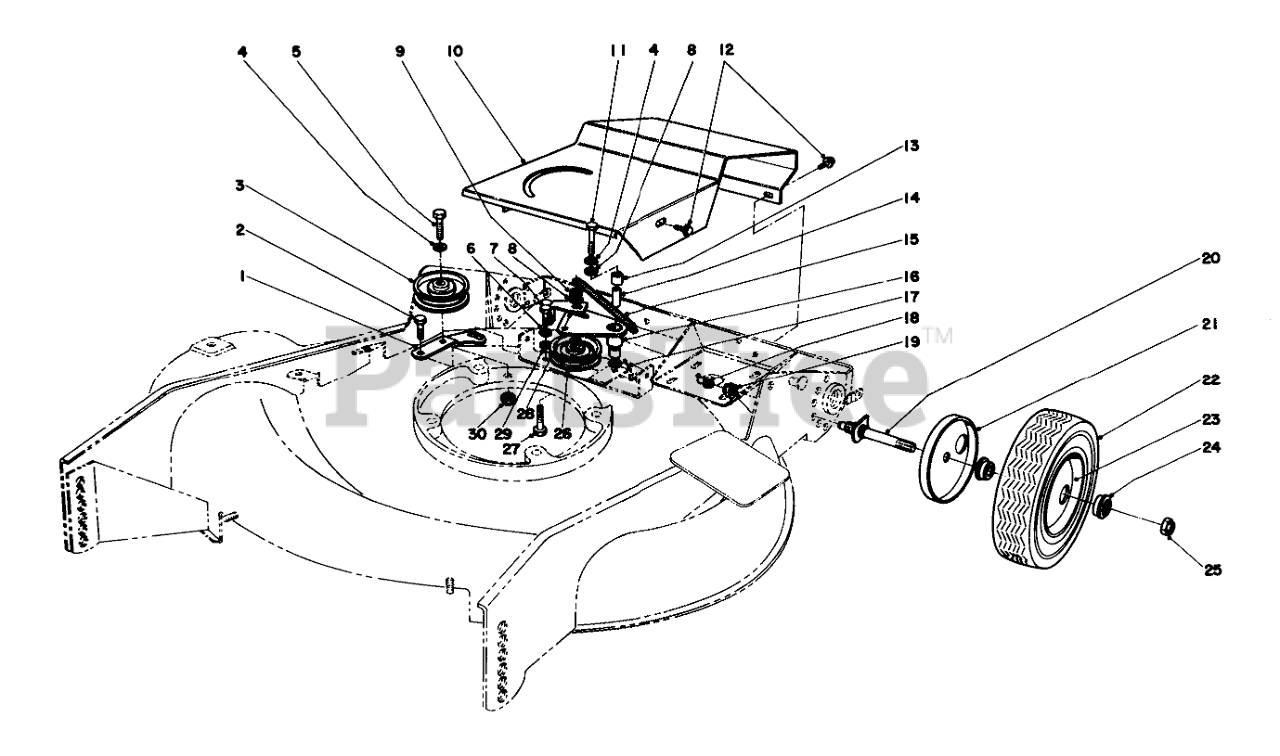

REAR AXLE & TIRE ASSEMBLY S.P. MODELS 23144 & 23123 Parts Diagram

  • Title
1

Toro 3-6911

Arm, Auxiliary Idler

$

$

Not available

2

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

4

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

5

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

6

Toro 32542

Lockwasher

$

$

Currently unavailable

7

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

10

Toro 3-6473

Shroud

$

$

Not available

11

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 32140-16

Screw
(Superseded to 32140-42)

$

$

Not available

13

Toro 256-1

BUSHING

$29.99

$

In Stock, only 2 left!

0

14

Toro 3-6468

ROLLED SPACER

$

$

Not available

15

Toro 3-7294

IDLER SPRING

$

$

Not available

16

Toro 3-6598

Idler Arm (Incl. Ref. #14)

$

$

Not available

17

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

18

Toro 302-42

GREASE FITTING

$

$

Not available

19

Toro 3296-28

NUT-LOCK, NI

$1.99

$

In Stock, only 3 left!

0

20

Toro 3-0779

Spindle (Incl. Ref. #21)

$

$

Not available

21

Toro 3-6451

WHEEL COVER

$

$

Not available

22

$

$

Not available

23

Toro 2-9919

REAR WHEEL & TIRE ASM

$

$

Not available

24

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

25

Toro 32146-11

Nut
(Superseded to 3296-19)

$1.49

$

In Stock, Qty 20+

0

26

Toro 3-4243

IDLER PULLEY R

$

$

Not available

27

Toro 3-7283

Screw

$

$

Not available

28

$

$

Not available

29

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

30

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0
