230 ACX - Husqvarna Automower Robotic Lawn Mower (2013-01) CHASSIS UPPER Parts Diagram

Automower Robotic Lawn Mower

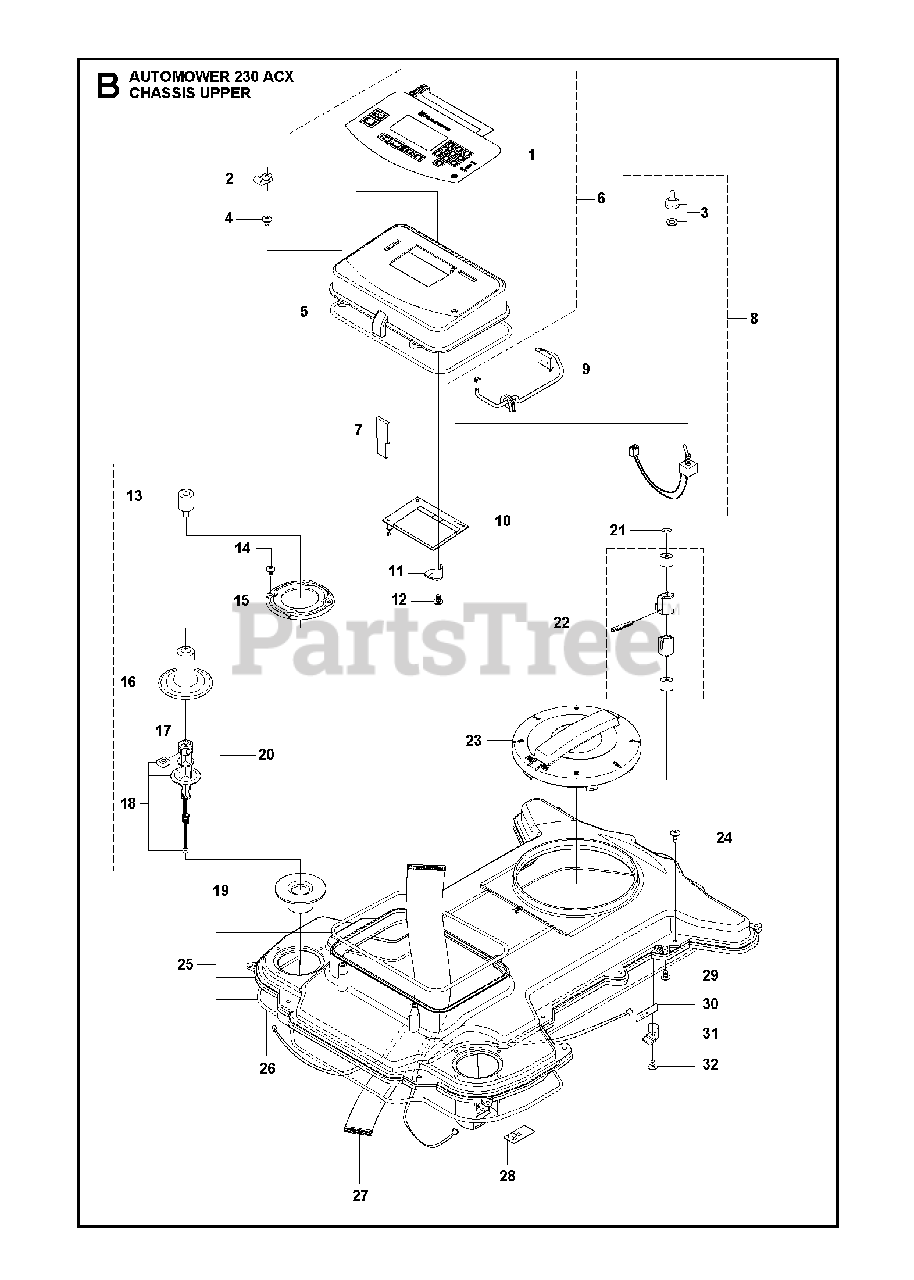

CHASSIS UPPER Parts Diagram

  • Title
1

Husqvarna 544899802

KEYBOARD

Note: . 6

$

$

Not available

2

Husqvarna 577527201

CABLE CLAMP

$

$

Not available

3

Husqvarna 535101701

RUBBER HOOD ON/OFF SWITCH

Note: . 8

$13.99

$

Usually ships in 3-10 days

0

4

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 575986301

SEALING STRIP

Note: (10 pcs). 6

$

$

Not available

5

Husqvarna 574874702

SEALING STRIP G2-2 DISPLAY CO
(Superseded to 575986301)

$

$

Not available

6

Husqvarna 575944202

DISPLAY COVER 230ACX

Note: compl

$

$

Not available

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 535123901

BRAKER

Note: compl

$31.99

$

Usually ships in 3-10 days

0

9

Husqvarna 577592301

SWITCH KIT

$39.99

$

Usually ships in 3-10 days

0

10

$159.99

$

Usually ships in 3-10 days

0

11

$

$

Not available

12

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

13

Husqvarna 577670601

DAMPER RUBBER

Note: . 20

$

$

Not available

14

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

15

Husqvarna 505174301

RING FASTENER

$

$

Not available

16

Husqvarna 577525801

RUBBER GAITERS

Note: . 20

$

$

Not available

17

Husqvarna 503226601

NUT

Note: . 20

$6.49

$

In Stock, only 2 left!

0

18

Husqvarna 579248801

COLUMN ASSY
(Superseded to 501122602)

Note: . 20

$17.99

$

Usually ships in 3-10 days

0

19

Husqvarna 535143201

MOVEMENT LIMITER

$11.99

$

Usually ships in 3-10 days

0

20

Husqvarna 577598403

COLUMN REAR COLLISION COLUMN

Note: compl

$34.99

$

Usually ships in 3-10 days

0

21

Husqvarna 510747000

LOCKWASHER

$

$

Not available

22

Husqvarna 544141501

LIFT SENSOR COMP

$28.99

$

Usually ships in 3-10 days

0

23

Husqvarna 535122201

STEERING WHEEL

$

$

Not available

24

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 575943801

CHASSIS UPPER

$

$

Not available

26

Husqvarna 575986201

SEALING STRIP
(Superseded to 574874701)

Note: (10 pcs)

$20.99

$

Usually ships in 3-10 days

0

26

Husqvarna 574874701

SEALING STRIP G2-2 CHASSIS
(Superseded to 575986201)

$20.99

$

Usually ships in 3-10 days

0

27

Husqvarna 544126901

MAIN RIBBON HARNESS

$37.99

$

Usually ships in 3-10 days

0

28

Husqvarna 578789001

PRINTED CIRCUIT ASSY
(Superseded to 578789003)

$13.99

$

Usually ships in 3-10 days

0

$3.49

$

Usually ships in 3-10 days

0

30

Husqvarna 578789001

PRINTED CIRCUIT ASSY
(Superseded to 578789003)

$13.99

$

Usually ships in 3-10 days

0

31

$

$

Not available

32

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0
