230 ACX - Husqvarna Automower Robotic Lawn Mower (2007-05) CHASSIS UPPER Parts Diagram

Automower Robotic Lawn Mower

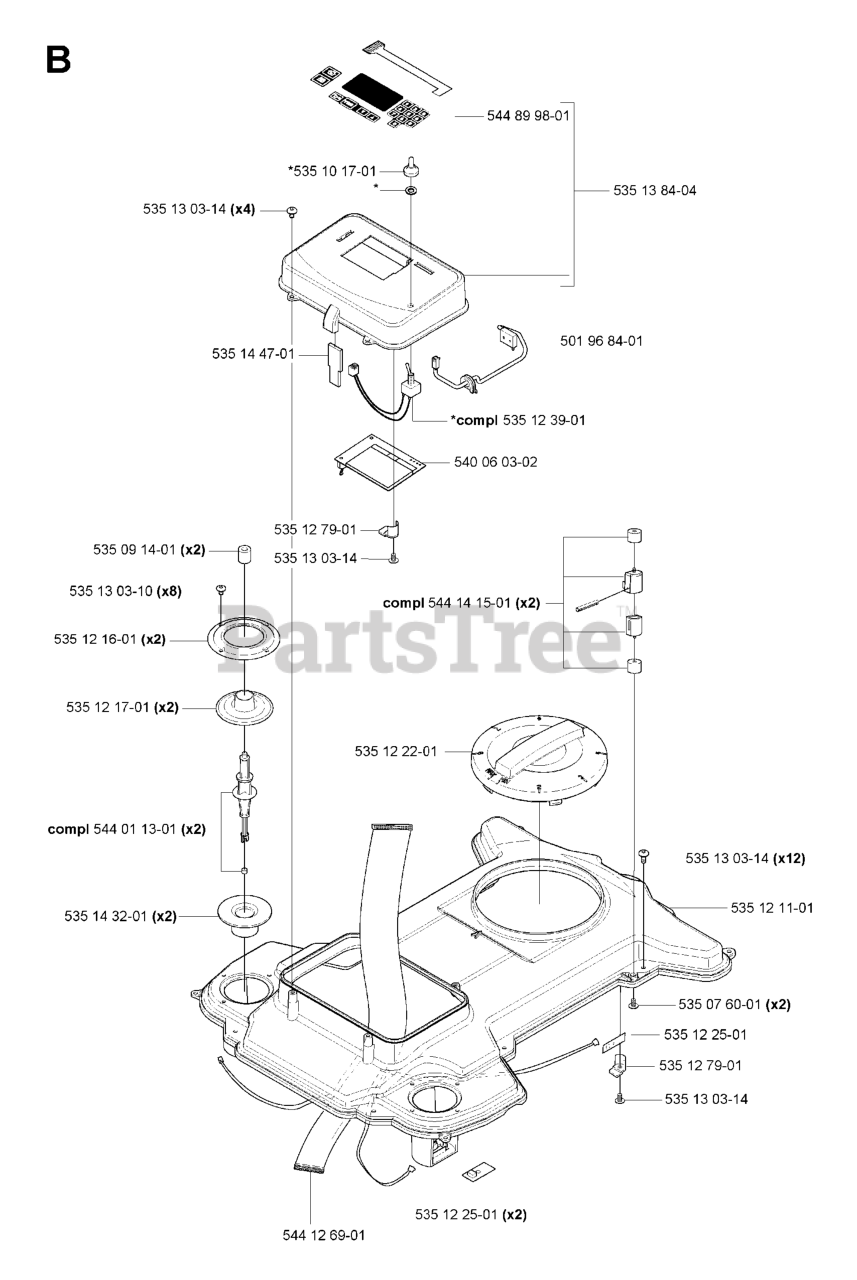

CHASSIS UPPER Parts Diagram

  • Title

535 12 79-01

Husqvarna 535127901

BRACKET

$

$

Not available

535 10 17-01

Husqvarna 535101701

RUBBER HOOD ON/OFF SWITCH

$13.99

$

Usually ships in 3-10 days

0

535 12 22-01

Husqvarna 535122201

STEERING WHEEL

$

$

Not available

535 07 60-01

Husqvarna 535076001

SCREW

$4.99

$

In Stock, Qty 17

0

544 14 15-01

Husqvarna 544141501

LIFT SENSOR COMP

$28.99

$

Usually ships in 3-10 days

0

535 13 84-04

Husqvarna 535138404

KEYPAD KIT

$113.99

$

Usually ships in 3-10 days

0

544 89 98-01

Husqvarna 544899801

KEYPAD

$

$

Not available

535 14 47-01

Husqvarna 535144701

FILTER

$3.49

$

Usually ships in 3-10 days

0

540 06 03-02

Husqvarna 540060302

DISPLAY

$

$

Not available

544 12 69-01

Husqvarna 544126901

MAIN RIBBON HARNESS

$37.99

$

Usually ships in 3-10 days

0

535 13 03-14

Husqvarna 535130314

SCREW

$3.49

$

Usually ships in 3-10 days

0

535 12 25-01

Husqvarna 535122501

RP PRINTED CIRCUIT CARD
(Superseded to 578789003)

$13.99

$

Usually ships in 3-10 days

0

535 12 17-01

Husqvarna 535121701

SEALING RING

$

$

Not available

544 01 13-01

Husqvarna 544011301

COLLISION CENSOR

$11.99

$

Usually ships in 3-10 days

0

535 13 03-14

Husqvarna 535130314

SCREW

$3.49

$

Usually ships in 3-10 days

0

535 14 32-01

Husqvarna 535143201

MOVEMENT LIMITER

$11.99

$

Usually ships in 3-10 days

0

535 12 11-01

Husqvarna 535121101

CHASSIS
(Superseded to 506494001)

$

$

Not available

535 12 25-01

Husqvarna 535122501

RP PRINTED CIRCUIT CARD
(Superseded to 578789003)

$13.99

$

Usually ships in 3-10 days

0

535 13 03-10

Husqvarna 535130310

SCREW

$3.49

$

In Stock, only 4 left!

0

535 09 14-01

Husqvarna 535091401

BUMPER

$

$

Not available

535 12 16-01

Husqvarna 535121601

RING

$

$

Not available

535 12 39-01

Husqvarna 535123901

BRAKER

$31.99

$

Usually ships in 3-10 days

0

535 13 03-14

Husqvarna 535130314

SCREW

$3.49

$

Usually ships in 3-10 days

0

501 96 84-01

Husqvarna 501968401

SWITCH

$39.99

$

Usually ships in 3-10 days

0
