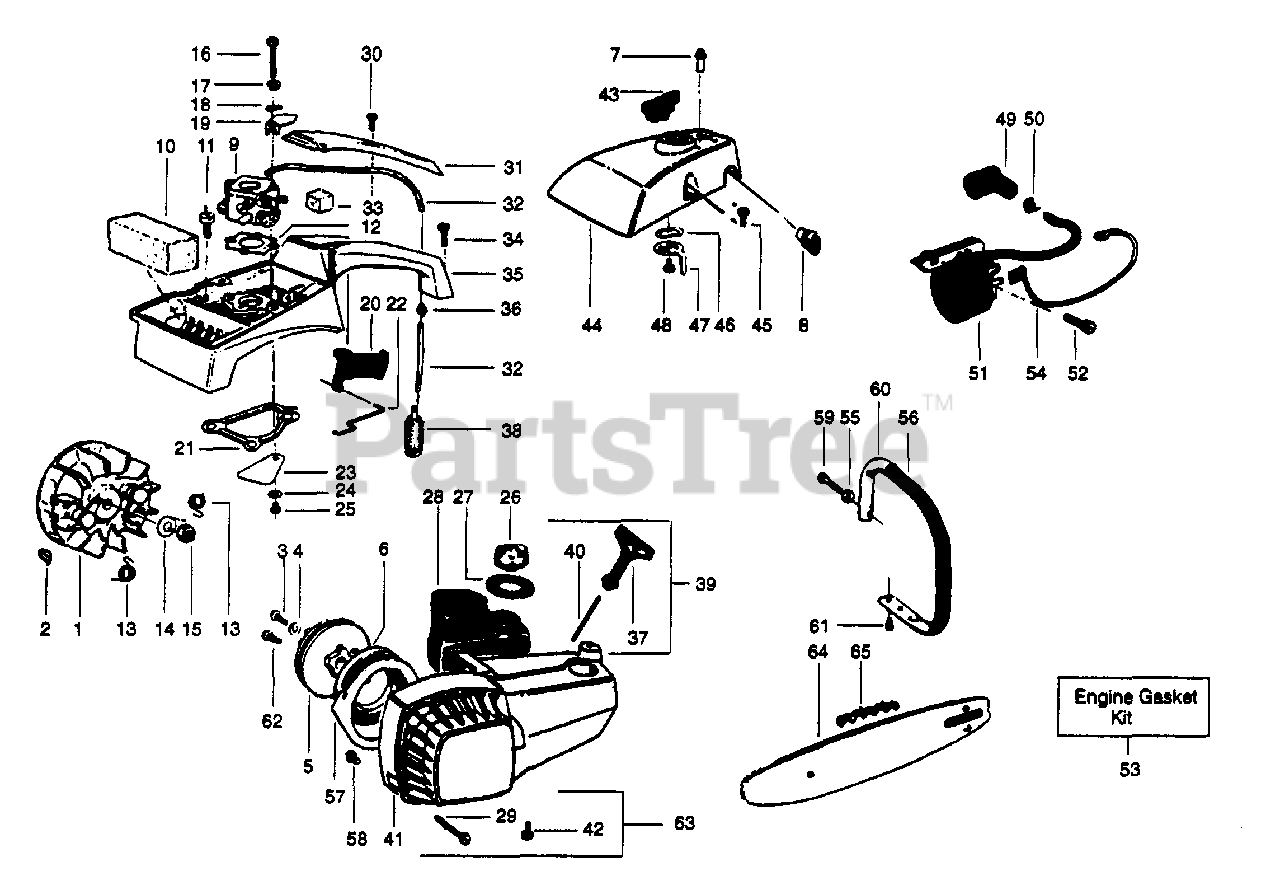

23 COMPACT (530083963) - Husqvarna Chainsaw (1997-07) Flywheel Assembly Parts Diagram

Chainsaw

Flywheel Assembly Parts Diagram

  • Title

1

Husqvarna 530047198

Flywheel Ass'y.

$

$

Not available

2

Husqvarna 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 530015036

Pulley Retaining Screw
(Superseded to 530016141)

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

5

Husqvarna 530069288

Starter Pulley

$

$

Not available

6

Husqvarna 530042023

Starter Spring
(Superseded to 545008007)

$

$

Not available

7

Husqvarna 530038646

Grommet-Idle

$

$

Not available

8

Husqvarna 530038571

Grommet-Mixture

$

$

Not available

9

Husqvarna 530069772

Carburetor Kit w/Limiter Caps

$

$

Not available

10

Husqvarna 530023791

Air Filter

$

$

Not available

11

Husqvarna 530015242

Screw

$

$

Not available

12

Husqvarna 530019045

Carburetor Gasket

$

$

Not available

13

Husqvarna 530023817

Starter Dog Spring

$6.49

$

In Stock, Qty 5

0

14

Husqvarna 530015127

Flywheel Washer

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 530626605

Nut

$5.99

$

Usually ships in 3-10 days

0

16

Husqvarna 530015245

Screw

$2.49

$

Usually ships in 3-10 days

0

17

Husqvarna 530023865

Spacer

$

$

Not available

18

Husqvarna 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

19

Husqvarna 530023805

Choke Shutter

$

$

Not available

20

Husqvarna 530029826

Throttle Trigger

$3.99

$

In Stock, Qty 6

0

21

Husqvarna 530019118

Gasket
(Superseded to 530019252)

$

$

Not available

22

Husqvarna 530026606

Throttle Wire

$

$

Not available

23

Husqvarna 530036331

Reed Valve

$

$

Not available

24

Husqvarna 530036332

Washer

$2.49

$

Usually ships in 3-10 days

0

25

Husqvarna 530016064

Screw
(Superseded to 545227101)

$4.99

$

In Stock, only 2 left!

0

26

Husqvarna 530014347

Fuel Cap Ass'y.

$9.49

$

In Stock, Qty 15

0

27

Husqvarna 530019093

Seal

$

$

Not available

28

Husqvarna 530010775

Fuel Tank Ass'y.

Note: (Incl 26, 27 & 38)

$

$

Not available

29

Husqvarna 530015649

Screw
(Superseded to 530015707)

$4.99

$

In Stock, only 2 left!

0

30

Husqvarna 530015247

Screw

$

$

Not available

31

Husqvarna 530037765

Handle Cover
(Superseded to 530024967)

$8.99

$

Usually ships in 3-10 days

0

32

Husqvarna 530069216

Line Kit

$11.99

$

In Stock, Qty 20+

0

33

Husqvarna 530023373

Throttle Wire Boot

$

$

Not available

34

Husqvarna 530015239

Screw

$2.49

$

Usually ships in 3-10 days

0

35

Husqvarna 530038328

Handle & Carb. Hsg.
(Superseded to 530037774)

$

$

Not available

36

Husqvarna 530023877

Fuel Line Fitting

$5.99

$

In Stock, only 4 left!

0

37

Husqvarna 530027569

Starter Handle

$6.49

$

In Stock, only 2 left!

0

38

Husqvarna 530014362

Fuel Pickup Ass'y.
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

39

Husqvarna 530026791

Ass'y Rope & Handle

$8.99

$

Usually ships in 3-10 days

0

40

Husqvarna 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

41

Husqvarna 530069602

Fan Hsg. Kit

$

$

Not available

42

Husqvarna 530015650

Screw

$

$

Not available

43

Husqvarna 530023807

Choke Knob

$2.49

$

In Stock, only 2 left!

0

44

Husqvarna 530038613

Carb. Cover
(Superseded to 530071304)

$

$

Not available

45

Husqvarna 530015168

Screw

$

$

Not available

46

Husqvarna 530015147

Wave Washer

$4.99

$

Usually ships in 3-10 days

0

47

Husqvarna 530023806

Choke Lever

$

$

Not available

48

Husqvarna 530015407

Screw

$

$

Not available

49

Husqvarna 507475326

Spark Plug Boot

$

$

Not available

50

Husqvarna 530003933

Spark Plug Connector
(Superseded to 507475326)

$

$

Not available

51

Husqvarna 530069202

Ignition Module Kit

$

$

Not available

52

Husqvarna 530015816

Screw

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 530069401

Engine Gasket Kit

Note: (Incl. from pg. 1: 11, 12, 15, 16, 36: from pg. 2: 12, 21, 27 & 33)

$

$

Not available

54

Husqvarna 530039116

Switch Lead

$

$

Not available

55

Husqvarna 530015151

Washer

$

$

Not available

56

Husqvarna 530027847

Grip-Handlebar

$

$

Not available

57

Husqvarna 530038312

Air Baffle

$

$

Not available

58

Husqvarna 530001726

Screw

$

$

Not available

59

Husqvarna 530001648

Screw

$

$

Not available

60

Husqvarna 530022352

Handlebar

$

$

Not available

61

Husqvarna 530015037

Screw

$2.49

$

Usually ships in 3-10 days

0

62

Husqvarna 530016080

Rope Retaining Screw

$6.49

$

In Stock, only 2 left!

0

63

Husqvarna 530069286

Fan Hsg. Screw Kit

Note: Incl. 29, 42 and 9 from page 1

$

$

Not available

64

Husqvarna 530044678

Guide Bar

$

$

Currently unavailable

65

Husqvarna 530051420

Chain
(Superseded to 585422152)

$34.99

$

Usually ships in 3-10 days

0
