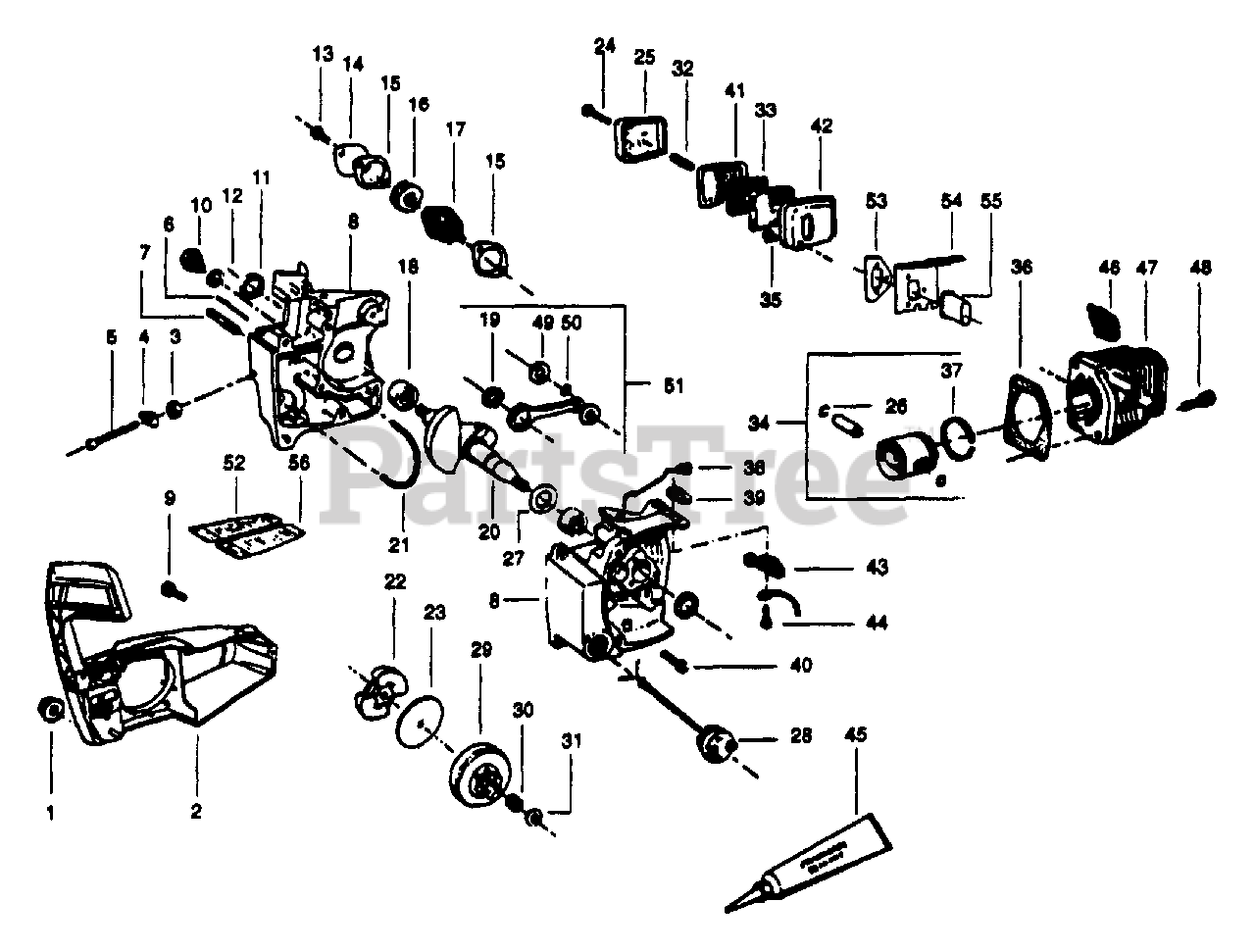

23 COMPACT (530083963) - Husqvarna Chainsaw (1997-07) Crankcase Assembly Parts Diagram

Chainsaw

Crankcase Assembly Parts Diagram

  • Title

1

Husqvarna 530015445

Bar Mounting Nut
(Superseded to 530015251)

$6.49

$

In Stock, only 1 left!

0

2

Husqvarna 530069557

Chain Brake Kit
(Superseded to 952069320)

Note: (Incl. 1)

$

$

Not available

3

Husqvarna 530015135

Lock Nut

$1.99

$

In Stock, Qty 7

0

4

Husqvarna 530023492

Bar Adjust Pin

$

$

Not available

5

Husqvarna 530016115

Screw

$2.49

$

In Stock, only 1 left!

0

6

Husqvarna 530036450

Oil Tank Vent Pin

$

$

Not available

7

Husqvarna 530015719

Bar Mounting Stud

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 530014742

Crankcase Ass'y

Note: (Incl. 3-7, 10-12, 18, 28 & 40)

$

$

Not available

9

Husqvarna 530015623

Screw

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 530069142

Check Valve Kit

Note: (Incl. 12)

$

$

Not available

11

Husqvarna 530019059

Crankshaft Seal

$

$

Not available

12

Husqvarna 530019089

Check Valve Gasket

$

$

Not available

13

Husqvarna 530015476

Screw

$2.49

$

Usually ships in 3-10 days

0

14

Husqvarna 530023802

Metering Body Cover

$

$

Not available

15

Husqvarna 530019091

Metering Body Gasket

$

$

Not available

16

Husqvarna 530023801

Oil Filter

$

$

Not available

17

Husqvarna 530010195

Metering Body Ass'y.

$

$

Not available

18

Husqvarna 530032029

Crankshaft Bearing

$10.99

$

In Stock, only 2 left!

0

19

Husqvarna 530032065

Roller Bearings

Note: (Incl. 12 bearings)

$

$

Not available

20

Husqvarna 530022172

Crankshaft

$

$

Not available

21

Husqvarna 530021026

Oil Discharge Line
(Superseded to 530069216)

$11.99

$

In Stock, Qty 20+

0

22

Husqvarna 530069193

Clutch Ass'y. Kit

$

$

Not available

23

Husqvarna 530069197

Clutch Washer Kit

$

$

Not available

24

Husqvarna 530015169

Screw

$5.99

$

Usually ships in 3-10 days

0

25

Husqvarna 530023795

Muffler Cover

$

$

Not available

26

Husqvarna 530023843

Piston Pin Retainer

$

$

Not available

27

Husqvarna 530023887

Thrust Washer

$

$

Not available

28

Husqvarna 530010444

Oil Cap Ass'y.

$

$

Not available

29

Husqvarna 530069166

Clutch Drum

$26.99

$

In Stock, only 1 left!

0

30

Husqvarna 530032079

Clutch Bearing

$

$

Not available

31

Husqvarna 530023519

Clutch Spacer

$3.99

$

In Stock, only 1 left!

0

32

Husqvarna 530023535

Spacer

$5.99

$

In Stock, only 1 left!

0

33

Husqvarna 530023796

Spark Arrestor Screen

$

$

Not available

34

Husqvarna 530069552

Piston Kit

Note: (Incl. 26, 36, & Pin)

$

$

Not available

35

Husqvarna 530001666

Screw

$

$

Not available

36

Husqvarna 530019237

Cylinder Gasket
(Superseded to 530069401)

$

$

Not available

37

Husqvarna 530037603

Piston Ring

$

$

Not available

38

Husqvarna 530023788

Switch Knob Ass'y

$

$

Not available

39

Husqvarna 530023786

Ramp Switch

$

$

Not available

40

Husqvarna 530015986

Screw

$

$

Not available

41

Husqvarna 530023797

Muffler Baffle

$

$

Not available

42

Husqvarna 530038325

Muffler Body

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 530023787

Switch Clamp

$

$

Not available

44

Husqvarna 530015235

Screw

$

$

Not available

45

Husqvarna 530030054

Crankcase Sealant

$

$

Not available

46

Husqvarna 952030150

Spark Plug
(Superseded to 503235111)

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 530012172

Cylinder

$

$

Not available

48

Husqvarna 530015239

Screw

$2.49

$

Usually ships in 3-10 days

0

49

Husqvarna 530015486

Washer

$

$

Not available

50

Husqvarna 530032075

Bearing Rod

$

$

Not available

51

Husqvarna 530010474

Connection Rod Ass'y. Kit

Note: (Incl. 19, 49 & 50)

$

$

Not available

52

Husqvarna 530037759

Instruction Decal Right Hand

$

$

Not available

53

Husqvarna 530019211

Gasket-Muffler

$2.49

$

Usually ships in 3-10 days

0

54

Husqvarna 530038643

Muffler-Back Plate

$

$

Not available

55

Husqvarna 530037652

Port-Insulator

$

$

Not available

56

Husqvarna 530047954

Instruction Decal Left Hand

$

$

Not available

Husqvarna 530083873

Operator Manual

Note: Not Shown

$

$

Not available

Husqvarna 530031063

Bar Wrench
(Superseded to 530031146)

Note: Not Shown

$8.99

$

In Stock, only 2 left!

0
