23-11BP03 (A-111) - Toro Rear-Engine Riding Mower (1984) SEAT, DECALS AND MISCELLANEOUS Parts Diagram

Rear-Engine Riding Mower

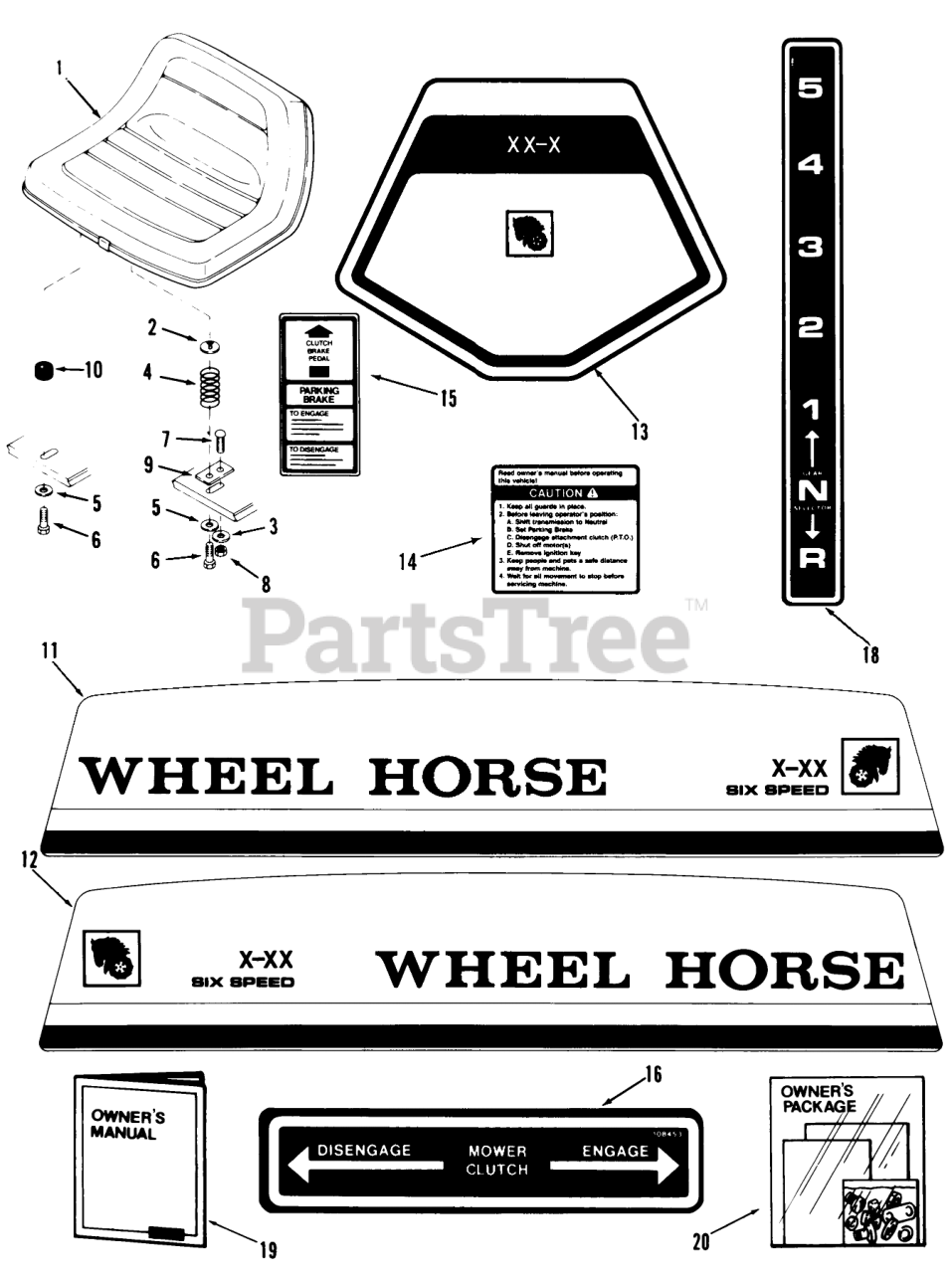

SEAT, DECALS AND MISCELLANEOUS Parts Diagram

  • Title

1

Toro 107016

ASSY-SEAT

$

$

Not available

2

Toro 108457

NUT-PUSH

$

$

Not available

3

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

4

Toro 104841

SPRING

$2.49

$

In Stock, only 2 left!

0

5

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

6

Toro 108438

SPECIAL BOLT

$

$

Not available

6

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

7

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

8

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

9

Toro 108340

Plate Seat

$

$

Not available

10

Toro 108787

GROMMET-RUBBER

$

$

Not available

11

Toro 106758

Decal-Hood A-81 RH

$

$

Not available

11

Toro 107718

DECAL-SIDE A-111

$

$

Not available

12

Toro 106757

Decal-Hood A-81 LH

$

$

Not available

12

Toro 107719

Rubber Plate

$

$

Not available

13

Toro 106763

Decal-Shroud A-81

$

$

Not available

13

Toro 107717

Decal-Shroud A-111

$

$

Not available

14

Toro 106712

DECAL-CAUTION

$

$

Not available

15

Toro 107020

Decal-Parking Brake

$

$

Not available

16

Toro 108453

Decal-PTO

$

$

Not available

18

Toro 108452

DECAL-SHIFT

$

$

Not available

19

Toro 810311R1

Owner-s Manual (Rider)

$

$

Currently unavailable

20

Toro 807029

New Rider Loose Parts Pkg A-81

$

$

Not available

20

Toro 807030

New Rider Loose Parts Pkg A-111

$

$

Not available
