23-11BP03 (A-111) - Toro Rear-Engine Riding Mower (1984) FRONT AXLE AND STEERING Parts Diagram

Rear-Engine Riding Mower

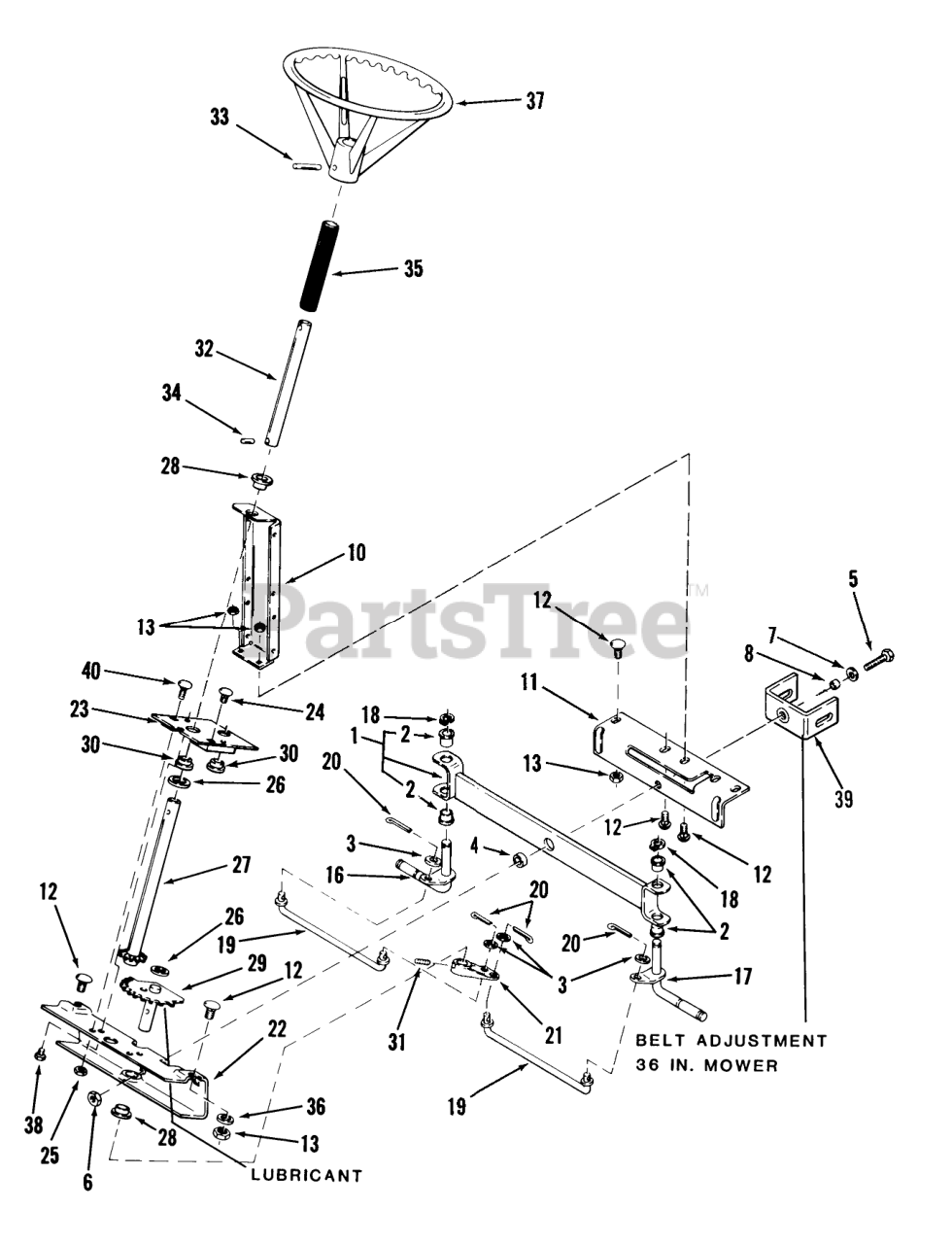

FRONT AXLE AND STEERING Parts Diagram

  • Title
1

Toro 108866

ASSY-FRNT AXLE/BRG

$

$

Not available

2

Toro 106950

BUSHING

$13.99

$

Usually ships in 3-6 days

0

3

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

4

Toro 106898

Spacer
(Superseded to 92-6035)

$13.99

$

Usually ships in 3-6 days

0

5

Toro 908061

Bolt 1/2-13 X 2
(Superseded to 325-8)

$5.49

$

In Stock, Qty 5

0

6

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

7

Toro 920041

Washer
(Superseded to 3256-6)

$0.99

$

In Stock, Qty 20+

0

8

Toro 106286

BUSHING

$

$

Not available

10

Toro 108863

Support-Steering

$

$

Not available

11

Toro 108857

SUPPORT-FRNT AXLE RE

$

$

Not available

12

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

13

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

16

Toro 108880

ASSY-SPINDLE RH R

$

$

Not available

17

Toro 108879

ASSY-SPINDLE LH R

$

$

Not available

18

Toro 104822

Snap Ring
(Superseded to 32120-93)

$2.99

$

In Stock, Qty 20+

0

19

Toro 108869

ROD-STEERING

$

$

Not available

20

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

21

Toro 109260

ARM-STEERING

$33.99

$

Usually ships in 3-6 days

0

22

Toro 108862

SUPPORT-FRONT AXLE

$

$

Not available

23

Toro 107932

Plate-Reinforcing

$

$

Not available

24

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 13

0

25

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

26

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

27

Toro 108428

Steering Shaft

$

$

Not available

28

Toro 101442

BEARING

$

$

Not available

29

Toro 106878

ASSY-STEERING SEC R (NS)

$

$

Not available

30

Toro 106950

BUSHING

$13.99

$

Usually ships in 3-6 days

0

31

Toro 933216

PIN-ROLL, SPIROL

$2.99

$

In Stock, only 1 left!

0

32

Toro 108585

TUBE-STEERING

$

$

Not available

33

Toro 933221

Pin-Roll
(Superseded to 32121-111)

$2.99

$

In Stock, Qty 20+

0

34

Toro 933213

SPIROL PIN

$

$

Not available

35

Toro 108670

Steering Shaft Ext. Cover

$

$

Not available

36

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

37

Toro 515056

Steering Wheel

$

$

Not available

38

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

39

Toro 109358

Pivot

$

$

Not available

40

Toro 900065

Bolt
(Superseded to 323-14)

$3.99

$

In Stock, Qty 20+

0
