23-11BP03 (A-111) - Toro Rear-Engine Riding Mower (1984) BRAKE AND CLUTCH LINKAGE Parts Diagram

Rear-Engine Riding Mower

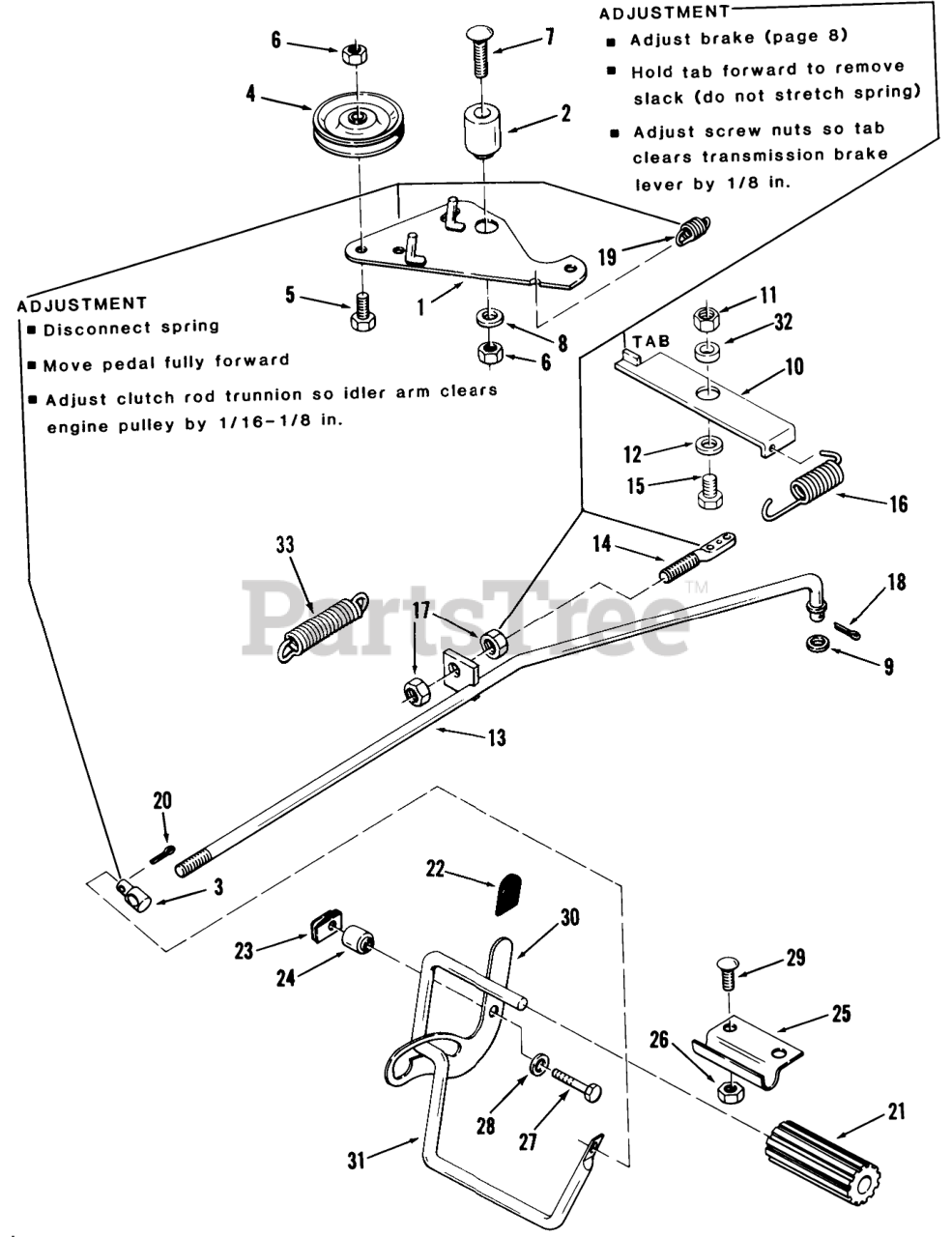

BRAKE AND CLUTCH LINKAGE Parts Diagram

  • Title
1

Toro 108722

ASSY-IDLER ARM

$

$

Not available

2

Toro 106908

SPACER-CLUTCH ARM

$

$

Not available

3

Toro 101161

TRUNNION

$

$

Not available

4

Toro 8205

PULLEY-IDLER STATION

$25.99

$

In Stock, only 1 left!

0

5

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

6

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

7

Toro 900067

Bolt
(Superseded to 323-16)

$3.49

$

In Stock, Qty 7

0

8

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

9

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

10

Toro 108288

Brake Rod

$

$

Not available

11

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

12

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

13

Toro 108724

Clutch Rod

$

$

Not available

14

Toro 108471

Screw Adjustment

$

$

Not available

15

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

16

Toro 105467

Spring

$

$

Not available

17

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

18

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

19

Toro 102572

SPRING

$23.99

$

Usually ships in 3-6 days

0

20

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

21

Toro 108854

PAD-CLUTCH/BRKE PDL

$

$

Not available

22

Toro 6820

GRIP

$2.99

$

In Stock, only 2 left!

0

23

$2.99

$

In Stock, Qty 20+

0

24

Toro 108855

Spacer-Park Brake Lever

$

$

Not available

25

Toro 108861

SPINDAL SUPPORT R

$38.99

$

Usually ships in 3-6 days

0

26

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

27

Toro 908007

Bolt 1/4-20 X 1 1/2
(Superseded to 321-9)

$4.99

$

In Stock, only 2 left!

0

28

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

29

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

30

Toro 108856

Park Brake Lever

$

$

Not available

31

Toro 108860

ROD-PEDAL

$

$

Not available

32

Toro 108289

SPACER

$

$

Not available

33

Toro 107788

SPRING-EXTENSION

$14.99

$

Usually ships in 3-6 days

0
