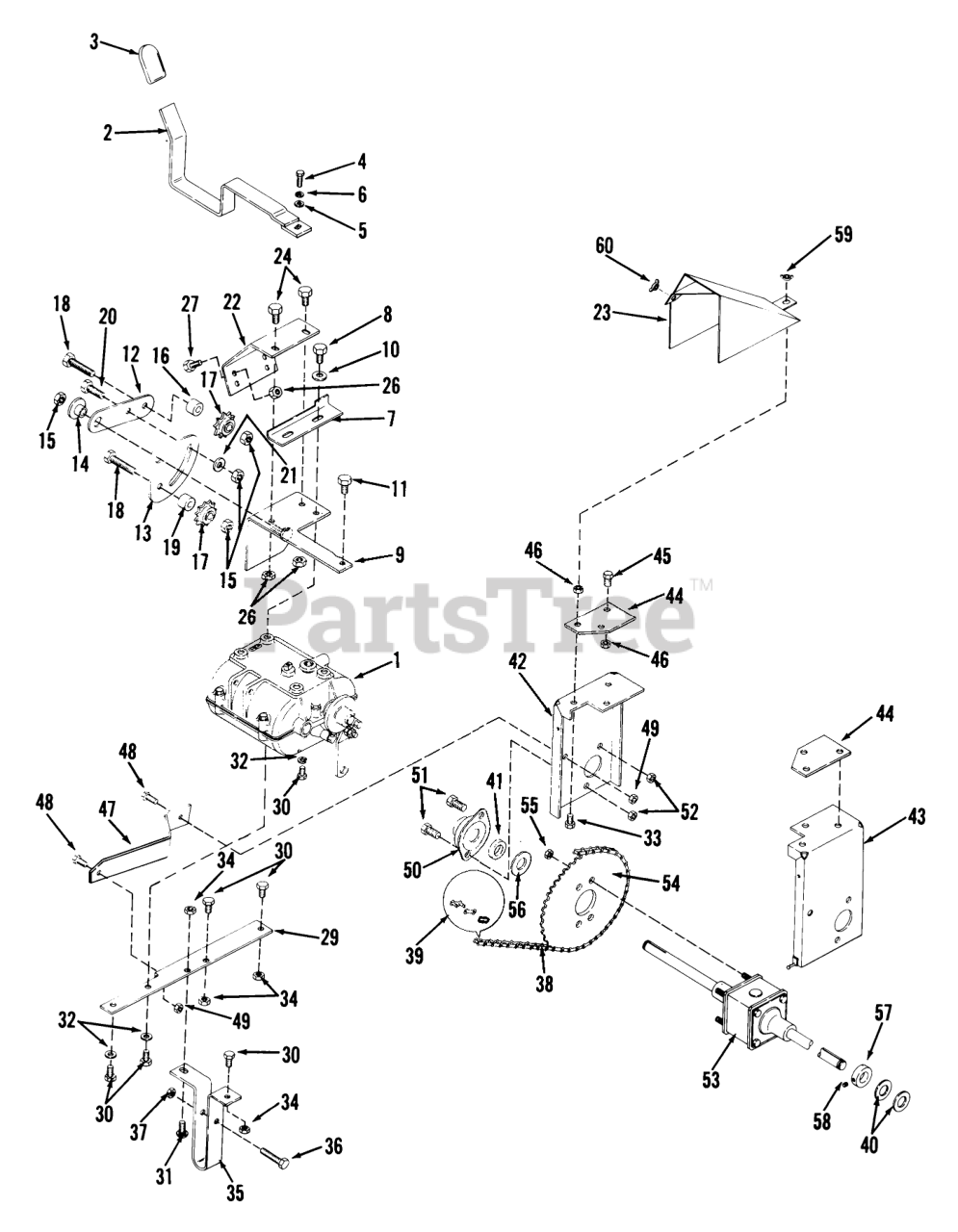

23-08BP01 (A-81) - Toro Rear-Engine Riding Mower (1982) Transmission, Differential And Drive System Parts Diagram

Rear-Engine Riding Mower

Transmission, Differential And Drive System Parts Diagram

  • Title
1

Toro 106907

SEE SEVICE BULT #228

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown.

$

$

Not available

2

Toro 108026

DISCONTINUED

$

$

Not available

3

Toro 100464

DISCONTINUED

$

$

Not available

4

Toro 908153

See Supercession: 329-5
(Superseded to 329-5)

$

$

Not available

5

Toro 104869

WASHER

$

$

Not available

6

Toro 920081

See Supercession: 3253-3
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

7

Toro 107944

DISCONTINUED

$

$

Not available

8

Toro 926696

See Supercession: 9266964
(Superseded to 9266964)

$9.49

$

Usually ships in 3-6 days

0

9

Toro 106871

DISCONTINUED

$

$

Not available

10

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

11

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

12

Toro 106889

DISCONTINUED

$

$

Not available

13

Toro 106888

DISCONTINUED

$

$

Not available

14

Toro 106891

SPACER-BUSHING

$

$

Not available

15

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

16

Toro 106892

DISCONTINUED

$

$

Not available

17

Toro 106890

DISCONTINUED

$

$

Not available

18

Toro 908038

See Supercession: 323-10
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

19

Toro 106887

SPACER

$

$

Not available

20

Toro 908034

See Supercession: 323-6
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

21

Toro 920039

See Supercession: 3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

22

Toro 108418

DISCONTINUED

$

$

Not available

24

Toro 908017

See Supercession: 322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

26

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

27

Toro 908017

See Supercession: 322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

29

Toro 106886

DISCONTINUED

$

$

Not available

30

Toro 908017

See Supercession: 322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

31

Toro 908037

See Supercession: 323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

32

Toro 920082

See Supercession: 3253-4
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

33

Toro 908035

See Supercession: 323-7
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

34

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

35

Toro 107787

DISCONTINUED

$

$

Not available

36

Toro 908037

See Supercession: 323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

37

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

38

Toro 108598

DISCONTINUED

$

$

Not available

39

Toro 6392

See Supercession: 2710-11
(Superseded to 2710-11)

$6.49

$

In Stock, only 1 left!

0

40

Toro 920250

WASHER

$

$

Not available

41

Toro 107812

DISCONTINUED

$

$

Not available

42

Toro 106952

DISCONTINUED

$

$

Not available

43

Toro 108454

DISCONTINUED

$

$

Not available

44

Toro 106983

DISCONTINUED

$

$

Not available

45

Toro 908032

See Supercession: 323-4
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

46

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

47

Toro 106885

DISCONTINUED

$

$

Not available

48

Toro 908032

See Supercession: 323-4
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

49

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

50

Toro 106981

DISCONTINUED

$

$

Not available

51

Toro 908032

See Supercession: 323-4
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

52

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

53

Toro 108607

DISCONTINUED

$

$

Not available

54

Toro 108608

SPROCKET

$

$

Not available

55

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

56

Toro 920250

WASHER

$

$

Not available

57

Toro 1085

See Supercession: 83-2770
(Superseded to 83-2770)

$

$

Not available

58

Toro 909848

See Supercession: 3245-32
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0

23

Toro 108298

DISCONTINUED

$

$

Not available

59

Toro 915586

DISCONTINUED

$

$

Not available

60

Toro 915584

DISCONTINUED

$

$

Not available
