22V67H30X8A (96147001605) - Murray 22" Walk-Behind Mower (2010) Drive Group (96147001605dr) Parts Diagram

22" Walk-Behind Mower

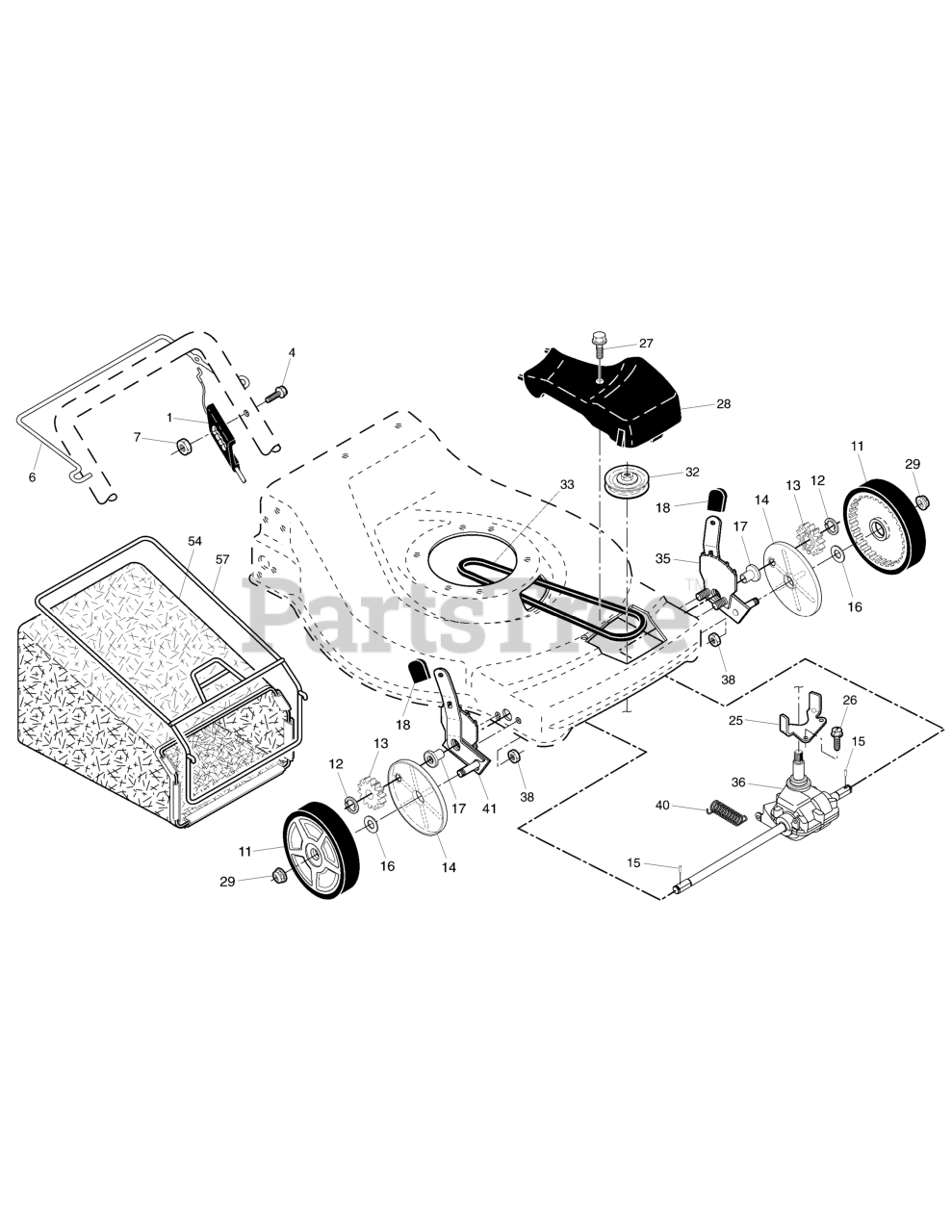

Drive Group (96147001605dr) Parts Diagram

  • Title

1

Murray 708388

Drive Control Assembly (Includes Cable)

$69.99

$

Usually ships in 2-12 days

0

4

Murray 708338

Screw, Hex Washer Head

$6.49

$

Usually ships in 2-12 days

0

6

Murray 709274

Bar, Drive Control

$34.99

$

Usually ships in 2-12 days

0

7

Murray 709237

Nut, Hex Flange Lock

$6.99

$

Usually ships in 2-12 days

0

11

Murray 709393

Wheel & Tire Assembly, Front

$50.99

$

Usually ships in 2-12 days

0

12

Murray 709024

E-Ring
(Superseded to 709760)

$6.49

$

Usually ships in 2-12 days

0

13

Murray 709309

Pinion

$11.99

$

Usually ships in 2-12 days

0

14

Murray 708220

Dust Cover
(Superseded to 707715)

$14.99

$

In Stock, only 1 left!

0

15

Murray 709310

Pawl, Drive

$5.99

$

Usually ships in 2-12 days

0

16

Murray 709410

Washer, Flat 3/8

$7.49

$

Usually ships in 2-12 days

0

17

Murray 708424

Bearing, Wheel Adjuster

$14.99

$

Usually ships in 2-12 days

0

18

Murray 709451

Selector Knob

$9.49

$

Usually ships in 2-12 days

0

25

Murray 708658

Belt Keeper

$3.99

$

Usually ships in 2-12 days

0

26

Murray 709115

Screw, Hi-Lo Thread, #12 x 5/8

$4.99

$

Usually ships in 2-12 days

0

27

Murray 709172

Pan Head Tapping Screw #10-24 x 2-3/4

$12.99

$

Usually ships in 2-12 days

0

28

Murray 708621

Drive Cover

$23.99

$

Usually ships in 2-12 days

0

29

Murray 709321

Locknut, Hex

$9.99

$

Usually ships in 2-12 days

0

32

Murray 708234

Drive Pulley
(Superseded to 709383)

$21.99

$

In Stock, only 1 left!

0

33

Murray 708290

V-Belt

$33.99

$

Usually ships in 2-12 days

0

35

Murray 708457

Kit, Wheel Adjuster, LH (Includes Knob & Bearing)

$61.99

$

Usually ships in 2-12 days

0

36

Murray 708375

Gear Case Assembly, Complete

$95.99

$

Usually ships in 2-12 days

0

38

Murray 709432

Locknut, Hex 1/4-20
(Superseded to 705713)

$5.99

$

Usually ships in 2-12 days

0

40

Murray 709314

Spring

$6.49

$

Usually ships in 2-12 days

0

41

Murray 708458

Kit, Wheel Adjuster, RH (Includes Knob & Bearing)

$61.99

$

Usually ships in 2-12 days

0

54

Murray 708453

Grassbag Assembly

$59.99

$

Usually ships in 2-12 days

0

57

Murray 708400

Frame, Grassbag

$122.99

$

Usually ships in 2-12 days

0
