22P65H10X8A (96117001604) - Murray 22" Walk-Behind Mower (2010) Deck Group (96117001604) Parts Diagram

22" Walk-Behind Mower

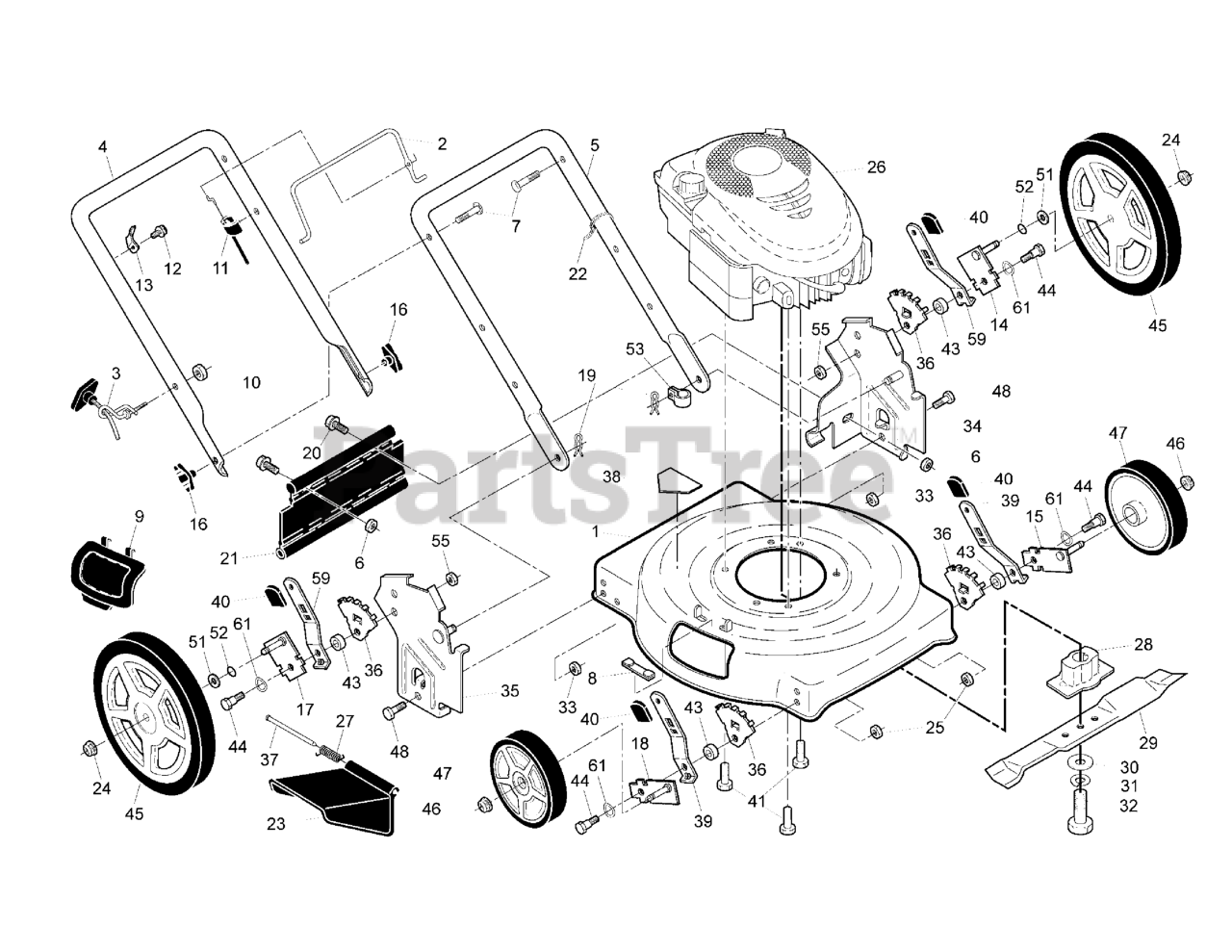

Deck Group (96117001604) Parts Diagram

  • Title

1

Murray 708185

Lawn Mower Housing

Note: (Includes Key Number 38)

$296.99

$

Usually ships in 2-12 days

0

2

Murray 709273

Control Bar

$

$

Not available

3

Murray 709279

Rope Guide

$35.99

$

Usually ships in 2-12 days

0

4

Murray 709384

Upper Handle

$85.99

$

Usually ships in 2-12 days

0

5

Murray 708680

Lower Handle

$185.99

$

Usually ships in 2-12 days

0

6

Murray 709432

Locknut, Hex 1/4-20
(Superseded to 705713)

$5.99

$

Usually ships in 2-12 days

0

7

Murray 709234

Handle Bolt 5/16-18

$7.49

$

Usually ships in 2-12 days

0

8

Murray 708170

Clip, Closeout

$

$

Not available

9

Murray 708691

Mulcher Plate

$

$

Not available

10

Murray 709054

Nut, Hex 1/4-20

$4.99

$

Usually ships in 2-12 days

0

11

Murray 709382

Engine Zone Control Cable

$41.99

$

In Stock, only 2 left!

0

12

Murray 709195

Hex Washer Head Screw #10-24 x 1/2

$4.49

$

Usually ships in 2-12 days

0

13

Murray 709368

Up-Stop Bracket
(Superseded to 707659)

$9.99

$

In Stock, only 1 left!

0

14

Murray 709302

Axle Arm Assembly, Rear, LH

$16.99

$

Usually ships in 2-12 days

0

15

Murray 709300

Axle Arm Assembly, Front, LH

$

$

Not available

16

Murray 709219

Handle Knob

$7.49

$

In Stock, only 2 left!

0

17

Murray 709303

Axle Arm Assembly, Rear, RH

$13.99

$

Usually ships in 2-12 days

0

18

Murray 709301

Axle Arm Assembly, Front, RH

$16.99

$

Usually ships in 2-12 days

0

19

Murray 709387

Hairpin Cotter

$9.99

$

Usually ships in 2-12 days

0

20

Murray 709438

Screw, Hex Cap Head 1/4-20

$6.49

$

Usually ships in 2-12 days

0

21

Murray 708404

Rear Defl ector

$45.99

$

In Stock, only 2 left!

0

22

Murray 709409

Wire Tie

$6.99

$

In Stock, only 1 left!

0

23

Murray 708168

Discharge Guard

$32.99

$

Usually ships in 2-12 days

0

24

Murray 409149

Nut, Hex, Flangelock 3/8-16

Note: (This part is not serviced by Briggs & Stratton.)

$4.99

$

In Stock, Qty 20+

0

25

Murray 709354

Nut, Hex, Flangelock 5/16-18

$8.99

$

Usually ships in 2-12 days

0

26

Murray 124T02-6626-H1

* ENGINE, Briggs & Stratton

Note: ( Engine Model: 124T02-6626-H1 )

$

$

Currently unavailable

27

Murray 708393

Torsion Spring

$19.99

$

In Stock, Qty 10

0

28

Murray 709333

Blade Adapter

$21.99

$

Usually ships in 2-12 days

0

29

Murray 708070

22" Blade

$36.99

$

In Stock, only 1 left!

0

30

Murray 709448

Hardened Washer

$9.99

$

In Stock, only 4 left!

0

31

Murray 705316

Helical Lockwasher 3/8

$5.49

$

In Stock, only 1 left!

0

32

Murray 709449

Screw, Hex Head, Grade 8, 3/8-24 x 1-3/8

$9.99

$

In Stock, only 1 left!

0

33

Murray 705350

Nut, Hex, Nylock 5/16-18

$5.99

$

Usually ships in 2-12 days

0

34

Murray 708598

Wheel Bracket Support, LH

$34.99

$

Usually ships in 2-12 days

0

35

Murray 708597

Wheel Bracket Support, RH

$34.99

$

Usually ships in 2-12 days

0

36

Murray 708661

Wheel Bracket Adjuster

$8.99

$

Usually ships in 2-12 days

0

37

Murray 708169

Hinge Rod

$

$

Not available

38

Murray 708373

Danger Decal
(Superseded to 709792)

$10.99

$

Usually ships in 2-12 days

0

39

Murray 709304

Selector Spring, Front

$12.99

$

Usually ships in 2-12 days

0

40

Murray 709451

Selector Knob

$9.49

$

Usually ships in 2-12 days

0

41

Murray 709093

Screw, Hex Head, Threaded, Rolled 3/8-16 x 1
(Superseded to 709443)

$8.49

$

Usually ships in 2-12 days

0

43

Murray 709305

Spacer

$10.99

$

Usually ships in 2-12 days

0

44

Murray 709307

Shoulder Bolt 5/16-18

$7.99

$

In Stock, Qty 5

0

45

Murray 709395

Wheel & Tire Assembly, Rear, 12"

$63.99

$

In Stock, only 1 left!

0

46

Murray 709321

Nut, Hex, Flangelock 3/8-16

$9.99

$

Usually ships in 2-12 days

0

47

Murray 708613

Wheel & Tire Assembly, Front, 8"

$31.99

$

Usually ships in 2-12 days

0

48

Murray 708501

Bolt, Hex Head 5/16-18

$7.49

$

Usually ships in 2-12 days

0

51

Murray 709452

Washer, Flat 3/8

$6.99

$

Usually ships in 2-12 days

0

52

Murray 709288

O-Ring

$7.49

$

Usually ships in 2-12 days

0

53

Murray 709289

Clip, Cable

$7.49

$

Usually ships in 2-12 days

0

55

Murray 709445

Nut, Hex
(Superseded to 709354)

$8.99

$

Usually ships in 2-12 days

0

59

Murray 709381

Selector Spring, Rear

$9.49

$

Usually ships in 2-12 days

0

61

Murray 709306

Washer, Curved, Cylindrical

$10.99

$

In Stock, only 1 left!

0

--

Murray 708374

Warning Decal (not shown)

$13.99

$

Usually ships in 2-12 days

0

--

Murray 709266

Operator's Manual, English

$9.49

$

Usually ships in 2-12 days

0

--

Murray 709269

Operator's Manual, Spanish

$9.49

$

Usually ships in 2-12 days

0
